3'10" - Aluminum Single Tubing
3'10" - Aluminum Single Tubing
Write a Review
Write a Review
3'10" - Aluminum Single Tubing
View Description & Specifications
sku: 2AST46
- SKU:
- 2AST46
- Weight:
- 3.50 LBS
- Tent Series:
- Frame Tents
Choose Options
24/7 Support
Day or night, our team is just a chat away.
easy installation
Get ready fast with step-by-step instructions!
fast shipping
Most orders ready to ship in 1-2 business days.
Extensive Warranty
Extensive warranty available on most products.
24/7 Support
Day or night, our team is just a chat away.
easy installation
Get ready fast with step-by-step instructions!
fast shipping
Most orders ready to ship in 1-2 business days.
Extensive Warranty
Extensive warranty available on most products.
Overview
Product Description

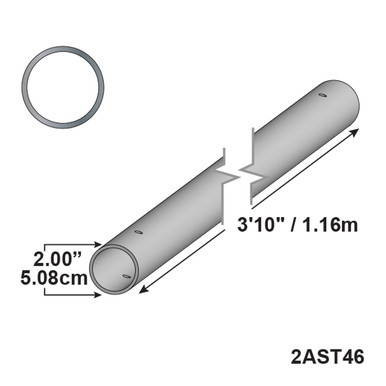

CELINA's West Coast aluminum frame tubing is constructed from 2" aluminum tubing. The tubing measures 2.0" (Outside Diameter) / 1.750" (Inside Diameter) with a wall thickness of 0.125" or 1/8". The aluminum has a strength of 35,000 PSI. This tubing is drilled to accept West Coast frame tent fittings which are pinned in place using R-Pins, Pin & Bail, or bolts. This tubing is color coded for easy identification. The color painted inside this tubing is green.
| Aluminum Single Tube Specifications | ||
| Outside Diameter | 2.0" | |
| Inside Diameter | 1.75" | |
| Wall Thickness | 0.125" | |
| Weight | .0867 lbs/ft | |
| Strength | 35000 PSI | |
Specifications
Width
15ft. / 4.5m
Length
15ft. / 4.5m
Area
225 ft² / 20 m²
Eave Height
7' / 2.13m | 8' / 2.4m
Overall Height
11'4" / 3.45m | 12'4" / 3.8m
Pitch
3'6" / 1.07m
Complete Weight Aluminum
210 Lbs. / 95 Kg. | 215 Lbs. / 98 Kg.
Complete Weight Galvanized
232 Lbs. / 105 Kg. | 238 Lbs. / 108 Kg.
Series / Brand
Classic
Class
Pole
Center Pole
Yes
Style / Shape
Traditional
Expandable
No
Custom Printing Available
Yes
Fabric Material
PVC Coated Polyester
Fabric Material Weight
16 oz. / yd2 / 540 gsm
Fabric Translucency
Blockout
Water Repellency
Waterproof
Flame Resistant
Yes
UV Resistant
Yes
Mold and Mildew Resistant
Yes
Frame / Pole Material
Aluminum OR Galvanized
Longest Component
7'10"/ 2.4m | 8'10" / 2.7m
Persons required for setup
2
Occupancy
23 Sit Down Dinner - 38 Cathedral Seating
Literature
Warranty
CELINA guarantees this product to be free from defects in materials and workmanship 1 year from the date of purchase. Limitations apply. Review the Product Manual for more information on the warranty.
If a printing option is chosen. The following warranty will apply to printing:
Inks used in CELINA’s manufacturing processes are made with commercial grade pigments designed to resist color fading for 2 years. Colorfastness will vary depending on the products exposure to direct sunlight.
