4 Way Crown

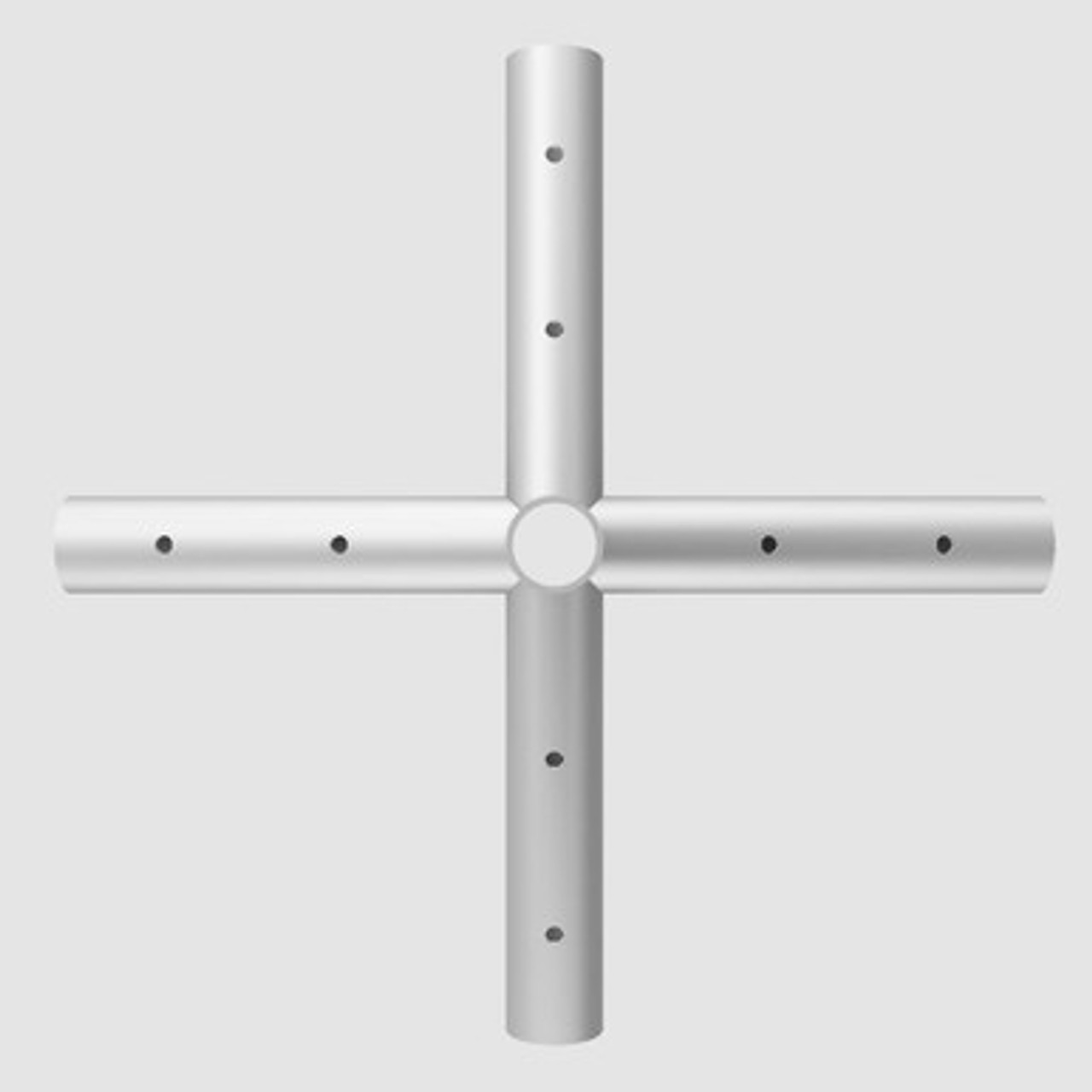

4 Way Crown Fitting for Classic Frame Tent Systems

The 4 Way Crown is a central frame tent fitting designed to connect four frame components at a single intersection point within Classic Frame tent systems. Built for event rental companies and professional install crews, this fitting plays a key role in maintaining structural alignment and distributing load evenly across the tent frame during setup and use.

Positioned at key connection points within the structure, the 4 way crown fitting allows multiple rafters or spreaders to join securely, forming a stable and balanced framework. Manufactured from durable steel and designed for repeated use, this component supports efficient tent installation while helping crews maintain consistent performance across large and modular frame tent setups.

Why This Fitting Matters

In any frame tent system, central connection points are critical for maintaining strength and alignment. The 4 Way Crown ensures that intersecting frame components remain properly secured, reducing the risk of shifting or misalignment during setup, use, and teardown. By distributing loads evenly across connected sections, this fitting helps improve the overall durability and reliability of the structure.

For installation crews, using the correct crown fitting simplifies assembly and ensures compatibility within the frame system. This results in faster setup, fewer adjustments, and a more consistent finished structure across repeated installations.

Key Features

• Connects four frame components at a single intersection point
• Designed for use within Classic Frame tent systems
• Provides central support for rafters and spreaders
• Helps maintain structural alignment and load distribution
• Constructed from durable steel for long-term use
• Supports efficient tent installation and teardown workflows
• Built for repeated use in rental and event environments
• Essential component for maintaining frame integrity in larger structures

How to Use and Install

1. Identify the Connection Point

Locate the area within the frame where four components intersect. This is typically within the central structure of the tent where load distribution is required.

2. Attach Frame Components

Slide each rafter or spreader pole into the corresponding openings of the 4 way crown fitting. Ensure all components are properly aligned before securing.

3. Secure with Pins

Align connection holes and insert the appropriate pins to lock each component into place. Confirm that all connections are tight and stable.

4. Verify Structural Alignment

Check that all connected frame sections are evenly aligned before continuing with the rest of the tent installation. Proper alignment at this stage ensures better overall performance.

Specifications

• Component Type: 4 way crown fitting
• Material: Steel construction
• Function: Connects four frame components at a central intersection
• Compatibility: Classic Frame tent systems
• SKU: F02CRWN4

Compatibility and Important Notes

• Designed for use with Classic Frame tent systems
• Functions as a connection fitting, not a standalone structural component
• Used at central intersection points within the frame
• Ensure compatibility with matching frame tubing before installation
• Pins and additional frame components are not included unless specified

Ideal For

• Event rental companies maintaining frame tent inventory
• Replacement or repair of worn or damaged crown fittings
• Professional tent installation and teardown operations
• Large frame tent systems requiring stable central connections
• Crews focused on safe, efficient, and repeatable setup workflows
