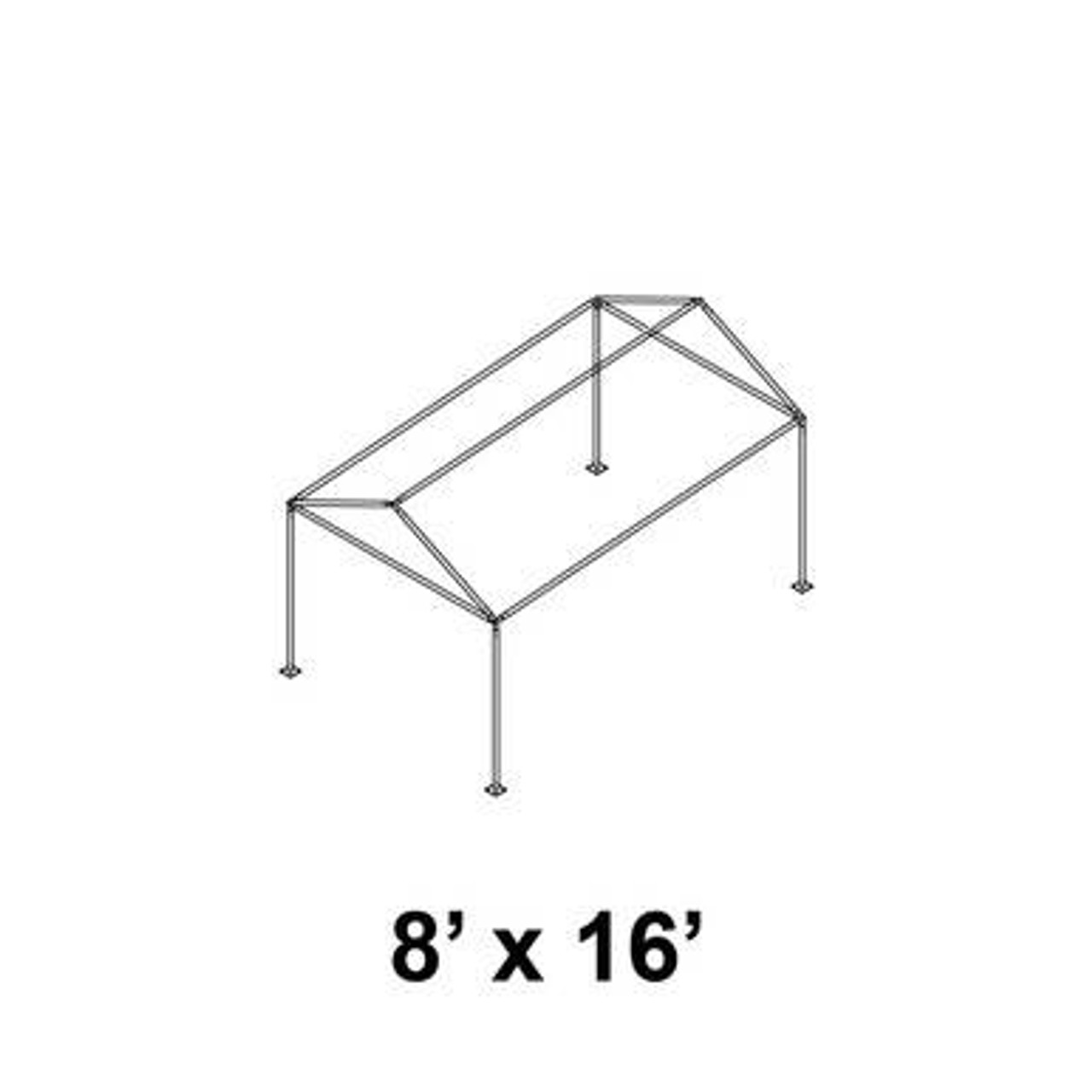

8' x 16' Gable Series Frame

8' x 16' Gable Series Frame

The 8' x 16' Gable Series Frame is a specialized commercial-grade hardware system designed to create a distinct, house-style architectural profile for compact or narrow event spaces. For rental companies and boutique planners, this frame serves as the essential structural skeleton required to support a 128-square-foot gable-ended canopy. Unlike traditional hip-roof frames that slope on all four sides, the Gable Series features vertical triangular end-caps. This design provides a flat, prominent surface at each end, making it the premier choice for high-visibility branding, custom signage, or creating a seamless, flush connection against building facades and narrow storefronts. This kit includes all the necessary aluminum rafters, spreaders, and heavy-duty steel fittings required to maintain a rigid 16-foot span, providing a stable and professional event setup.

The Gable Series is engineered to provide an open, airy feel with a consistent ridge height, offering more interior volume at the ends than a standard frame tent of similar size. Because this is a frame-supported system, it does not require center poles, maximizing the 128 square feet of usable space for registration desks, narrow food service stations, or VIP entryways. This hardware is optimized for tent installation on various surfaces, including concrete, decks, and asphalt, where staking may be limited. This frame is precisely calibrated to ensure the correct pitch for water runoff while maintaining the sharp, clean lines required for modern logistics and rental operations.

Why the 8' x 16' Gable Series Frame Matters

The 8' x 16' Gable Series Frame matters because it offers a unique functional solution for restricted footprints. For businesses and rental companies, the vertical gable ends provide a superior canvas for high-impact graphics or customized maintenance-friendly vinyl. Structurally, the 8-foot width is specifically designed for narrow spaces such as sidewalks, alleyways, or small patio extensions where a standard 10-foot tent would be too wide. For logistics teams, the standardized West Coast Style tubing lengths ensure that the frame can be easily integrated into existing inventories, simplifying warehouse workflows and ensuring rapid deployment for specialized urban events.

Key Features

• Clear-Span Design: Provides a completely open 8' x 16' interior with no center poles, maximizing space for equipment and guest flow.
• Gable-End Architecture: Features vertical end-caps that offer a unique aesthetic and a prime surface for custom branding and signage.
• High-Strength Aluminum Tubing: Manufactured from corrosion-resistant, structural-grade 6061-T6 aluminum for long-term durability in the rental industry.
• Interchangeable Components: Designed to work with standard West Coast Style fittings, allowing for easy teardown and component replacement.
• Heavy-Duty Steel Fittings: Features welded steel joints with a zinc-plated finish to prevent rust and ensure structural integrity.
• Versatile Mounting Options: Can be secured with stakes, water barrels, or concrete weights, making it suitable for almost any urban venue.

Specifications

Ideal for / Best Uses

• Sidewalk Sales & Promotions: The 8-foot depth is perfect for retail displays that must remain within municipal sidewalk limits.
• Narrow Entrance Awnings: Creates a sophisticated, house-like portal for boutique hotels or red-carpet events in tight urban spaces.
• Alleyway Hospitality: Transform narrow outdoor passages into sheltered dining or bar areas with a professional look.
• Branded Information Booths: The vertical ends allow for maximum visibility for corporate logos at festivals or community markets.

Compatibility and Inclusions

The 8' x 16' Gable Series Frame is specifically engineered for Gable Series vinyl tops. It utilizes standard aluminum tubing and is compatible with most standard West Coast Style base plates and anchoring hardware. Please note that this product includes the metal frame only; it does NOT include the vinyl tent top, side curtains, or anchoring equipment. For a secure event setup, proper anchoring is mandatory regardless of surface type to prevent wind lift. During maintenance, inspect all spring buttons and welded joints to ensure the continued safety and structural longevity of your 16-foot gable inventory.
