Product Description

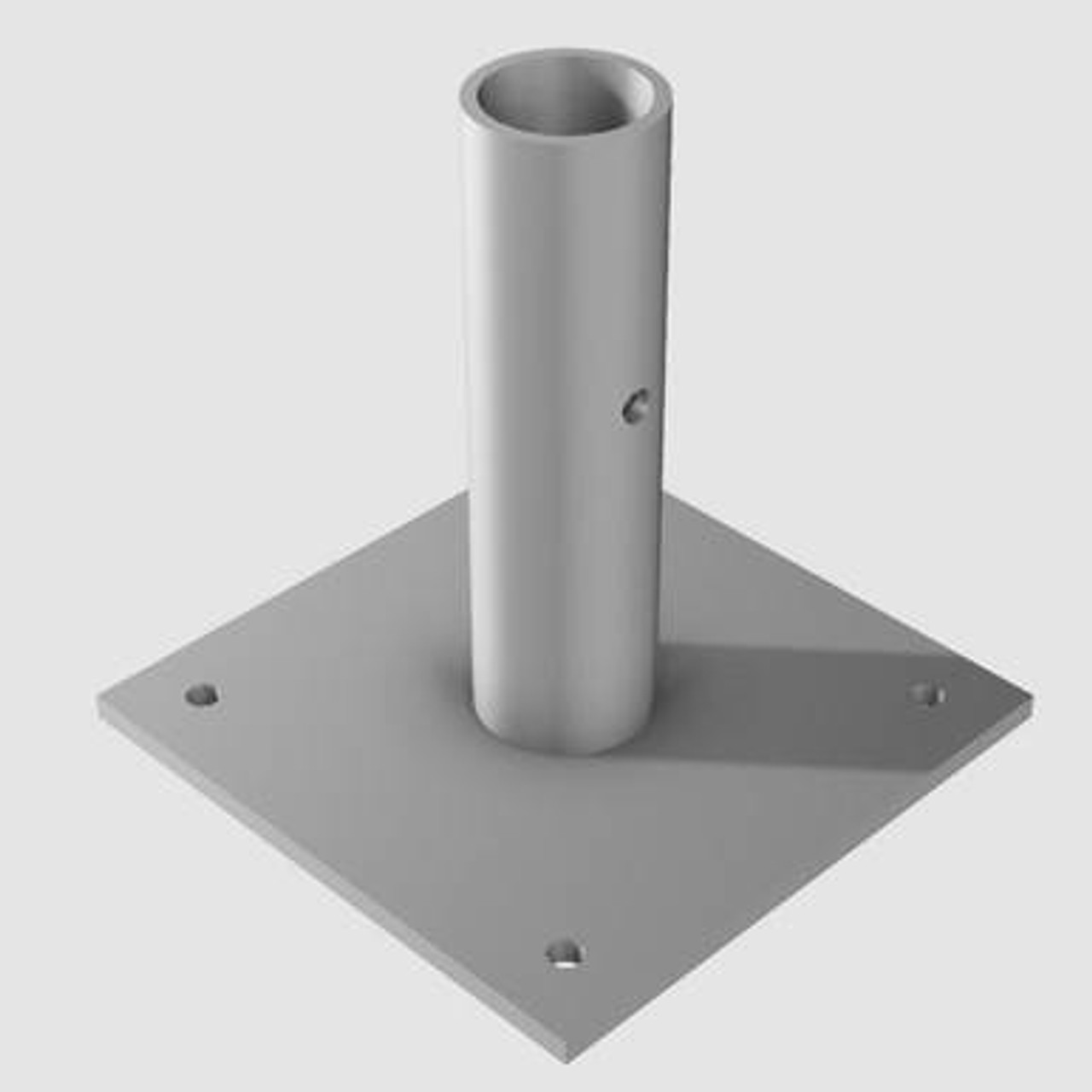

Base Plate (Standard)
A Base Plate fitting is used in all standard frame tent systems (with the exception of the Master Series Frame Tent) to prevent the legs or uprights tubing from sinking. The plate has a protrusion that the leg slides onto and is secured in place with a pin fastener. Each West Coast Style Frame Tent Fitting is manufactured from 1.25" schedule 40 steel pipe and finished with zinc plating.
| Steel Specifications | |||
| Outside Diameter | 1.656" | 4.206 cm | |
| Inside Diameter | 1.38" | 3.505 cm | |
| Wall Thickness | 0.14" | 3.56 mm | |
| Weight | 3 lbs. | 1.36 kg | |
| Strength | 45,000 PSI | 3,163.81 kgf/cm2 | |
