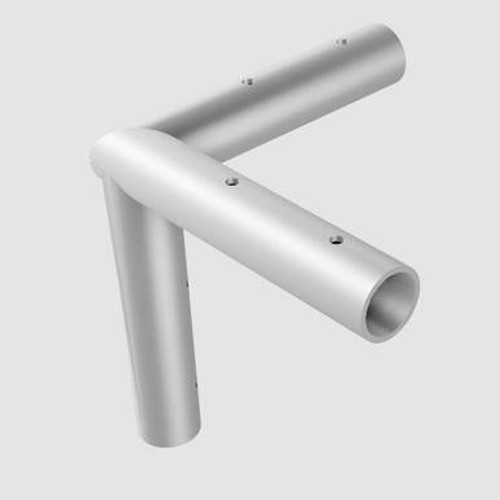

Corner Fitting

Corner Fitting for Classic Frame Tents

The Corner Fitting is a critical structural component used in Classic Frame tent systems to connect key frame elements at each corner of the tent. Designed for West Coast style frame tents, this fitting links the leg tubing, perimeter spreaders, and hip rafters to create a stable and properly aligned frame structure.

Built for event rental companies and installation crews, this frame tent corner fitting supports consistent tent installation and reliable performance across repeated setups. Whether you are replacing a worn component or building out a complete frame system, this fitting plays a key role in maintaining structural integrity and ensuring all frame sections connect securely.

Why This Corner Fitting Matters

In any frame tent system, the corner connection points handle multiple structural loads. A properly manufactured corner fitting ensures that all connected components remain aligned and secure during setup, use, and teardown. This improves overall frame stability, reduces installation issues, and helps extend the life of your tent system.

Using the correct fitting also ensures compatibility with standard frame tent components, allowing crews to maintain efficient workflows without modifying parts or forcing connections during installation.

Key Features

• Designed for West Coast style Classic Frame tents
• Connects leg tubing, perimeter spreaders, and hip rafters at each corner
• Manufactured from 1.25" schedule 40 steel pipe for strength and durability
• Zinc-plated finish helps resist corrosion and weather exposure
• Supports consistent alignment across the frame during tent installation
• Built for repeated use in rental and event environments
• Essential component for maintaining structural integrity of frame tents
• Compatible with standard frame tent fittings and tubing systems

How to Use and Install

1. Position the Frame Components

Lay out the tent frame parts in their approximate positions. Ensure that all tubing sections and fittings are organized before beginning assembly.

2. Attach the Corner Fitting

Insert the corner fitting into the top of the leg tubing and align it with the hip rafters and spreaders. Proper alignment is essential for maintaining structural stability.

3. Secure with Pins

Slide the frame tubing onto the fitting connections and secure each connection point using the appropriate pins. Ensure all pins are fully inserted to prevent movement during setup.

4. Complete Frame Assembly

Continue connecting the remaining frame components, ensuring all fittings are properly aligned. Once complete, proceed with standard tent installation and anchoring procedures.

Specifications

• Product Type: Corner fitting for frame tents
• Compatibility: West Coast style Classic Frame tent systems
• Material: 1.25" schedule 40 steel pipe
• Finish: Zinc-plated for corrosion resistance
• Outside Diameter: 1.656"
• Inside Diameter: 1.38"
• Wall Thickness: 0.14"
• Weight: 4.5 lbs
• Strength: 45,000 PSI
• SKU: F01COR

Compatibility and Important Notes

• Used in all four corners of a Classic Frame tent system
• Requires four corner fittings per tent
• Designed specifically for West Coast style frame configurations
• This is a replacement or individual component, not a complete frame system
• Ensure compatibility with existing frame tubing and fittings before installation

Ideal For

• Event rental companies replacing worn or damaged fittings
• Frame tent assembly and repair projects
• Install crews maintaining tent inventory and structural components
• Applications requiring reliable corner connections in frame tent systems
• Operations focused on durability and consistent tent installation workflows
