Gable 3 Way Crown

Gable 3 Way Crown for Classic Series Gable Frame Tent Systems

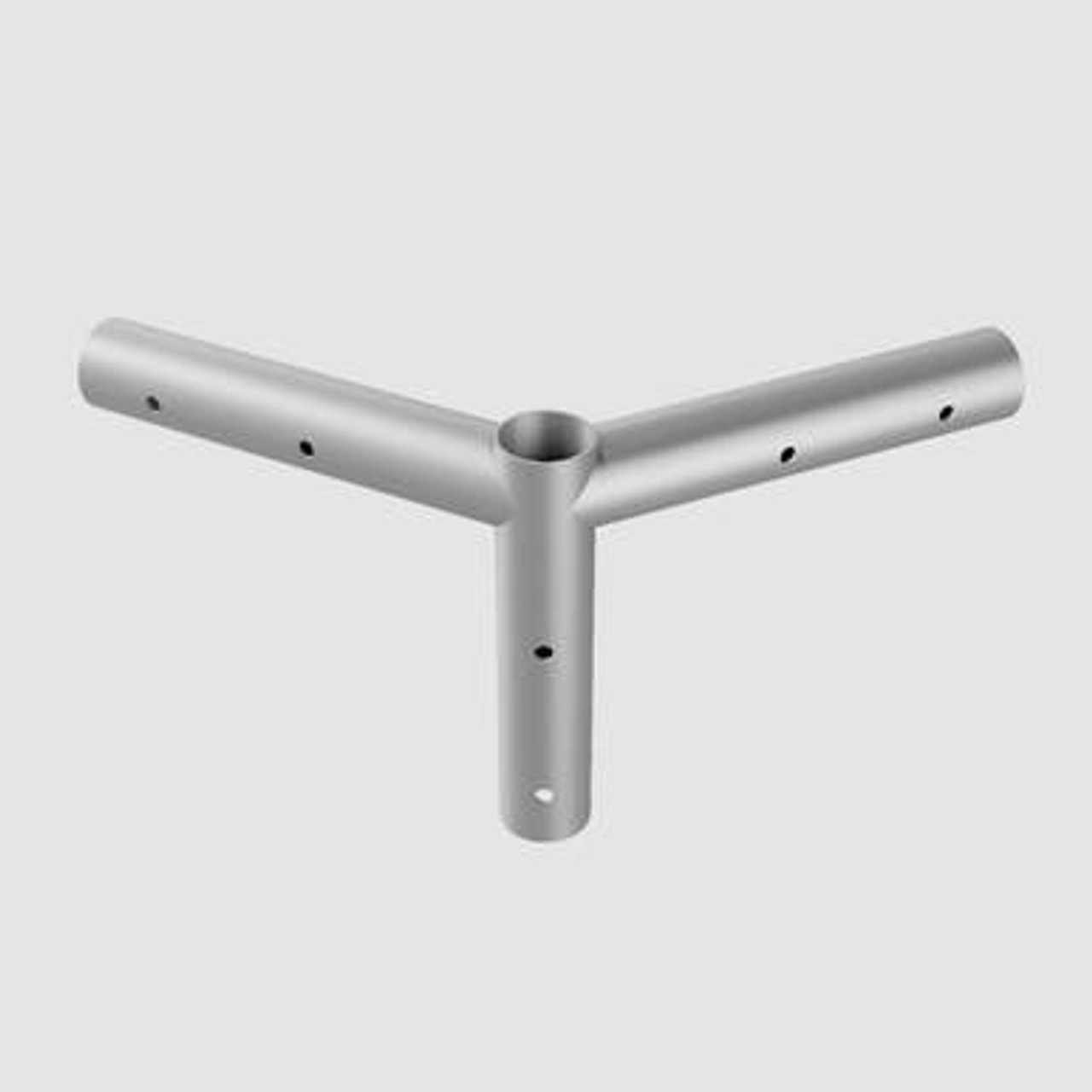

The Gable 3 Way Crown is a specialized frame tent fitting designed for Classic Series gable frame tent systems. Built for professional event rental companies and installation crews, this component is used at the peak of the gable end to connect rafters and maintain the structural shape of the tent. It plays a critical role in ensuring proper alignment, load distribution, and stability during tent installation.

Installed in pairs, the Gable 3 Way Crown sits at the top of each gable end on compatible frame tents. It connects two angled rafters and one horizontal member, forming the upper structure that defines the tent's gable profile. Its durable steel construction and corrosion-resistant finish make it reliable for repeated use in demanding setup and teardown environments.

Why This Gable 3 Way Crown Matters

In gable frame tent systems, the crown fitting is essential for maintaining the correct roof geometry and structural integrity. The Gable 3 Way Crown ensures that rafters meet at the proper angles, allowing the frame to distribute weight evenly across the structure. This improves both stability and performance, especially in larger or more complex tent installations.

For rental operations, having dependable crown fittings reduces downtime and ensures that each tent installation can be completed efficiently and safely, even across repeated use cycles.

Key Features

• Designed for Classic Series gable frame tent systems
• Used in pairs at each gable end for proper structural support
• Connects two angled rafters and one horizontal spreader
• Compatible with tent widths of 8', 10', 12', and 15'
• Manufactured from 1.25 inch schedule 40 steel pipe
• Zinc plated finish helps resist rust and corrosion
• Supports proper frame alignment and load distribution
• Built for repeated use in rental and event environments

How to Use and Install

1. Identify Gable End Placement

Locate the top center position at each gable end of the frame tent where the crown fittings will be installed.

2. Position the Crown Fitting

Orient the Gable 3 Way Crown so that the two angled connections align with the rafters and the horizontal connection points toward the opposite crown.

3. Attach Rafters

Slide the rafter poles onto the angled protrusions. Ensure all connections are properly aligned and secured with appropriate pin fasteners.

4. Connect the Horizontal Member

Attach the horizontal spreader between the two crown fittings. This creates the structural link across the gable end.

5. Complete Frame Assembly

Continue assembling the remaining frame components and verify that all fittings are secure before raising and tensioning the tent.

Specifications

• Fitting Type: Gable 3 Way Crown
• Application: Classic Series gable frame tent systems
• Compatible Tent Widths: 8', 10', 12', and 15'
• Material: Steel construction
• Pipe Type: 1.25 inch schedule 40 steel pipe
• Outside Diameter: 1.656 in
• Inside Diameter: 1.38 in
• Wall Thickness: 0.14 in
• Weight: 4.50 lbs
• Strength: 45000 PSI
• Finish: Zinc plated for corrosion resistance
• SKU: F15G3WC

Compatibility and Important Notes

• Designed specifically for Classic Series gable frame tents
• Must be used in pairs for proper structural support
• Not a standalone component, must be used within a complete frame system
• Ensure compatibility with matching pipe size and frame configuration
• Follow proper installation procedures to maintain frame alignment and safety

Ideal For

• Event rental companies maintaining gable frame tent inventory
• Install crews assembling or repairing gable frame tent systems
• Replacement of worn or damaged crown fittings
• Applications requiring reliable frame alignment and load distribution
• Operations focused on efficient and repeatable tent installation
