Gable 4 Way Crown

Gable 4 Way Crown for Classic Frame Tents

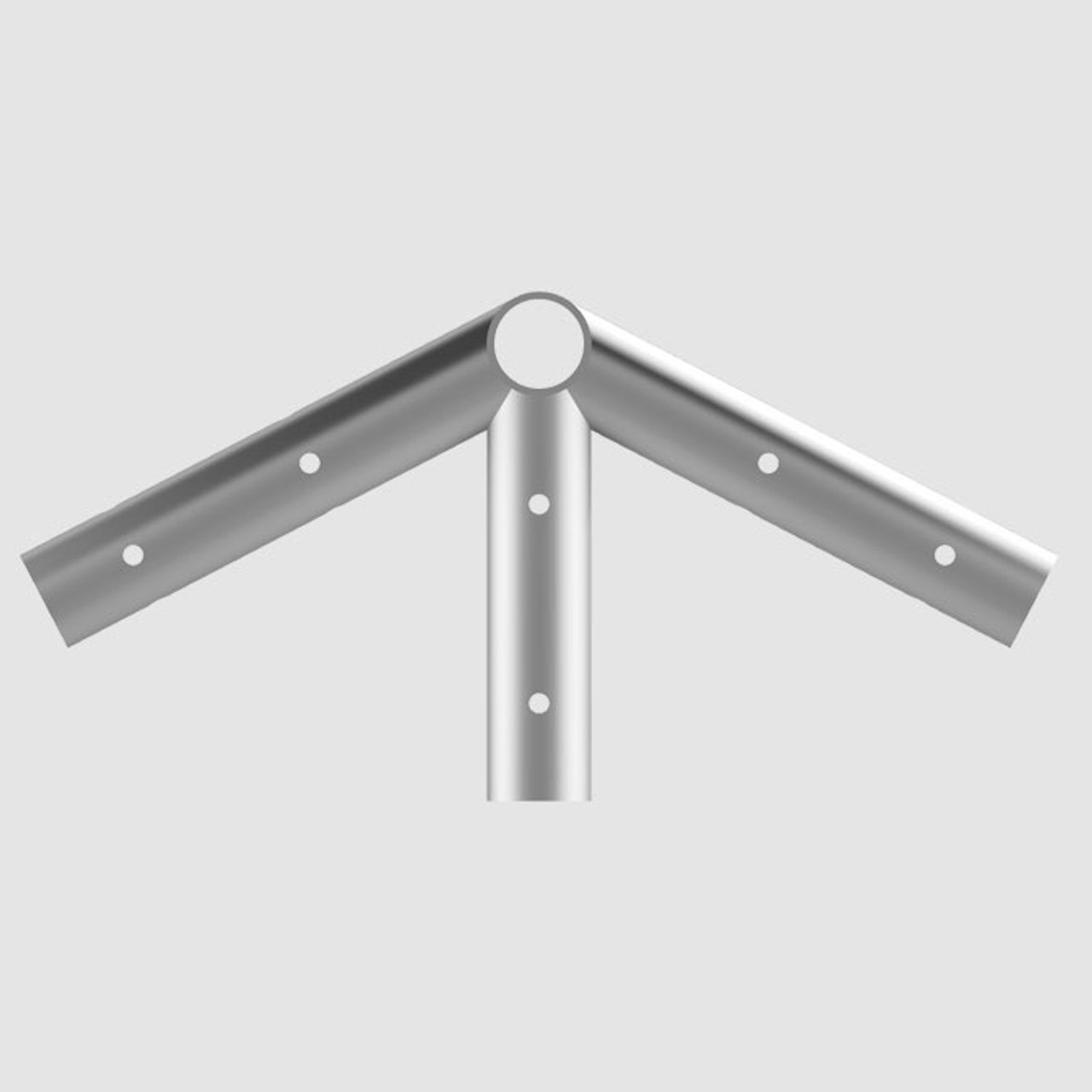

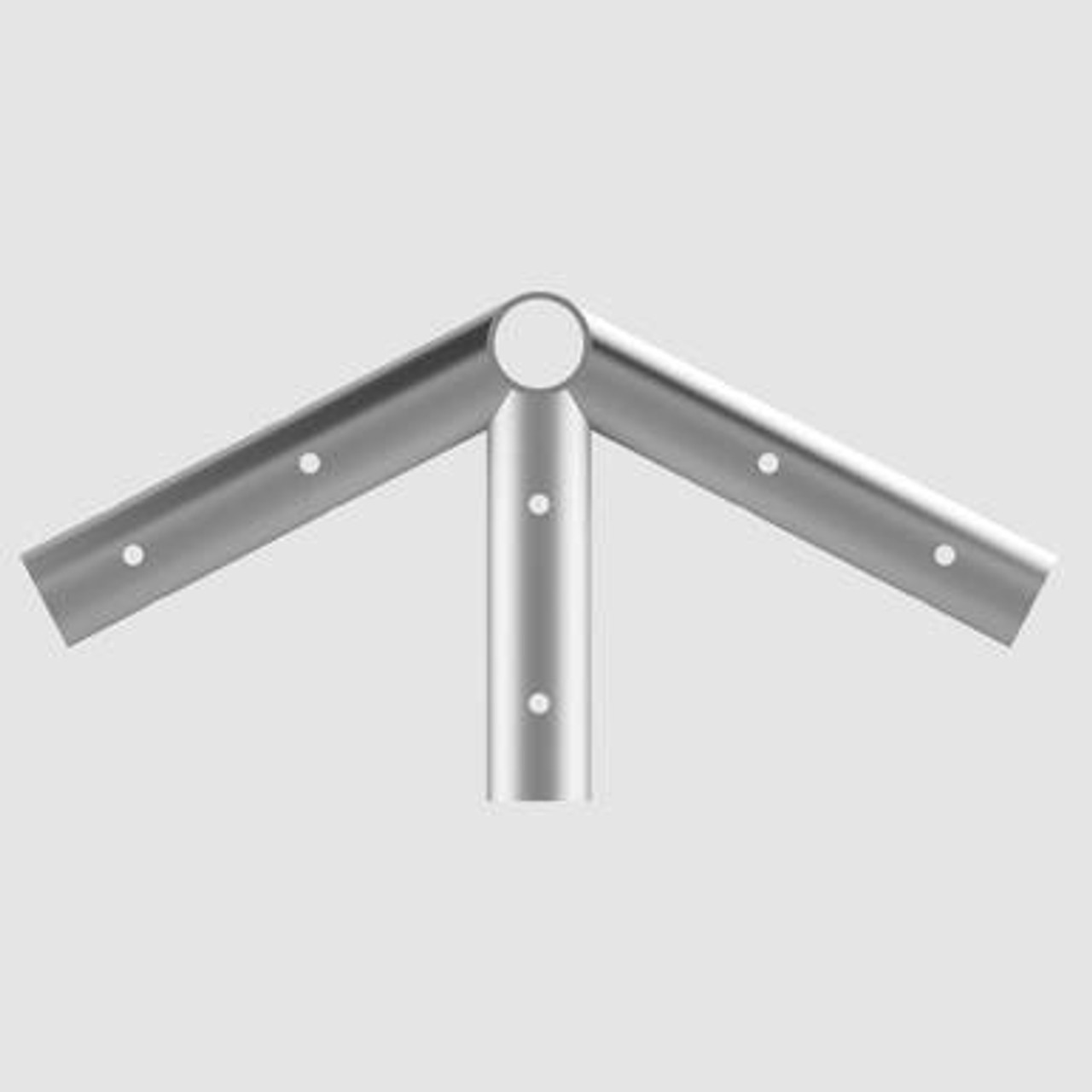

The Gable 4 Way Crown is a structural peak fitting designed for Classic Frame gable-style tent systems. Built for West Coast style frame tents, this fitting connects key frame components at the gable end while also providing support for an additional center leg directly beneath the crown. It is an essential component in maintaining the shape, strength, and alignment of gable frame tent structures.

Used by event rental companies and installation crews, the gable 4 way crown allows for efficient assembly of larger gable frame tents. It connects rafters, spreaders, and adjacent crown fittings while reinforcing the peak area of the structure. Whether you are replacing a worn component or assembling a full frame system, this fitting ensures reliable performance across repeated tent installation cycles.

Why This Gable 4 Way Crown Matters

In gable frame tent systems, the peak is a critical structural point that carries and distributes load across the frame. The gable 4 way crown ensures that all connected components remain properly aligned, helping reduce stress on the frame and improving overall stability. The added vertical protrusion allows for a center support leg, which further strengthens the structure in larger or wider tent configurations.

For long-span or high-capacity setups, this fitting helps crews maintain consistent tension and alignment during both setup and teardown, improving workflow efficiency and reducing installation issues.

Key Features

• Designed for West Coast style Classic Frame gable tents
• Includes four horizontal protrusions for connecting rafters and spreaders
• Features an additional vertical protrusion for a center support leg
• Connects to gable corner fittings, flat tee fittings, and opposite crown fittings
• Supports extended tent widths including 20', 30', and 40' systems
• Manufactured from 1.25" schedule 40 steel pipe for durability
• Zinc-coated finish helps resist rust and corrosion
• Designed for repeated use in rental and event environments

How to Use and Install

1. Position Frame Components

Lay out the tent frame and identify the gable end where the crown will be installed. Ensure all rafters, spreaders, and related fittings are organized before assembly.

2. Attach Rafters and Spreaders

Connect the rafters and spreaders to the horizontal protrusions of the gable crown. Align each connection point carefully to ensure proper fit and structural alignment.

3. Install Center Support Leg

Insert the vertical support leg into the downward protrusion of the crown. This additional leg provides reinforcement at the gable peak and improves load distribution.

4. Secure All Connections

Insert pin fasteners through the aligned holes to lock all tubing in place. Ensure all connections are fully secured before proceeding.

5. Complete Frame Assembly

Continue assembling the remaining frame components and proceed with standard tent installation, including anchoring and tensioning.

Specifications

• Product Type: Gable 4 way crown fitting
• Compatibility: West Coast style Classic Frame gable tent systems
• Material: 1.25" schedule 40 steel pipe
• Finish: Zinc-coated for corrosion resistance
• Outside Diameter: 1.656"
• Inside Diameter: 1.38"
• Wall Thickness: 0.14"
• Weight: 5.0 lbs
• Strength: 45,000 PSI

Compatibility and Important Notes

• Used in gable-style Classic Frame tent systems
• Commonly installed at gable ends of 20', 30', and 40' wide tents
• Requires a center support leg for full functionality
• This is a replacement or individual component, not a complete frame system
• Ensure compatibility with existing tubing and fittings before installation

Ideal For

• Event rental companies maintaining gable frame tent inventory
• Large-scale gable tent installations requiring reinforced peak support
• Frame tent repair and replacement projects
• Install crews focused on structural stability and efficient workflows
• Applications requiring strong, reliable gable end connections
