Ridge Crown

Ridge Crown for Classic Frame Tents

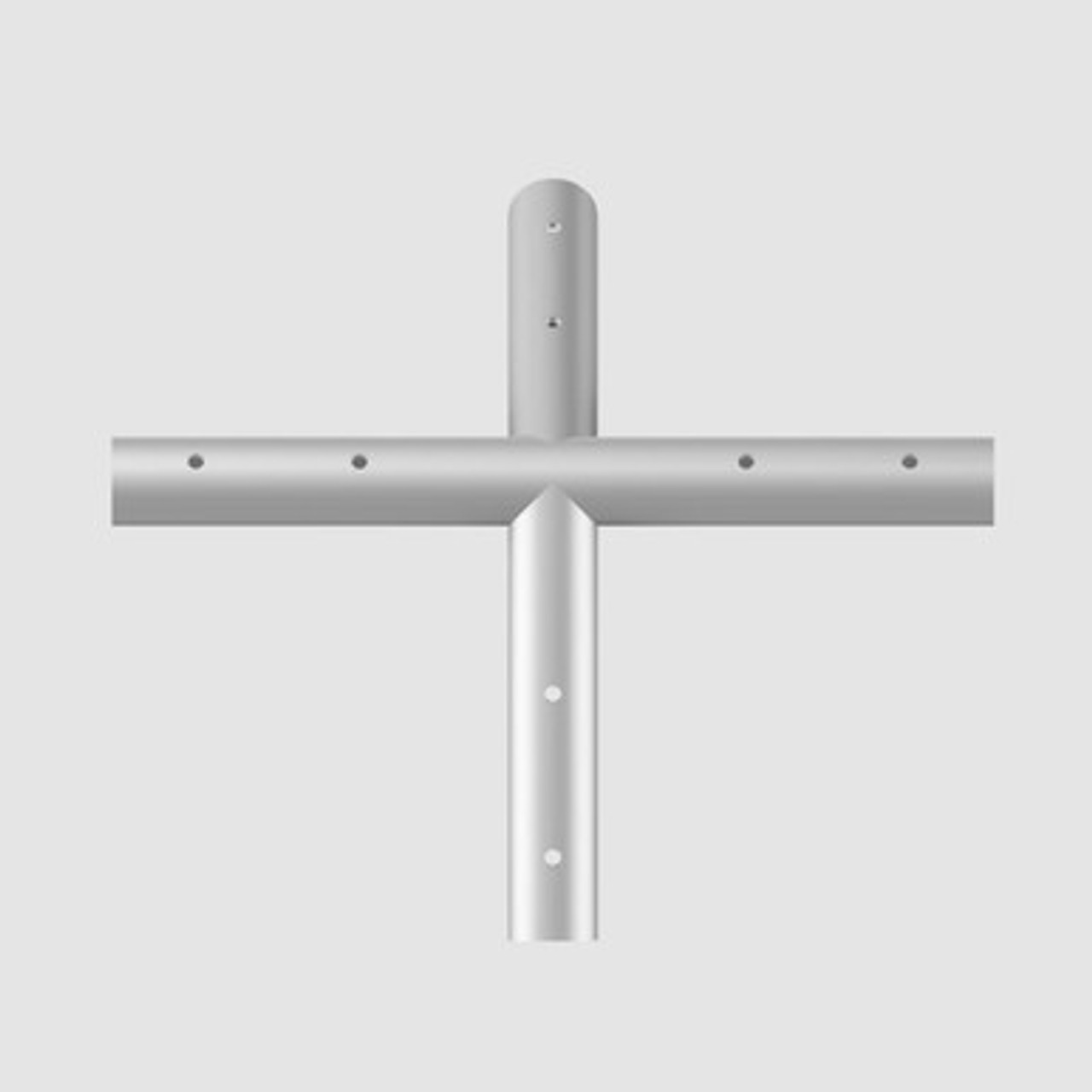

The Ridge Crown is a key structural fitting used in Classic Frame tent systems to connect ridge or top spreader tubing along the center of the tent frame. Designed for rectangular West Coast style frame tents, this component allows crews to extend the peak line of the structure while maintaining proper alignment and load distribution across the frame.

For event rental companies and installation crews, the ridge crown plays a critical role in large and extended tent installations. It enables multiple ridge spreaders to connect securely, supporting longer tent spans without compromising structural integrity. Whether used as a replacement part or as part of a new frame build, this fitting helps ensure consistent and reliable tent installation performance.

Why This Ridge Crown Matters

In frame tent systems, the center ridge is responsible for maintaining the overall shape and tension of the structure. A properly designed ridge crown ensures that top spreaders connect securely and remain aligned throughout setup, use, and teardown. This improves structural stability, reduces stress on connected components, and helps maintain a clean, professional appearance.

For longer tents that require multiple ridge connections, this fitting allows crews to extend the frame efficiently without introducing weak points or misalignment during installation.

Key Features

• Designed for West Coast style Classic Frame tents
• Connects ridge or top spreader tubing along the center of the frame
• Supports extended tent lengths requiring multiple ridge connections
• Includes protrusions that connect to 3-way or 6-way crown fittings
• Additional angled connections link to side tee fittings along the perimeter
• Manufactured from 1.25" schedule 40 steel pipe for durability
• Zinc-plated finish helps resist corrosion and wear
• Designed for repeated use in rental and event environments

How to Use and Install

1. Position Frame Components

Lay out the frame structure and identify the center ridge line where the ridge crown will be installed. Ensure all spreaders and crown fittings are organized before assembly.

2. Connect Ridge Spreaders

Attach the ridge crown between two compatible crown fittings. Slide the ridge spreader tubing onto the protrusions and align the connection points for proper fit.

3. Secure Connections

Insert pins through the aligned holes to secure the spreaders to the ridge crown. Ensure all connections are fully seated to prevent movement during setup.

4. Attach Side Connections

Connect the angled protrusions from the ridge crown to side tee fittings along the perimeter. This helps distribute load evenly across the frame.

5. Complete Frame Assembly

Continue assembling the remaining frame components and proceed with standard tent installation, including anchoring and tensioning.

Specifications

• Product Type: Ridge crown fitting
• Compatibility: West Coast style Classic Frame tent systems
• Material: 1.25" schedule 40 steel pipe
• Finish: Zinc-plated for corrosion resistance
• Outside Diameter: 1.656"
• Inside Diameter: 1.38"
• Wall Thickness: 0.14"
• Weight: 5.50 lbs
• Strength: 45,000 PSI
• SKU: F08RC

Compatibility and Important Notes

• Used in rectangular Classic Frame tent systems requiring multiple ridge connections
• Connects between 3-way or 6-way crown fittings
• This is a replacement or individual component, not a complete frame system
• Ensure compatibility with existing frame tubing and fittings before installation
• Proper pinning and alignment are required for safe and stable setup

Ideal For

• Event rental companies maintaining frame tent inventory
• Long-span tent installations requiring extended ridge connections
• Frame tent repair and replacement projects
• Install crews focused on efficient and consistent tent setup workflows
• Applications requiring strong, reliable center frame connections
