Square Corner Fitting

Square Corner Fitting for West Coast Style Frame Tent Systems

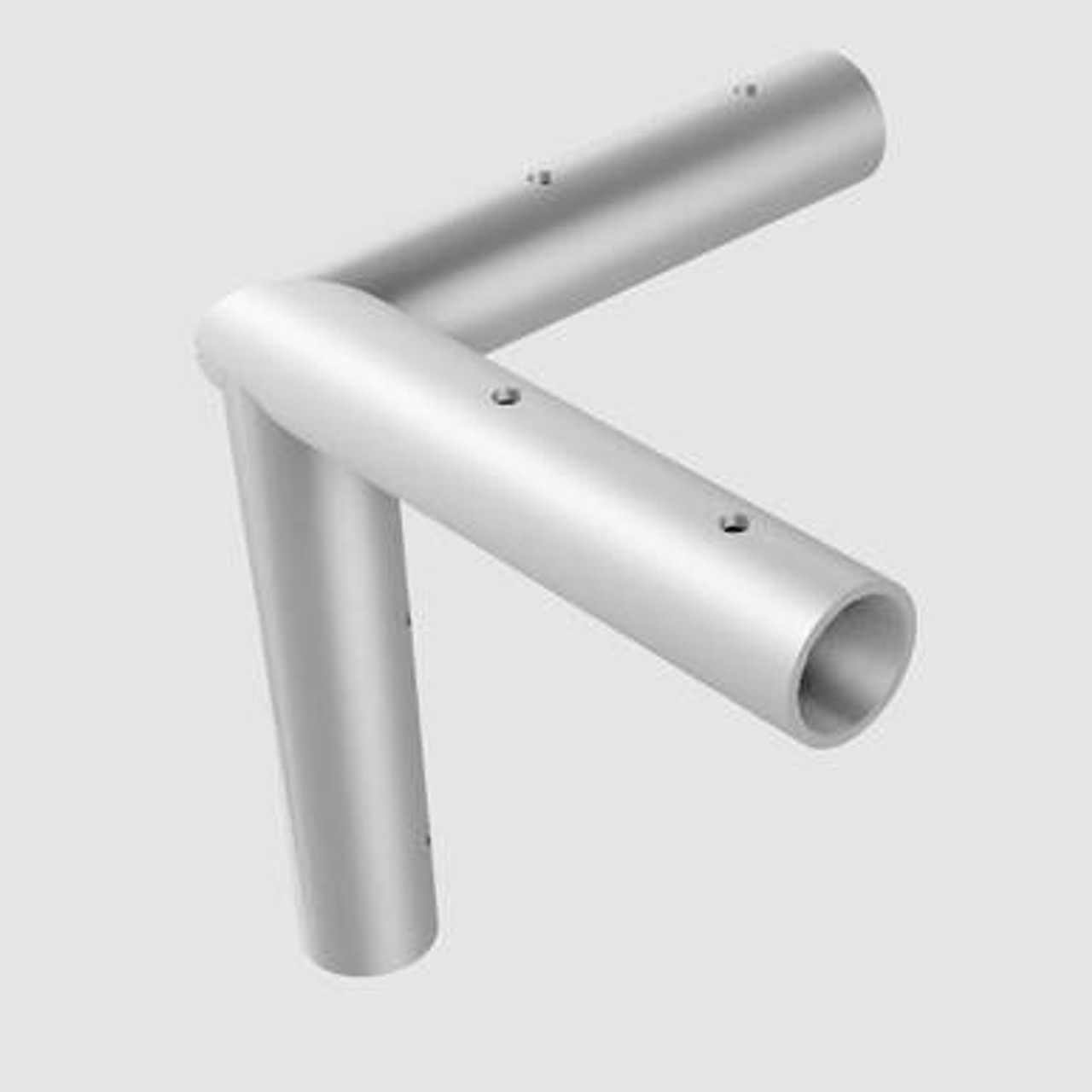

The Square Corner Fitting is a versatile frame tent connector designed for West Coast Style frame tent systems, allowing crews to create square corners, custom layouts, and reinforced frame configurations. Built for professional event rental companies and installation crews, this fitting provides a reliable connection point for multiple frame components while maintaining structural alignment during tent installation.

Featuring three protruding connection points, this fitting is commonly used to form corner transitions or unique frame extensions such as shade overhangs and custom structures. It integrates directly with compatible tubing and standard frame tent fittings, making it a practical solution for expanding layout flexibility without compromising stability.

Why This Square Corner Fitting Matters

In modular tent systems, flexibility is key. The Square Corner Fitting allows crews to go beyond standard layouts by creating custom frame configurations while maintaining structural integrity. Whether you are extending a tent footprint, adding a covered walkway, or reinforcing a banner frame, this fitting supports efficient setup and consistent performance.

For rental operations, having adaptable components like this reduces the need for specialized inventory while enabling more creative and scalable event setups.

Key Features

• Designed for West Coast Style frame tent systems
• Features three protruding connections to form square corners or custom layouts
• Compatible with standard frame tent tubing and fittings
• Includes drilled holes for pin fasteners to secure connections
• Constructed from 1.25 inch schedule 40 steel pipe for durability
• Zinc coated finish helps resist corrosion and wear
• Supports custom frame configurations such as overhangs and extensions
• Designed for repeated use in rental and event environments

How to Use and Install

1. Determine Placement

Identify where the square corner fitting will be used within the frame layout. This may include creating a corner transition, extending a structure, or building a custom configuration.

2. Position the Fitting

Align the three protruding ends with the corresponding frame tubing. Ensure each connection point matches the intended layout direction.

3. Attach Frame Tubing

Slide compatible frame tubes onto each protrusion. Ensure all components are fully seated and aligned before securing.

4. Secure with Pin Fasteners

Insert pin fasteners through the pre-drilled holes to lock each connection in place. This ensures stability during tent installation and use.

5. Complete Frame Assembly

Continue assembling the remaining frame components and verify that all fittings are properly secured before raising and tensioning the structure.

Specifications

• Fitting Type: Square Corner Fitting
• Application: West Coast Style frame tent systems
• Material: Steel construction
• Pipe Type: 1.25 inch schedule 40 steel pipe
• Outside Diameter: 1.656 in
• Inside Diameter: 1.38 in
• Wall Thickness: 0.14 in
• Weight: 4.0 lbs
• Strength: 45000 PSI
• Finish: Zinc coated for corrosion resistance
• SKU: F31SC

Compatibility and Important Notes

• Designed specifically for West Coast Style frame tent systems
• Compatible with standard frame tent tubing and fittings
• Requires pin fasteners for secure installation
• Not a standalone component, must be used within a complete frame structure
• Ideal for custom layouts, not limited to standard tent configurations

Ideal For

• Event rental companies creating custom tent layouts
• Install crews building shade overhangs or extended structures
• Banner frames and modular frame applications
• Maintenance and expansion of existing tent inventory
• Operations requiring flexible, durable frame tent components
