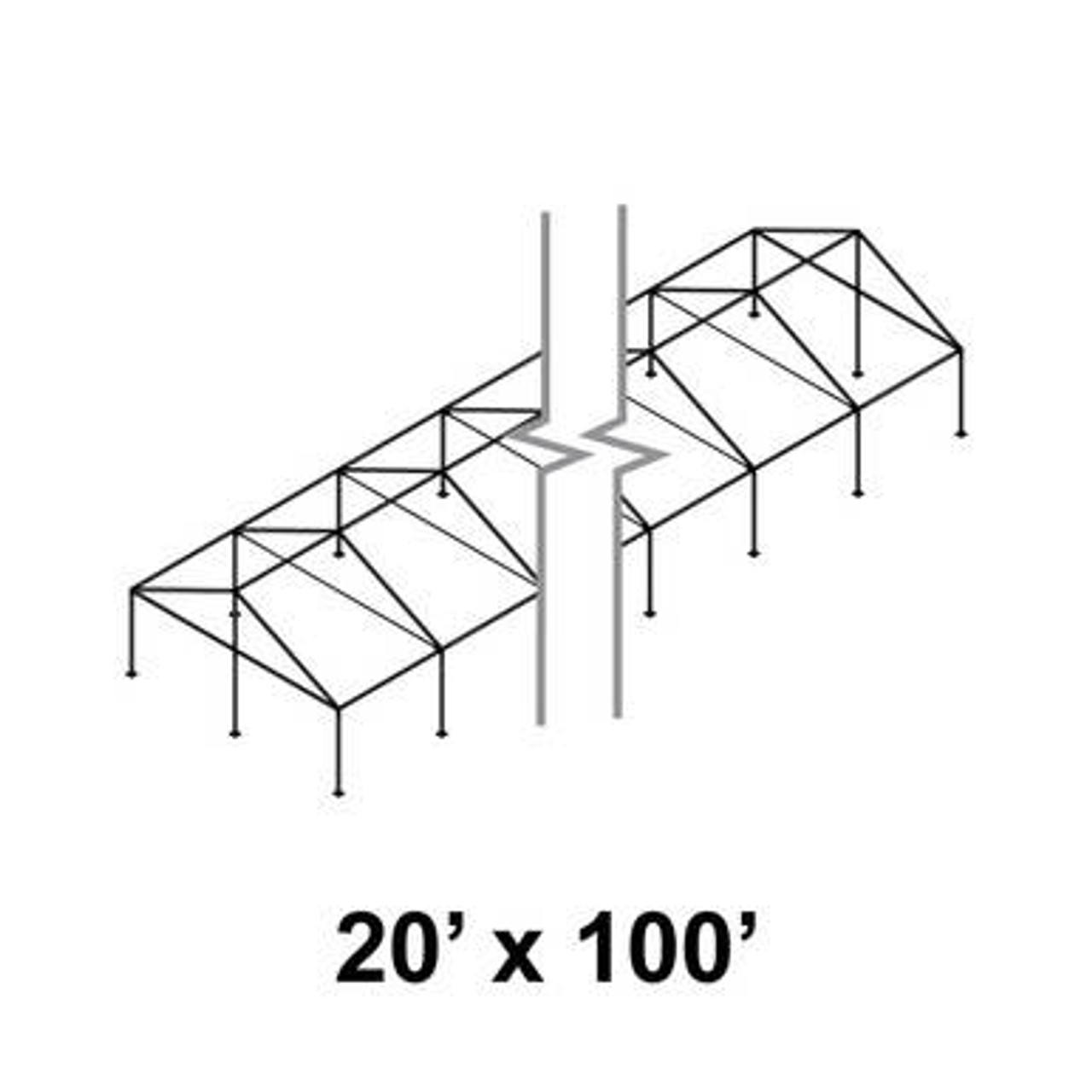

20' x 100' Gable Series Frame

20' x 100' Gable Series Frame

The 20' x 100' Gable Series Frame is an industrial-grade hardware system designed to create a massive, 2,000-square-foot elongated "house-style" architectural profile. For rental companies and large-scale event planners, this frame provides the essential structural skeleton required to support an expansive gable-ended canopy. Unlike traditional hip-roof frames that slope on all four sides, the Gable Series features vertical triangular end-caps. This design provides a flat, prominent surface at each end, making it the premier choice for high-visibility branding, custom signage, or creating a professional, sheltered corridor between permanent structures. This kit includes all the necessary heavy-duty aluminum rafters, spreaders, and reinforced steel fittings required to maintain a rigid 100-foot span, providing a stable and professional event setup.

The Gable Series is engineered to provide an open, airy feel with a consistent ridge height across the entire 100-foot length. Because this is a frame-supported system, it does not require center poles, maximizing the 2,000 square feet of usable space for large-scale dining, wide vendor rows, or sheltered pedestrian walkways. This hardware is optimized for tent installation on various surfaces, including concrete, decks, and asphalt, where traditional staking may be limited. This frame is precisely calibrated to ensure the correct pitch for water runoff while maintaining the sharp, clean lines required for modern logistics and high-capacity rental operations.

Why the 20' x 100' Gable Series Frame Matters

The 20' x 100' Gable Series Frame matters because it offers a high-capacity functional solution for long, wide-span spaces. For businesses and rental companies, the vertical gable ends provide a superior canvas for high-impact graphics or customized maintenance-friendly vinyl. Structurally, the 20-foot width provides significant interior depth, making it ideal for double-sided banquet seating or wide equipment storage. For logistics teams, the standardized West Coast Style tubing lengths ensure that the frame can be easily integrated into existing inventories, simplifying warehouse workflows and ensuring rapid deployment for specialized linear events.

Key Features

• Clear-Span Elongated Design: Provides a completely open 20' x 100' interior with no center poles, maximizing space for large equipment and guest flow.
• Gable-End Architecture: Features vertical end-caps that offer a unique aesthetic and a prime surface for custom branding and signage.
• High-Strength Aluminum Tubing: Manufactured from corrosion-resistant, structural-grade 6061-T6 aluminum for long-term durability in the rental industry.
• Interchangeable Components: Designed to work with standard West Coast Style fittings, allowing for easy teardown and component replacement.
• Heavy-Duty Steel Fittings: Features welded steel joints with a zinc-plated finish to prevent rust and ensure structural integrity over a 100-foot length.
• Versatile Mounting Options: Can be secured with stakes, water barrels, or concrete weights, making it suitable for almost any urban or rural venue.

Specifications

Ideal for / Best Uses

• Large Hospitality Pavilions: Perfect for creating wide, weather-protected areas for guests at festivals or corporate retreats.
• High-Capacity Vendor Markets: The 20-foot depth and 100-foot length are ideal for major street fairs requiring significant stall space.
• Industrial Logistics Shelters: Provides a professional, "built-in" look for long-term storage or loading dock extensions.
• Branded Corporate Tunnels: The gable ends and massive length create a high-impact "walk-through" experience for large-scale product launches.

Compatibility and Inclusions

The 20' x 100' Gable Series Frame is specifically engineered for Gable Series vinyl tops. It utilizes standard 2" diameter aluminum tubing and is compatible with most standard West Coast Style base plates and anchoring hardware. Please note that this product includes the metal frame only; it does NOT include the vinyl tent top, side curtains, or anchoring equipment. For a secure event setup, proper anchoring is mandatory regardless of surface type to prevent wind lift. During maintenance, inspect all spring buttons and welded joints to ensure the continued safety and structural longevity of your 100-foot gable inventory.
