sku: C07Z20X100

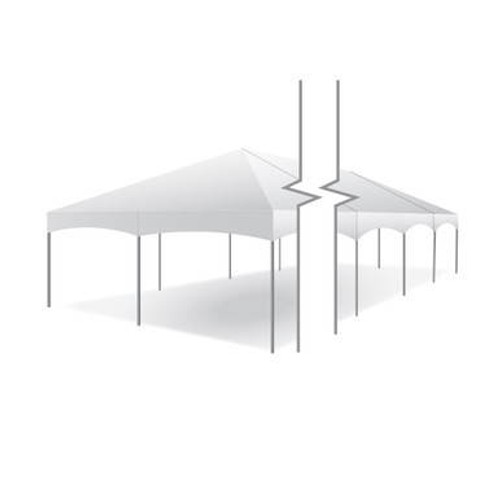

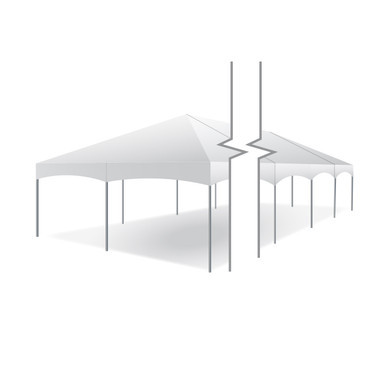

The Master Series High Peak Frame Tent combines the ease and speedy installation of the standard Master Series Frame Tent with the elegant appearance and design of a high peak tent. Just like the standard Master Series Frame tents, The Master Series High P…
Choose Options
If a printing option is chosen. The following warranty will apply to printing: Inks used in CELINA’s manufacturing processes are made with commercial grade pigments designed to resist color fading for 2 years. Colorfastness will vary depending on the products exposure to direct sunlight.
CELINA guarantees this product to be free from defects in materials and workmanship 1 year from the date of purchase. Limitations apply. Review the Product Manual for more information on the warranty.
Day or night, our team is just a chat away.
Get ready fast with step-by-step instructions!
Most orders ready to ship in 1-2 business days.
Extensive warranty available on most products.
Day or night, our team is just a chat away.
Get ready fast with step-by-step instructions!
Most orders ready to ship in 1-2 business days.
Extensive warranty available on most products.
Width
20 ft. / 6.1m
Length
100 ft. / 30.5m
Area
2000 ft² / 186.1 m²
Eave Height
8' / 2.4m
Overall Height
13'/ 4m
Pitch
5' / 1.5m
Complete Weight Aluminum
1874 Lbs. / 850 Kg.
Complete Weight Galvanized
2028 Lbs. / 920 Kg.
Complete Weight Aluminum Hybrid
2288 Lbs. / 1038 Kg.
Series / Brand
Master
Class
Frame
Center Pole
No
Style / Shape
Traditional
Expandable
Yes
Custom Printing Available
Yes
Fabric Material
PVC Coated Polyester
Fabric Material Weight
16 oz. / yd2 / 540 gsm
Fabric Translucency
Blockout
Water Repellency
Waterproof
Flame Resistant
Yes
UV Resistant
Yes
Mold and Mildew Resistant
Yes
Frame / Pole Material
Aluminum OR Galvanized
Longest Component
14' 4" / 4.4m
Persons required for setup
4-8
Occupancy
200 Sit Down Dinner - 333 Cathedral Seating
Celina Tent Inc. Installation and strike procedure on 20' x 20...

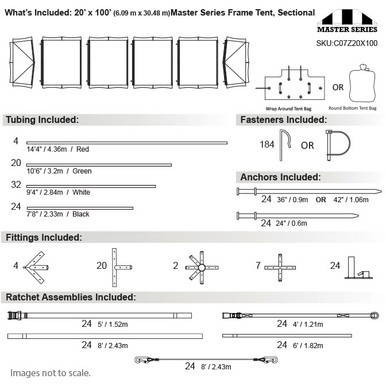

20' x 100' Master Series Frame Tent Component Checklist This ...
20' x 100' Tent & Canopy - Standard Sidewall Options Standard...
Frame Tent Basics - Removing the Tent Top from the Frame For ...

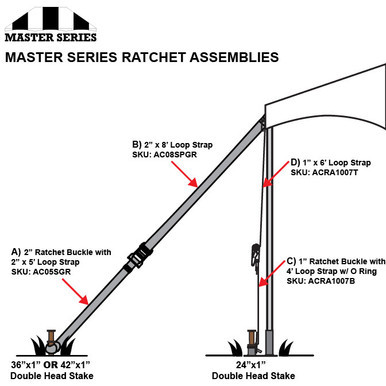

This video covers the use of each ratchet strap connected to t...
