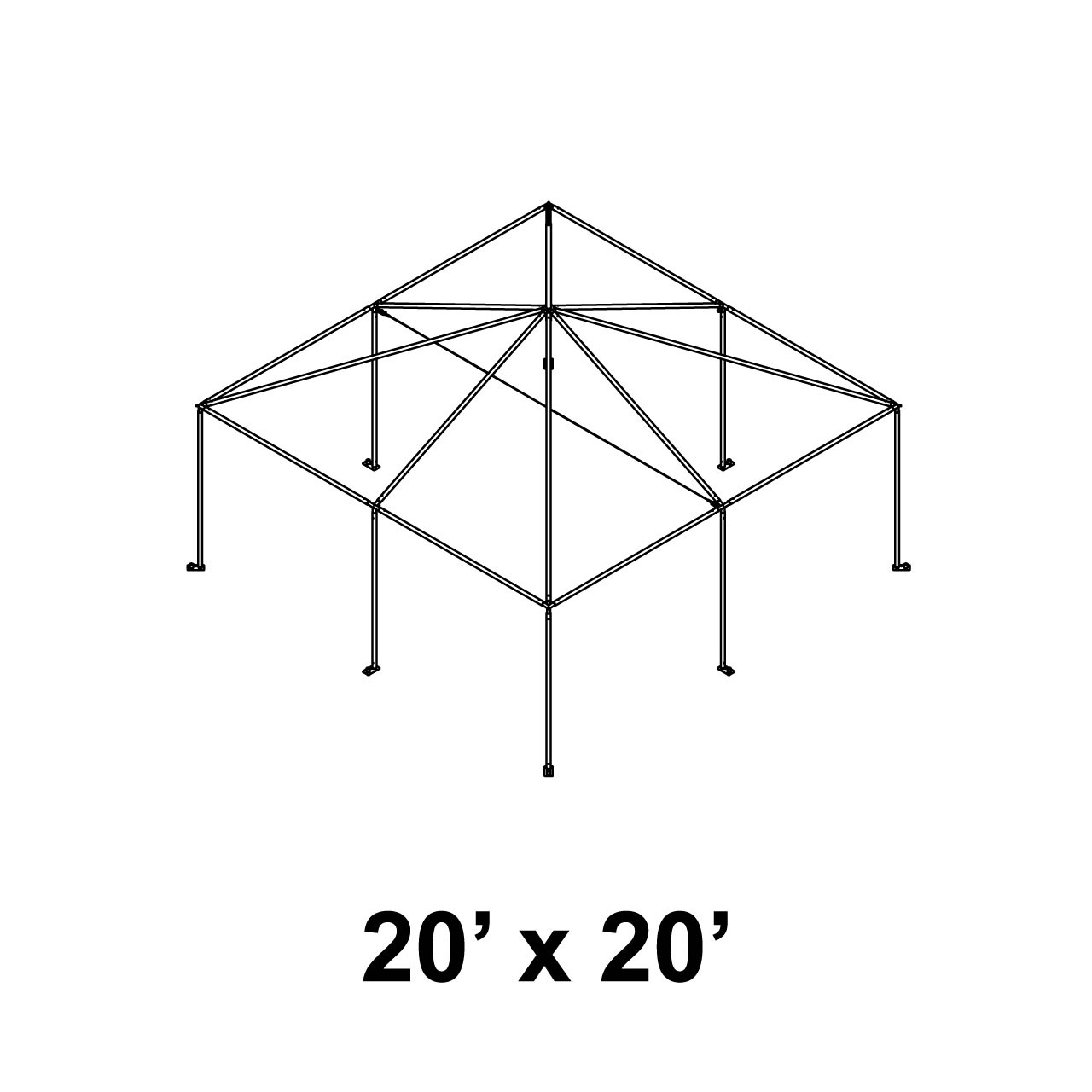

20' x 20' Master Series High Peak Frame

20' x 20' Master Series High Peak Frame tent frame kit

The 20' x 20' Master Series High Peak Frame is a premium frame tent hardware system designed for event rental companies and professional install crews that need a reliable support structure for large outdoor events. This frame creates a sturdy 20' x 20' covered area with a classic high-peak silhouette that pairs with compatible Master Series canopy tops and anchoring accessories for weddings, corporate functions, fairs, and festivals.

Built for frequent setup and teardown cycles, this Master Series High Peak Frame delivers structural stability, flexible interior space, and a visually appealing profile that enhances both guest experience and venue presentation.

Why it matters

A high-peak frame design not only provides excellent headroom and interior space but also improves water runoff and overall structural performance in typical outdoor conditions. For rental fleets and install crews, this translates to faster setup, improved guest comfort under canopy, and professional results that reduce on-site adjustments.

Key features

• Engineered for 20' x 20' Master Series High Peak tent installations
• Includes all necessary frame tubing, fittings, and assembly pins
• High peak design enhances interior headroom and aesthetic appeal
• West Coast style components support interchangeable parts across Master Series hardware
• Durable frame built for frequent setup and teardown cycles
• Professional hardware optimized for organized crew workflows

Compatibility and inclusions

• Designed to fit 20' x 20' Master Series High Peak tents
• Frame only — tent top, anchoring stakes, weights, and accessories sold separately
• Compatible with a wide range of Master Series canopy tops and rigging hardware

How to use and best practices

1. Layout frame components

Before beginning setup, organize all frame tubing sections, fittings, and assembly pins on a clean staging surface. Confirm that all parts needed for the 20' x 20' layout are present to maintain efficient installation and avoid delays.

2. Assemble base and uprights

Connect base rails and vertical supports following Master Series frame layout guidelines. Ensure each pin and fitting is fully seated and secure to maintain structural integrity as the frame begins to take shape.

3. Raise high peak section

Once base and uprights are assembled, follow high peak frame instructions for installing the peak supports. Work with crew members to ensure even alignment and balance during this stage to support proper canopy tensioning later.

4. Secure anchoring

Install stakes or approved weight systems appropriate for the ground surface and expected weather conditions. Proper anchoring enhances stability and safety throughout the event duration.

5. Teardown and storage

To strike the tent, reverse the setup steps. Remove anchoring first, then disassemble frame components in the reverse order of assembly. Store hardware in labeled containers so crews can quickly locate parts for future events.

Specifications

• Designed for: 20' x 20' Master Series High Peak tent configurations
• Includes: Frame tubing, fittings, and assembly pins
• Frame style: West Coast style interchangeable components
• Peak design: High peak for enhanced headroom
• Tent top: Sold separately
• Anchoring equipment: Not included

Ideal for

• Rental companies expanding mid-size frame tent inventory
• Outdoor weddings, festivals, and corporate events
• Vendor aisles, trade exhibits, and covered walkways
• Crew teams focused on efficient setup, teardown, and professional presentation
