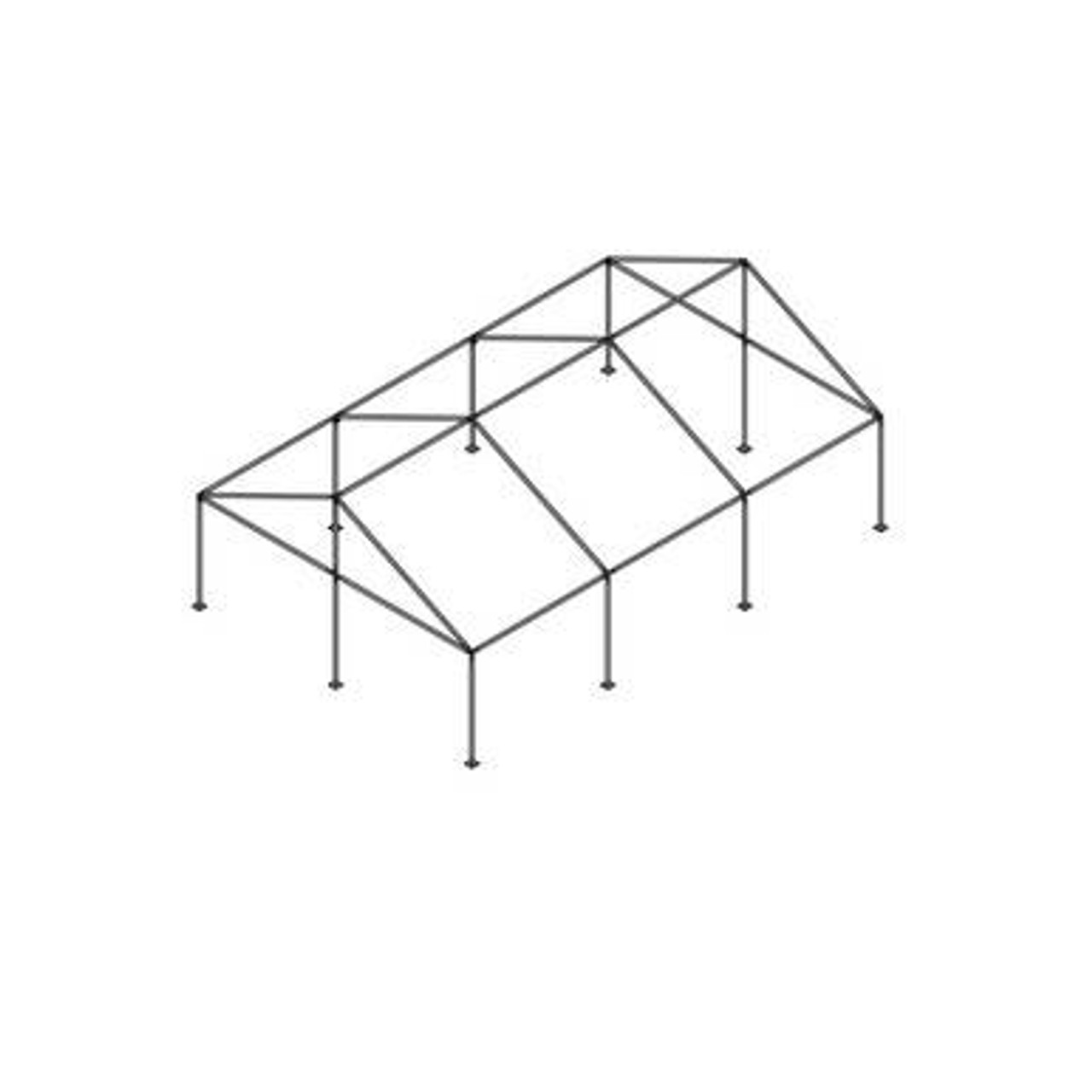

20' x 30' Gable Series Frame

20' x 30' Gable Series Frame

The 20' x 30' Gable Series Frame is a heavy-duty, commercial-grade hardware package designed to support a gable-ended frame tent. For rental companies and event professionals, this frame offers a distinctive architectural look with vertical end walls, providing a "house-like" silhouette compared to the sloped ends of a traditional hip-roof tent. This kit includes all the necessary high-strength anodized aluminum tubing and galvanized steel fittings required to construct a 600-square-foot clear-span environment. Engineered for the rigors of the rental industry, the Gable Series provides a rigid, professional-grade skeleton that eliminates the need for interior center poles, maximizing the usable square footage for any event setup.

The Gable Series is particularly valued for its versatility in logistics and site planning. Because the ends of the tent are vertical, this 20-foot wide structure can be butted up flush against buildings or joined end-to-end with other gable units to create seamless, weather-tight transitions. This makes it an ideal choice for large-scale registration areas, stage covers, or temporary building extensions. The modular design is optimized for efficient tent installation, allowing crews to assemble the rafters and spreaders on the ground before elevating the structure. The 20' x 30' footprint provides a spacious interior that can accommodate banquet seating, theater-style setups, or large-scale retail displays.

Why the 20' x 30' Gable Series Frame Matters

The 20' x 30' Gable Series Frame matters because it provides a structural solution for venues where a traditional sloped tent end is impractical or aesthetically undesirable. In a 20' x 30' configuration, maintaining a clear-span interior is critical for guest flow and line-of-sight. This frame ensures that the load-bearing members are perfectly matched to Gable Series engineering specifications, providing superior stability and wind resistance compared to lightweight residential structures. For logistics and warehouse teams, the gable design offers superior branding opportunities, as the flat vertical ends provide a perfect surface for high-impact signage and corporate logos. Having this professional-grade frame in your inventory ensures your crew can handle event setups requiring a sophisticated and unique architectural profile.

Key Features

• 600 Sq. Ft. Clear-Span Interior: Provides a completely unobstructed space with no interior center poles to interfere with guests or equipment.
• Gable-End Architecture: Features flat vertical ends, perfect for high-impact signage, custom graphics, or flush mounting against existing buildings.
• Heavy-Duty Aluminum Construction: Manufactured from 2" (50mm) high-strength anodized aluminum tubing to resist oxidation and structural fatigue.
• Galvanized Steel Fittings: Includes reinforced corner and ridge fittings designed for rapid assembly and maximum joint stability.
• West Coast Style Compatibility: Built on the industry-standard "West Coast" platform, allowing for easy integration with standard pins and rental industry hardware.
• Professional Aesthetic: Delivers a clean, modern silhouette that distinguishes your inventory from standard hip-roof frame tents.

Specifications

Ideal for / Best Uses

• Stage and Entertainment Covers: The vertical gable end provides an unobstructed view for performances and better acoustics than sloped designs.
• Building Extensions: The vertical end allow the tent to sit flush against a doorway or exterior wall for seamless indoor-outdoor transitions.
• VIP Catering and Dining: Provides 600 square feet of clear-span space for high-end banquet seating or buffet service.
• Branded Corporate Activations: The flat gable face provides a superior surface for custom-printed end panels and high-visibility logos.

Compatibility and Inclusions

The 20' x 30' Gable Series Frame is specifically designed for use with Gable Series vinyl tops. It is not compatible with standard hip-roof (Classic Series) vinyl due to the difference in end-panel geometry. Please note that this product includes the aluminum frame and steel fittings only; it does NOT include the vinyl tent top, ground stakes, ratchets, or base plates. For a secure event setup, appropriate anchoring—via steel stakes or heavy-duty weights—is mandatory. During teardown, ensure all pins and fittings are cleaned and inspected to maintain the structural safety of your frame inventory.
