Celina Tent

Write a Review

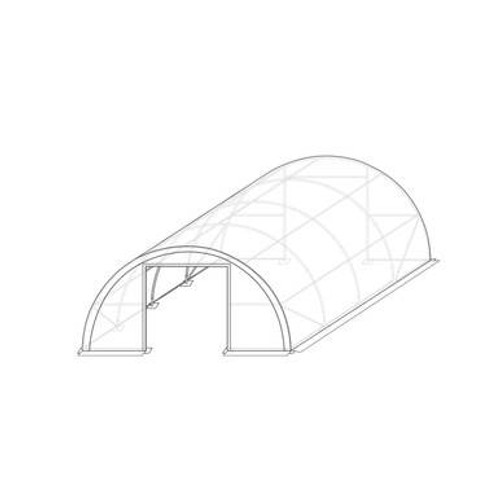

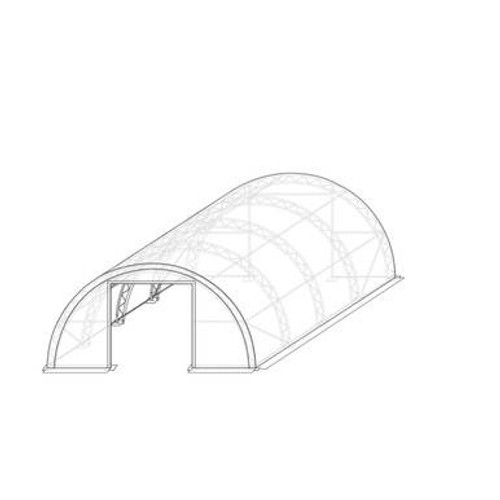

30'W x 40'L x 15'H Crestline Single Truss Arch Shelter, Arched Side

Write a Review

View Description & Specifications

sku: C17Z30X40X15AS100

SKU:
C17Z30X40X15AS100
Weight:
0.00 LBS
option|Complete Tent - all tent sections will be added to the cart:
{"030X040X15AS100":1}

Choose Options

Adding to cart… The item has been added
$8,285.71

24/7 Support

Day or night, our team is just a chat away.

easy installation

Get ready fast with step-by-step instructions!

fast shipping

Most orders ready to ship in 1-2 business days.

Extensive Warranty

Extensive warranty available on most products.

24/7 Support

Day or night, our team is just a chat away.

easy installation

Get ready fast with step-by-step instructions!

fast shipping

Most orders ready to ship in 1-2 business days.

Extensive Warranty

Extensive warranty available on most products.

Overview

Product Description

Celina’s 30'W x 40'L x 15'H Crestline Single Truss Arch Shelters are designed for semi-permanent installation, with a galvanized frame comprised of 7 arches made from 15 gauge steel. This gives the frame a tensile strength of 57,275 PSI; when installed, the arches are spaced 6.56' apart to create the 40' length. Common uses range from industrial to agricultural, with the 30'x40'x15' Crestline great for storing hay, excess machinery, or as temporary housing for a workshop or livestock. A free-standing structure, the walls of the 30'x40'x15' Crestline Single Truss Arch Shelter are curved all the way down to the base plates. Quick Reference List: Single-Truss Arches - each arch consists of one tube Arched Sides - frame curve extends to the ground (height decreases continually to the edge) 2.4" (60 mm) Steel Frame Tube, 1.9" (48 mm) Purlins UV-treated, fire retardant cover Front and back roll up zipper door Zipper Door - zippers along the sides of the door need to be opened before the door is lifted using a rope and pulley system Door Dimensions: 12' 1" (3.7 m) Wide x 12' 6" (3.8 m) High

Specifications

Width

15ft. / 4.5m

Length

15ft. / 4.5m

Area

225 ft² / 20 m²

Eave Height

7' / 2.13m | 8' / 2.4m

Overall Height

11'4" / 3.45m | 12'4" / 3.8m

Pitch

3'6" / 1.07m

Complete Weight Aluminum

210 Lbs. / 95 Kg. | 215 Lbs. / 98 Kg.

Complete Weight Galvanized

232 Lbs. / 105 Kg. | 238 Lbs. / 108 Kg.

Series / Brand

Classic

Class

Pole

Center Pole

Yes

Style / Shape

Traditional

Expandable

No

Custom Printing Available

Yes

Fabric Material

PVC Coated Polyester

Fabric Material Weight

16 oz. / yd2 / 540 gsm

Fabric Translucency

Blockout

Water Repellency

Waterproof

Flame Resistant

Yes

UV Resistant

Yes

Mold and Mildew Resistant

Yes

Frame / Pole Material

Aluminum OR Galvanized

Longest Component

7'10"/ 2.4m | 8'10" / 2.7m

Persons required for setup

2

Occupancy

23 Sit Down Dinner - 38 Cathedral Seating

Literature

Warranty

CELINA guarantees this product to be free from defects in materials and workmanship 1 year from the date of purchase. Limitations apply. Review the Product Manual for more information on the warranty.

If a printing option is chosen. The following warranty will apply to printing:

Inks used in CELINA’s manufacturing processes are made with commercial grade pigments designed to resist color fading for 2 years. Colorfastness will vary depending on the products exposure to direct sunlight.
