30'W x 65'L x 15'H Crestline Double Truss Arch Shelter, Arched Side
30'W x 65'L x 15'H Crestline Double Truss Arch Shelter, Arched Side
Write a Review
Write a Review
Celina Tent
30'W x 65'L x 15'H Crestline Double Truss Arch Shelter, Arched Side
View Description & Specifications
sku: C17Z30X65X15AD100
The double-arch design of the 30'W x 65'L x 15'H Crestline Double Truss Arch Shelter lends extra strength to the overall structure during installation. Each of the 11 arches are made from 15 gauge steel, spaced 6.56' apart along the length of the shelter. …
- SKU:
- C17Z30X65X15AD100
- Weight:
- 0.00 LBS
- option|Complete Tent - all tent sections will be added to the cart:
- {"030X065X15AD100":1}
- downloadable Series Overview:
- https://gettent.com/product_images/pdf/003-0142-rent-crestline-tent-series-flyer.pdf
- downloadable Product Manual:
- https://gettent.com/product_images/pdf/C17Z30X65X15AD100-30-x-65-crestline-double-truss-arched-side-1-pc-manual.pdf
- downloadable Tent Care:
- https://gettent.com/product_images/pdf/tent-care-cleaning-and-storage.pdf
- Tent Series:
- Crestline Truss Arch Fabric Shelter
- Tent Width:
- 30 ft. / 9.15m
- Tent Length:
- 65 ft. / 19.8m
Choose Options
Warranty
-
1 Year Warranty
CELINA guarantees this product to be free from defects in materials and workmanship 1 year from the date of purchase. Limitations apply. Review the Product Manual for more information on the warranty.
Literature
24/7 Support
Day or night, our team is just a chat away.
easy installation
Get ready fast with step-by-step instructions!
fast shipping
Most orders ready to ship in 1-2 business days.
Extensive Warranty
Extensive warranty available on most products.
24/7 Support
Day or night, our team is just a chat away.
easy installation
Get ready fast with step-by-step instructions!
fast shipping
Most orders ready to ship in 1-2 business days.
Extensive Warranty
Extensive warranty available on most products.
Overview
Product Description

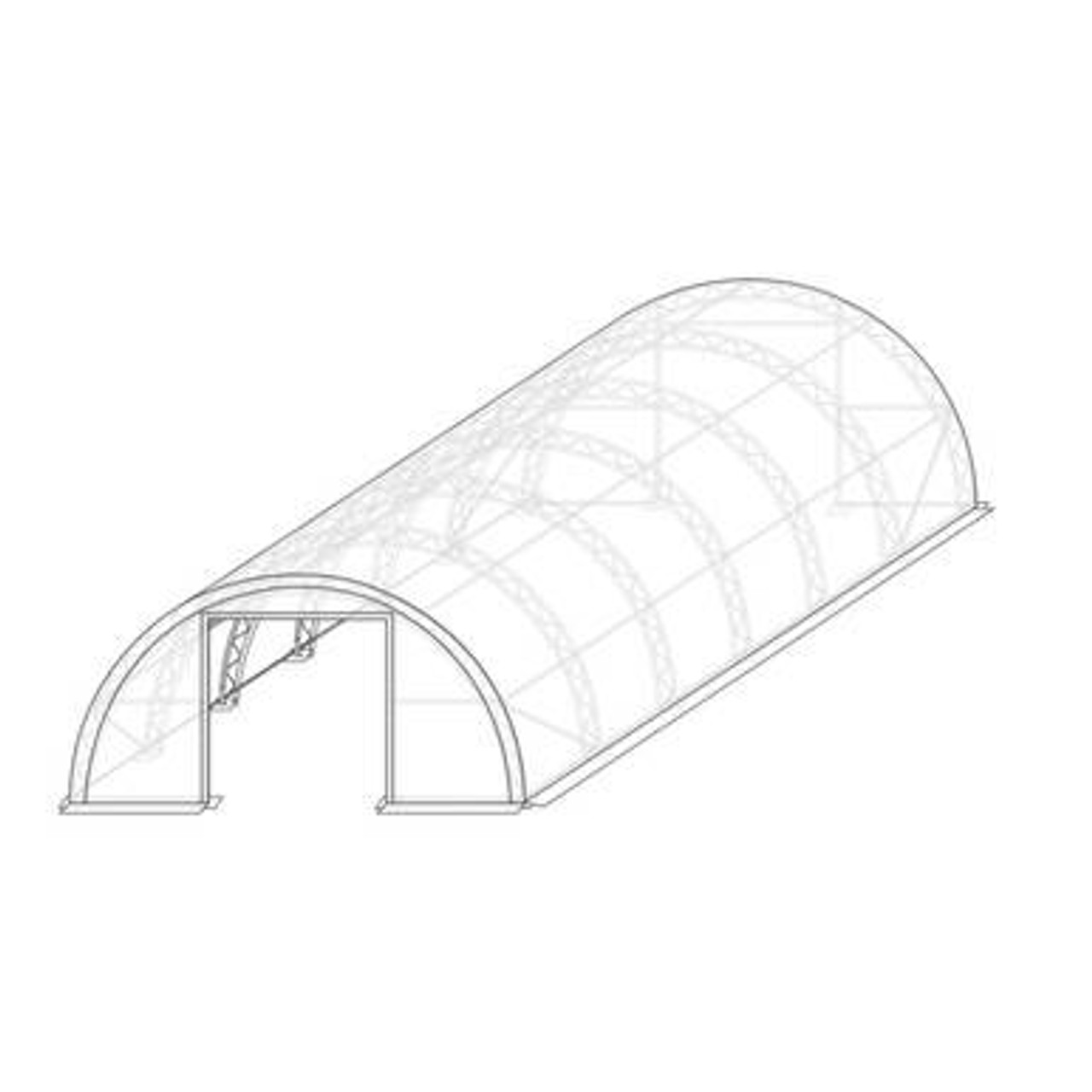

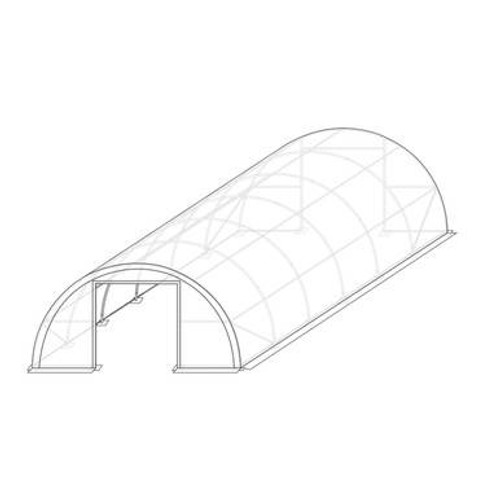

The double-arch design of the 30'W x 65'L x 15'H Crestline Double Truss Arch Shelter lends extra strength to the overall structure during installation. Each of the 11 arches are made from 15 gauge steel, spaced 6.56' apart along the length of the shelter. When installed, the frame has a base tensile strength of 57,275 PSI. Crestlines with arches sides have diminishing height as you approach the walls, making them ideal for storing smaller machinery or for temporarily housing livestock.
Quick Reference List:
Double-Truss Arches - each arch has two connected tubes for added strength
Arched Sides - frame curve extends to the ground (height decreases continually to the edge)
2.4" (60 mm) Steel Tube Frame
UV-treated, fire retardant cover
Front and Back Doors included, with mechanical winch roll up (1200 lb. winch)
Door Dimensions: 11' 6" (3.5 m) Wide x 12' 1" (3.7 m) High
Specifications
Width
30 ft. / 9.15m
Length
65 ft. / 19.8m
Area
1950 ft2 / 181.1m2
Overall Height
15 ft. / 4.5m
Complete Weight
4695 lbs. / 2130 kg.
Series / Brand
Crestline
Class
Truss Arch Shelter
Center Pole
No
Style / Shape
Frame
Expandable
No
Custom Printing Available
No
Fabric Material
PVC Coated Polyester
Fabric Material Weight
18 oz. / yd2 / 510.3 gsm
Fabric Translucency
Translucent
Water Repellency
Waterproof
Flame Resistant
Yes
UV Resistant
Yes
Mold and Mildew Resistant
Yes
Frame / Pole Material
Galvanized
Persons required for setup
4-6
