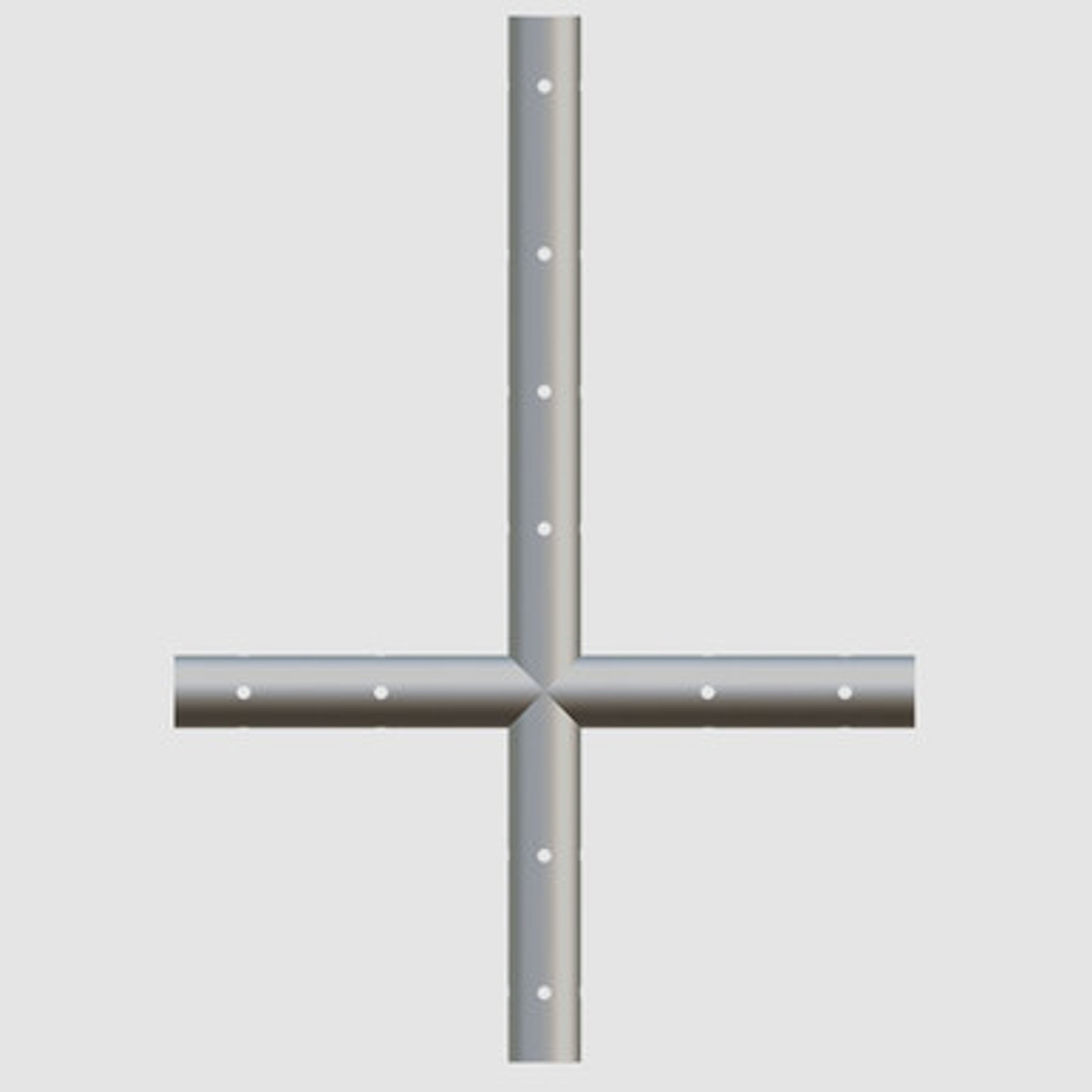

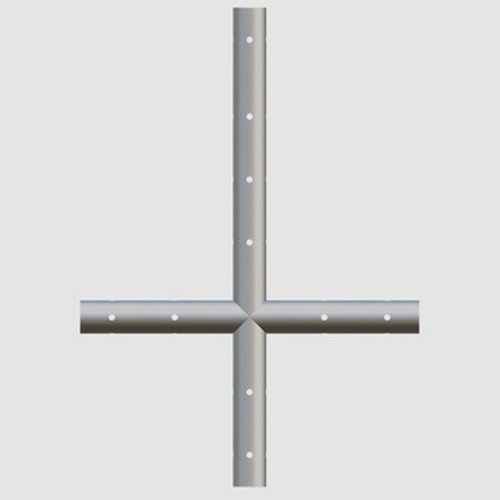

4 Way Flat Tee

4 Way Flat Tee Frame Tent Fitting

The 4 Way Flat Tee is a structural frame tent fitting designed for use in Classic Series gable frame tent systems and custom frame builds. This component connects multiple tubing sections at a flat junction point, allowing crews to link perimeter tubing with internal support members for added stability. Built for professional tent installation, it plays a key role in reinforcing the frame and maintaining alignment across the structure.

Commonly installed beneath the crown fitting in larger gable frame tents, the 4 way flat tee provides direct support to the peak while distributing load across connected frame components. For event rental companies and install crews, this fitting helps ensure consistent performance, especially in larger or more complex setups.

Why This Flat Tee Fitting Matters

In frame tent systems, proper load distribution is critical to maintaining structural integrity. The 4 way flat tee allows multiple support tubes to connect at a single point, reinforcing the frame and reducing stress on individual components. This is especially important in larger tents where peak support and internal bracing directly impact performance.

Using the correct flat tee fitting also improves setup efficiency by ensuring clean, secure connections between structural members, reducing the risk of misalignment during installation.

Key Features

• Designed for Classic Series gable frame tent systems and custom builds
• Connects perimeter tubing and central support tubing at a flat junction
• Commonly installed beneath the crown fitting for peak support
• Four connection points allow multi-directional frame integration
• Constructed from 1.25" schedule 40 steel pipe for strength and durability
• Zinc-plated finish helps resist corrosion in outdoor environments
• Supports structural reinforcement in large or complex tent setups
• Designed for repeated use in rental and event environments

How to Use and Install

1. Identify Installation Location

Determine where the 4 way flat tee will be used within the frame layout. It is typically installed beneath the crown fitting or at key support junctions in gable frame tents.

2. Align Frame Tubing

Position the perimeter and internal support tubes so they align with the four openings of the flat tee fitting.

3. Connect Tubing

Slide each tube into the corresponding connection point on the fitting. Ensure proper alignment before securing the connections.

4. Secure with Pins

Insert compatible pins through the aligned holes to lock each tube in place. Proper fastening is essential for maintaining frame stability.

5. Verify Structural Alignment

Check that all connected components are aligned and secure before continuing with the rest of the tent installation.

Specifications

• Product Type: 4 way flat tee fitting
• Compatibility: Classic Series gable frame tent systems
• Material: 1.25" schedule 40 steel pipe
• Finish: Zinc plated
• Outside Diameter: 1.656"
• Inside Diameter: 1.38"
• Wall Thickness: 0.14"
• Strength: 45,000 PSI
• Weight: 5.0 lbs

Compatibility and Important Notes

• Designed specifically for frame tent systems, not pole tents
• Commonly used in gable frame tent configurations
• Installed beneath crown fittings for peak support in larger tents
• Must match tubing size and system type for proper fit
• This is a component or replacement part only, not a complete frame system

Ideal For

• Event rental companies maintaining or repairing frame tent systems
• Large-scale tent installation requiring reinforced support connections
• Custom frame builds and structural modifications
• Crews focused on efficient, repeatable setup workflows
• Operations requiring durable, high-strength frame components
