40' x 80' Master Series Frame Tent, Sectional Tent Top, Complete

Write a Review

View Description & Specifications

sku: C07Z40X80

SKU:: C07Z40X80
UPC:
Weight:: 0.00 LBS
option|Fabric Top|~:: {"040020MFGA5050":{"040020MFGA5050":1,"040020MFMA5050":2,"040020MFLA5050":1}}
option|Fabric Top|~:: {"040020MFGA5051":{"040020MFGA5051":1,"040020MFMA5051":2,"040020MFLA5051":1}}
option|Fabric Top|~:: {"040020MFGA5052":{"040020MFGA5052":1,"040020MFMA5052":2,"040020MFLA5052":1}}
option|Fabric Top|~:: {"040020MFGA5053":{"040020MFGA5053":1,"040020MFMA5053":2,"040020MFLA5053":1}}
option|Fabric Top|~:: {"040020MFGADP":{"040020MFGADP":1,"040020MFMADP":2,"040020MFLADP":1}}
option|Fabric Top|~:: {"040020MFGADPL":{"040020MFGADPL":1,"040020MFMADPL":2,"040020MFLADPL":1}}
option|Eave Height & Tube Material/Type:: {"KITMSAS04008008":1,"KITMSET04008008":1}

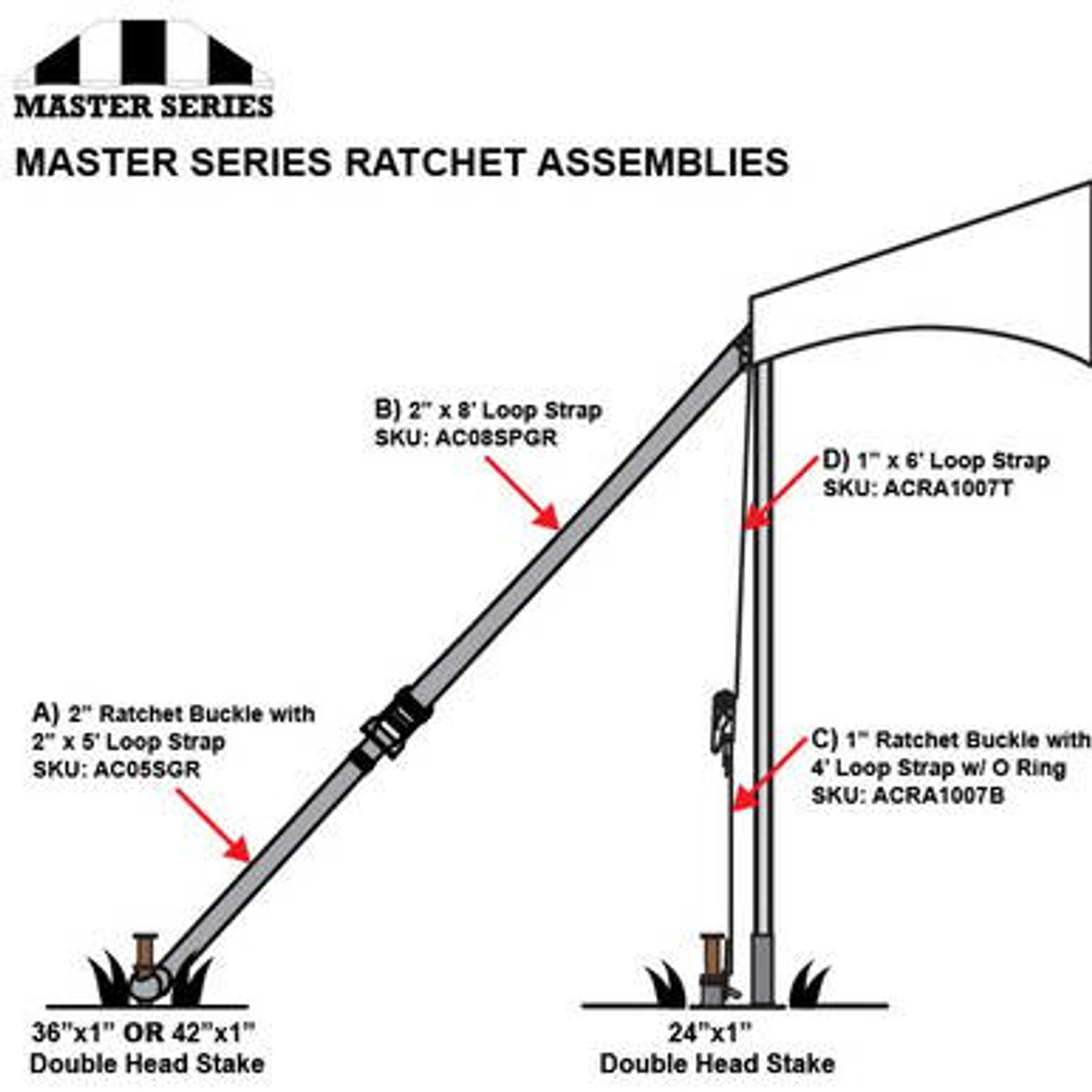

option|Stake Size (Includes Ratchet Assemblies):: {"ACTS4212":{"ACTS4212":24,"AC05SGR":24}}
option|Sidewalls|Eave Height & Tube Material/Type:KITMSAS04008008:: {"ACSW820R5050":{"ACSW820R5050":6,"ACSW830R5050":4},"ACSW820WINCA":{"ACSW820WINCA":6,"ACSW830WINCA":4},"ACSW820RDP":{"ACSW820RDP":6,"ACSW830RDP":4},"ACSW820RDPL":{"ACSW820RDPL":6,"ACSW830RDPL":4}}
option|Sidewalls|Eave Height & Tube Material/Type:KITMSET04008008:: {"ACSW820R5050":{"ACSW820R5050":6,"ACSW830R5050":4},"ACSW820WINCA":{"ACSW820WINCA":6,"ACSW830WINCA":4},"ACSW820RDP":{"ACSW820RDP":6,"ACSW830RDP":4},"ACSW820RDPL":{"ACSW820RDPL":6,"ACSW830RDPL":4}}

Choose Options

Current Stock:

Quantity:

Adding to cart… The item has been added

$14,527.29

24/7 Support

Day or night, our team is just a chat away.

easy installation

Get ready fast with step-by-step instructions!

fast shipping

Most orders ready to ship in 1-2 business days.

Extensive Warranty

Extensive warranty available on most products.

24/7 Support

Day or night, our team is just a chat away.

easy installation

Get ready fast with step-by-step instructions!

fast shipping

Most orders ready to ship in 1-2 business days.

Extensive Warranty

Extensive warranty available on most products.

Overview
Product Videos

Overview

Product Description

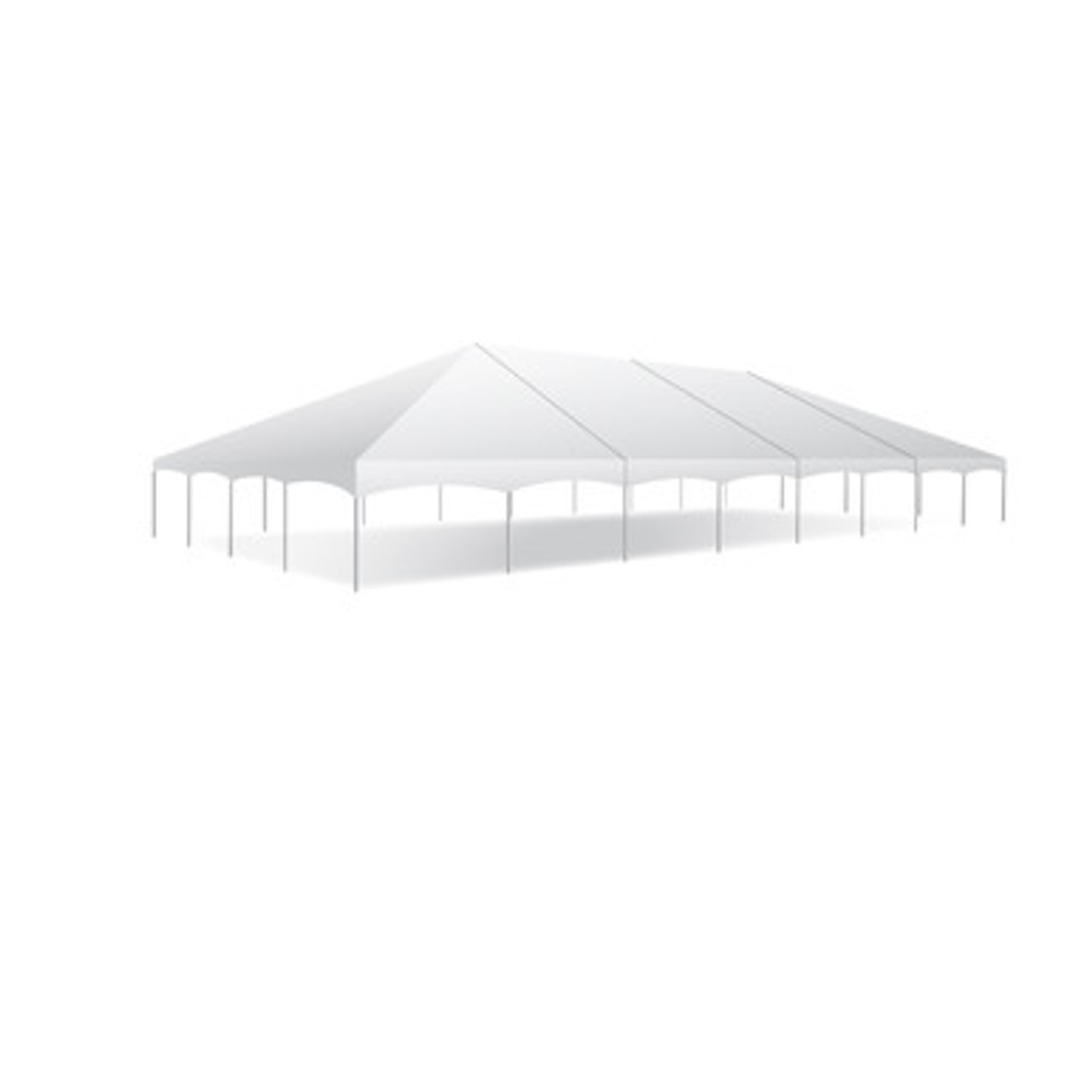

The Master Series High Peak Frame Tent combines the ease and speedy installation of the standard Master Series Frame Tent with the elegant appearance and design of a high peak tent. Just like the standard Master Series Frame tents, The Master Series High Peak is made with fewer pieces of hardware and a tensioned valance for a smooth, tight appearance. The high peak and sloping curves catch attention, while the frame itself can be interchanged with other Master Series Frame Tents and even the Classic Series Frame Tent systems


Specifications

Width	40 ft. / 12.2m
Length	80 ft. / 24.4m
Area	3200 ft² / 297.7 m²
Eave Height	8' / 2.4m
Overall Height	18'/ 5.5m
Pitch	10' / 3.0m
Complete Weight Aluminum	2366 Lbs. / 1073 Kg.
Complete Weight Aluminum Hybrid	2843 Lbs. / 1290 Kg.
Series / Brand	Master
Class	Frame
Center Pole	No
Style / Shape	Traditional
Expandable	Yes
Custom Printing Available	Yes
Fabric Material	PVC Coated Polyester
Fabric Material Weight	16 oz. / yd2 / 540 gsm
Fabric Translucency	Blockout
Water Repellency	Waterproof
Flame Resistant	Yes
UV Resistant	Yes
Mold and Mildew Resistant	Yes
Frame / Pole Material	Aluminum OR Galvanized
Longest Component	21'10.5" / 6.7m
Persons required for setup	4-8
Occupancy	320 Sit Down Dinner - 533 Cathedral Seating

Literature

Warranty

CELINA guarantees this product to be free from defects in materials and workmanship 1 year from the date of purchase. Limitations apply. Review the Product Manual for more information on the warranty.

If a printing option is chosen. The following warranty will apply to printing:
Inks used in CELINA’s manufacturing processes are made with commercial grade pigments designed to resist color fading for 2 years. Colorfastness will vary depending on the products exposure to direct sunlight.
