Product Description

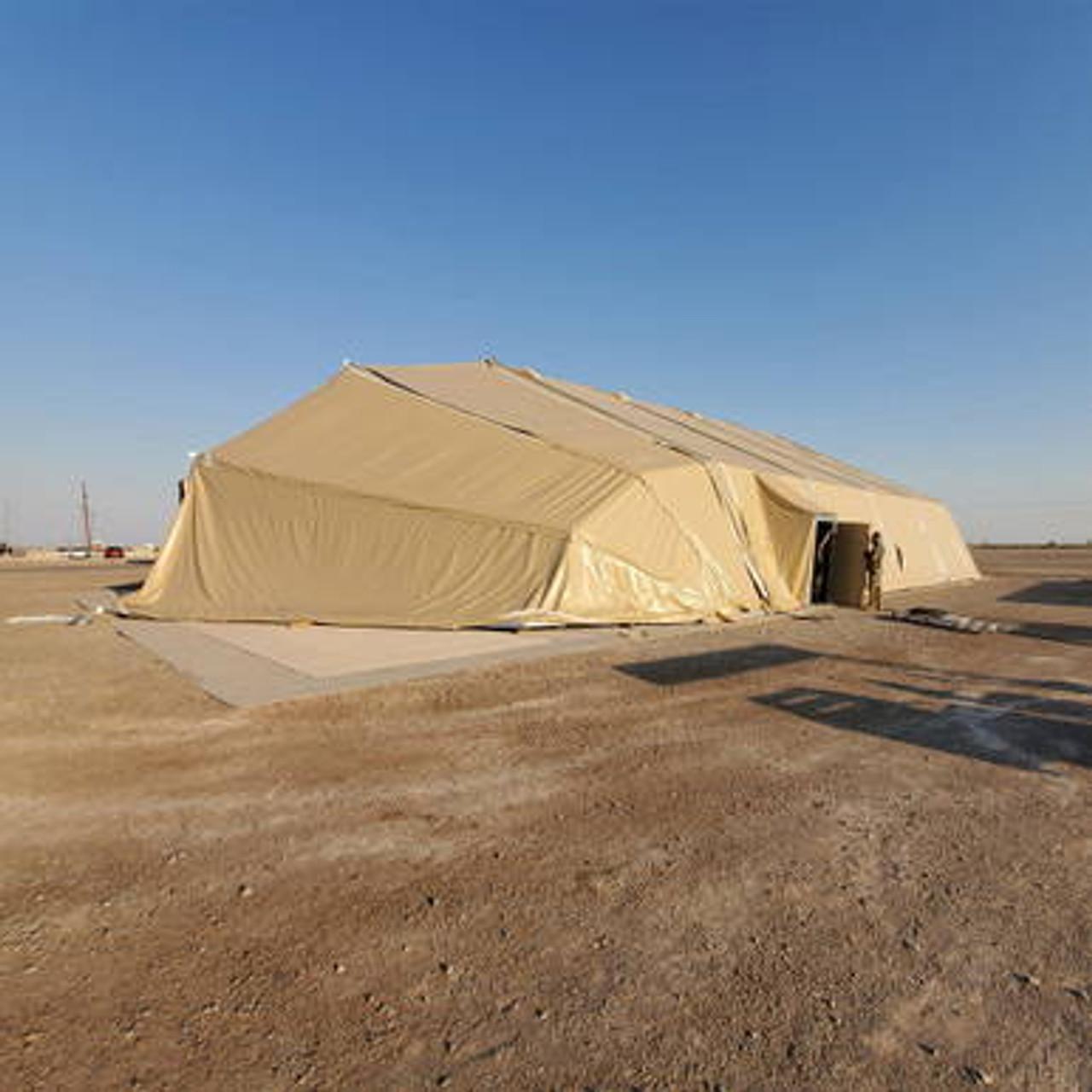

4K Dome Shelter
CELINA’s 4K Dome Shelter, NSN 5410-01-455-2004, includes a retractable Tri-lid Door, allowing for full-width entries when in the open state and protection from environmental elements when in the closed state. This shelter also includes a gable end with vehicle and personnel side doors, allowing for easy access. CELINA’s DOME is designed for various uses, including maintenance space, general purpose, general storage, training space, and aircraft hangars. This expeditionary shelter design is completely mobile and relocatable and can be deployed on any ground type. Pre-assembled hardware allows for quick shelter installation without the use of lifts and ladders. CELINA’s 4K DOME Shelters are Berry Compliant.
Replacement Parts
| Celina SKU # | Description | Price |
|---|---|---|
| 9434479 | BM SPLICE INSERT | $321.30 |
| 200224120 | TENSION BAR-FEM-OUTSIDE GABLE UPRIGHTS | $81.54 |
| 200224080 | PERSONNEL DOOR FRAME | $1,827.20 |
| 200224146 | PERSONNEL DOOR (Included with Part# 200224080) | $- |
| 9434521 | FABRIC INSTALLATION HANDWINCH "L" | $1,000.75 |
| 9434533 | FABRIC INSTALLATION HANDWINCH "R" | $1,000.75 |
| 9434534 | BM ANCHOR RATCHET | $223.53 |
| 9434716 | CENTER PANEL + 1 - DOOR & FLAP | $9,509.10 |
| 9434488-30 | TOP BM PANEL GROMMET | $4,042.23 |
| 9434488-50 | TOP BM PANEL LACE | $4,506.05 |
| 9434486-50 | MIDDLE BM PANEL LACE | $3,898.90 |
| 9434486-30 | MIDDLE BM PANEL GROMMET | $3,192.25 |
| 9434484-30 | BOTTOM BM PANEL GROMMET | $3,295.68 |
| 9434484-50 | BOTTOM BM PANEL LACE | $3,802.40 |
| 9434526 | 135' TIRFOR CABLE | $130.71 |
| 9434527 | DIAGONAL BASE PLATE LAYOUT CABLE (RED) | $101.88 |
| 9434559F | BASE PLATE LAYOUT CABLE ANCHOR PIN | $173.61 |
| 9434599F | ANCHOR PIN | $141.25 |
| 9434561 | BM FABRIC RATCHET | $40.29 |
| 9434543 | FABRIC INSTALLATION BRACKET W/WHEELS | $251.30 |
| 9434509 | WHEELED FABRIC INSTALLATION TUBE | $351.36 |
| 9434517 | LIGHTBANK HANDWINCH W/CLAMP | $851.36 |
| 9434504 | PERSONNEL DOOR HEADER BAR - FEMALE | $851.36 |
| 11105858 | 5/8"X4-1/2" HEX. HD. BOLT GR.5 ZP | $1.95 |
| 0159733 | 1 3/8" FLAT WASHER ZP | $1.44 |
| 33793 | 1 3/8" LOCK WASHER ZP | $3.38 |
| 37054 | 1 3/8" NYLON INSERTED LOCKNUT GR.5 ZP | $13.49 |
| 11543195 | 5/8" LOCK WASHER ZP | $0.68 |
| 11105803 | 1/2" X 2" HEX. HD. BOLT GR.5 ZP | $0.49 |
| 110120391 | 1/2" X 4-1/2" HEX. HD. BOLT GR.5 ZP | $2.40 |
| 11105368 | 1/2" WINGNUT ZP | $1.44 |
| 1137030 | 1/2" NYLON INSERTED LOCKNUT GR.5 ZP | $0.26 |
| 1133012 | 1/2" FLAT WASHER ZP | $0.41 |
| 11105795 | 1/2" X 3/4" HEX. HD. BOLT WITH FLAT WAHSER GR.5 ZP | $0.49 |
| 13224 | 1/2" X 5 1/2" HEX. HD. BOLT GR.5 ZP | $2.56 |
| 3014T129 | EYEBOLT 3/4" | $46.78 |
| 3112T360 | Eye Nut 3/4" | $29.21 |
| 37036 | 5/8" NYLON INSERTED LOCKNUT GR.5 ZP | $0.56 |
| 9434588 | PERSONNEL DOOR HEADER BAR - MALE THREADED W/NUT | $78.20 |
| 9434573 | TIRFOR COMPLETE | $8,297.63 |
| 200412839 | POWER WINCH THERN - SC4523 W/ MOUNTING BRACKET | $16,479.18 |
| 13827 | 5/8" X 2" HEX. HD. BOLT SAE J429 GR.5 ZP | $1.16 |
| ACSR2IN | ROLLER, 2 in. wide | $28.13 |
| 200224078 | SPLICE TENSION BAR | $116.38 |
| 9434515 | LARGE PURLIN - MALE - DOOR | $356.96 |
| 9434570 | PERSONNEL DOOR TENSION BAR | $77.29 |
