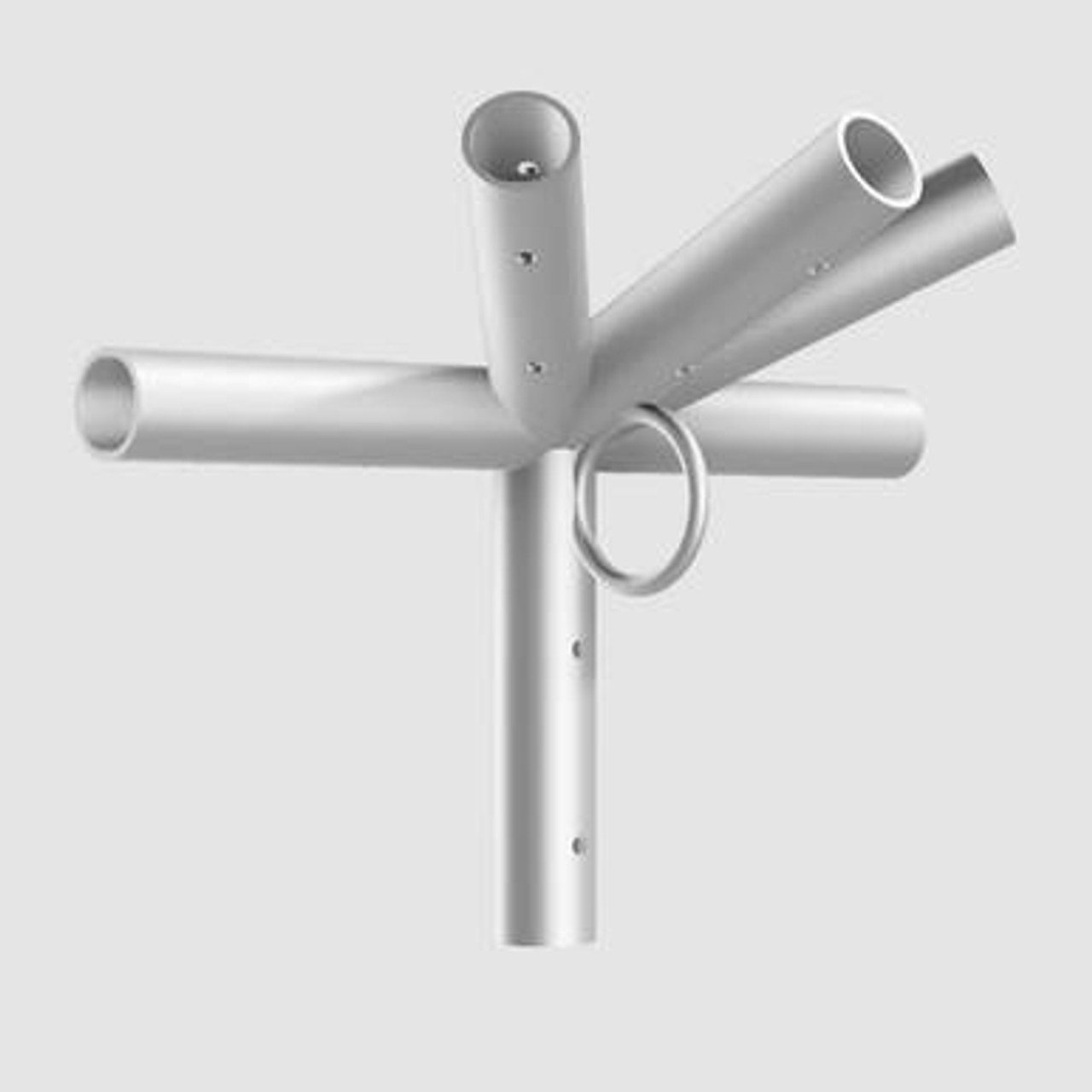

6 Way Side Tee with Ring

6 Way Side Tee with Ring Frame Tent Fitting

The 6 Way Side Tee with Ring is a critical frame tent fitting designed for West Coast style frame tent systems. This component connects leg tubing to perimeter spreaders and rafter tubing while also providing a dedicated ring attachment point for cable systems. Built for professional tent installation, it plays a key role in maintaining structural alignment and supporting load distribution across the frame.

Commonly used in 30' and 40' wide frame tents, this fitting allows crews to create stable sidewall connections while integrating tension cables through the welded ring. For event rental companies and installation crews, this ensures a more secure structure and improved performance during both setup and teardown.

Why This Side Tee with Ring Matters

In large frame tent systems, side tee fittings are essential for connecting the perimeter of the tent. The added ring feature enhances functionality by providing a secure point for attaching support cables, which help maintain tension and stability across the structure. This is especially important in long-span tent installation where proper load distribution directly impacts safety and performance.

Using the correct side tee fitting also improves workflow efficiency by ensuring consistent connections and reducing the risk of misalignment during assembly.

Key Features

• Designed for West Coast style frame tent systems
• Connects leg tubing, spreaders, and rafter components
• Includes a welded ring for cable attachment to support structural tension
• Six connection points allow multi-directional frame integration
• Constructed from 1.25" schedule 40 steel pipe for strength and durability
• Zinc-plated finish helps resist corrosion in outdoor environments
• Supports consistent alignment across the tent perimeter
• Designed for repeated use in rental and event applications

How to Use and Install

1. Position the Side Tee

Place the 6 way side tee at the designated perimeter location within the frame layout. Ensure the fitting is oriented correctly so each connection point aligns with the corresponding tubing.

2. Connect Frame Tubing

Slide leg poles, spreaders, and rafter tubing onto the appropriate protrusions of the fitting. Align the holes and secure each connection using pins.

3. Attach Support Cable

Use the welded ring to connect tension cables or support lines. This helps distribute load across the frame and improves overall stability during tent installation.

4. Secure All Connections

Double-check that all frame connections and cable attachments are properly secured. Proper alignment is critical for maintaining structural integrity.

5. Continue Frame Assembly

Proceed with the rest of the tent setup, ensuring all side tee fittings are installed consistently along the perimeter.

Specifications

• Product Type: 6 way side tee with ring fitting
• Compatibility: West Coast style frame tent systems
• Material: 1.25" schedule 40 steel pipe
• Finish: Zinc plated
• Outside Diameter: 1.656"
• Inside Diameter: 1.38"
• Wall Thickness: 0.14"
• Strength: 45,000 PSI
• Weight: 8.6 lbs
• Function: Connects legs, spreaders, and rafters with cable attachment point

Compatibility and Important Notes

• Designed specifically for frame tent systems, not pole tents
• Commonly used in 30' and 40' wide frame tents
• Must match tubing size and system type for proper fit
• This is a replacement or component part only, not a complete frame system
• Proper cable attachment is required for optimal structural performance

Ideal For

• Event rental companies maintaining or repairing frame tent systems
• Large-scale tent installation requiring cable-supported structures
• Crews focused on efficient, repeatable setup workflows
• Replacement of worn or damaged side tee fittings
• Operations requiring durable, high-strength frame components
