Product Description

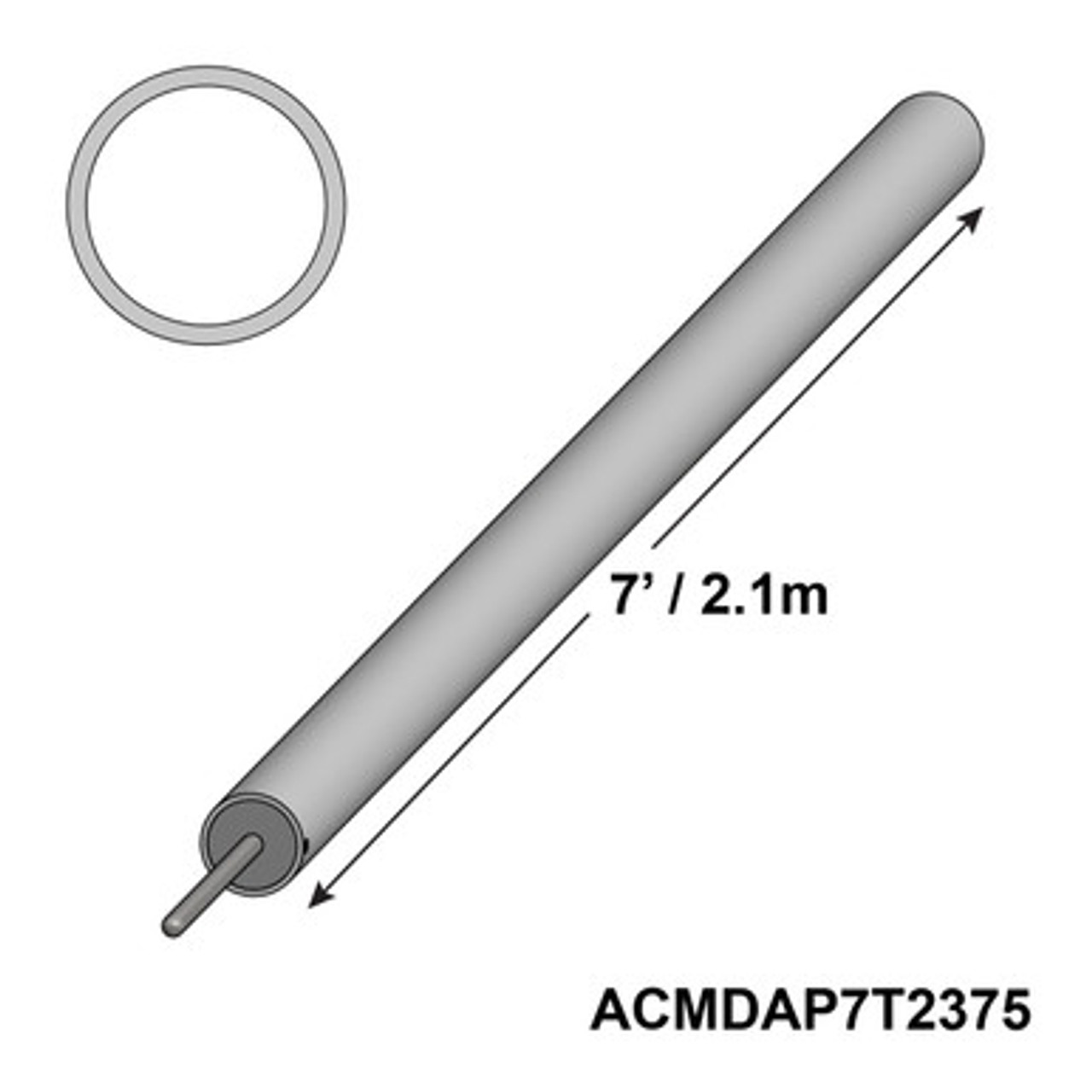

7' Medium Duty Al. Pole Top
The 7' (2.13 m) Medium Duty Aluminum Top Pole is used at the top of the 2 3/8'' sectional center pole. Each pole measures 7' (2.13 m) with a 6" (152.4 mm) swage at the top to connect to the top pole portion. Depending on your tent size, inserts that include a swaged end may need to be inserted between the top and bottom center poles to reach the desired center pole height. This pole is compatible with CELINA's 2 3/8" (60.33 mm) O.D. Center Poles. Having sectional, swaged poles eliminates the hassles and dangers associated with transporting long single-piece poles.
This piece is the top of a medium duty pole:
- Pole Top: 7' (2.13 m) - with 10" (254 mm) top pin
- Pole Bottom: 7' (2.13 m) - with 6" (152.4 mm) swaged top
- Total Height of Pole: 14' (4.27 m), 2 3/8" (60.33 mm) diameter
CELINA provides this type of pole to reduce installation times, costs, and effort for end users.
| Aluminum Pole Specifications | ||
| Outside Diameter | 2.375" | |
| Inside Diameter | 2.0625" | |
| Wall Thickness | 0.156" | |
| Weight | 1.2722 lbs/ft | |
| Strength | 35000 PSI | |
