7' x 20' Cathedral Window Sidewall

7 x 20 Cathedral Window Sidewall for Elegant Visibility and Weather Protection

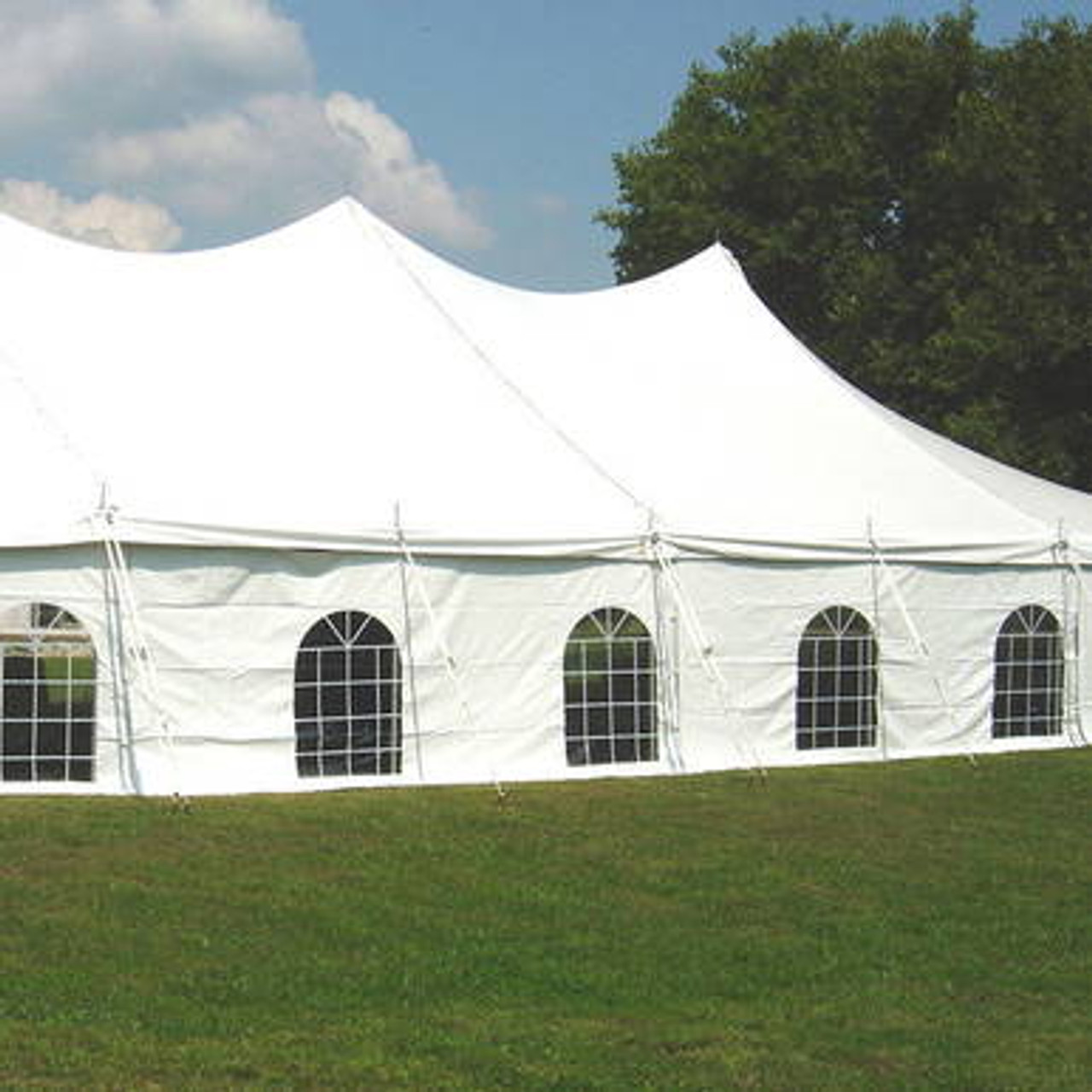

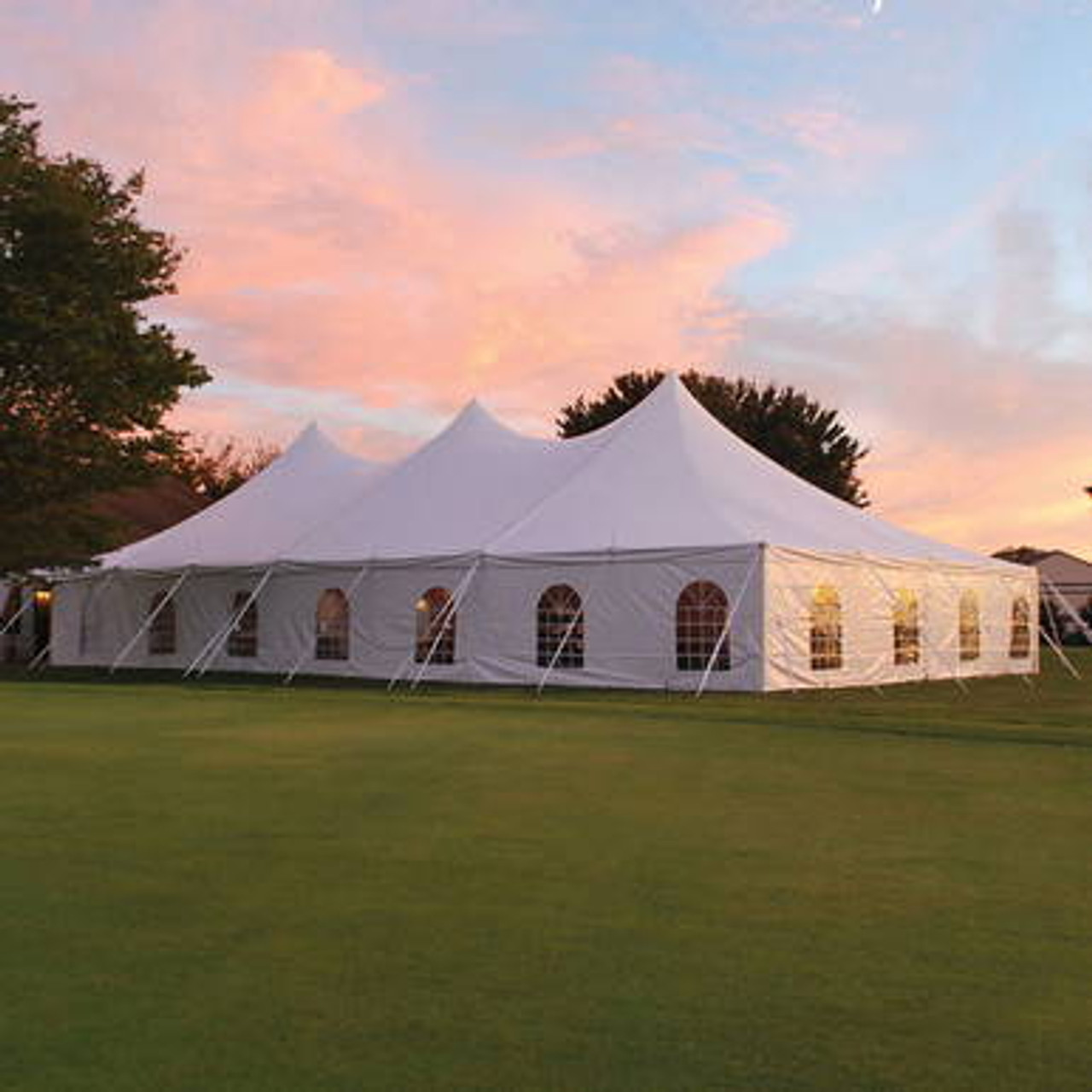

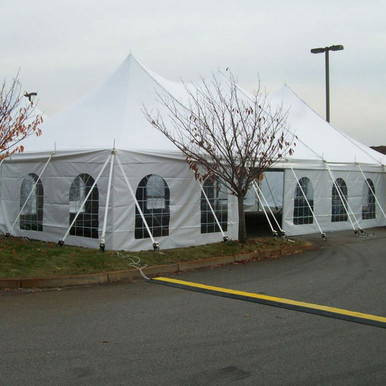

7 x 20 Cathedral Window Sidewall is a premium tent sidewall designed to add light, visibility, and visual interest to professional event installations. Featuring cathedral-style windows, this sidewall enhances the interior experience while maintaining durability and enclosure where it matters most. It is commonly used for weddings, receptions, corporate events, and upscale outdoor gatherings where natural light and presentation are priorities.

The window sections are constructed from double-polish clear PVC vinyl with a non-scratch window line layer between panels, providing clarity while helping protect against abrasion during use and storage. These windows are integrated into a solid 16 oz block-out vinyl sidewall, combining visibility with the strength and weather resistance required for repeated professional installations.

Why Cathedral Window Sidewalls Matter

Window sidewalls allow tents to feel open and inviting without sacrificing protection from wind and rain. Cathedral-style windows add architectural detail and visual height, helping elevate the look of the tent while preserving sightlines to the surrounding environment. When paired with solid sidewalls, cathedral window panels allow crews to create custom layouts that balance light, privacy, and weather control.

Key Features

• Cathedral-style windows for enhanced visibility and aesthetics
• Double-polish clear PVC vinyl window panels
• Non-scratch window line layer between window sections
• Integrated into 16 oz block-out vinyl sidewall for durability
• Color-coded tabs for fast and accurate length identification
• Side release buckles along vertical edges for secure connections
• Overlapping design to reduce wind and rain intrusion

How the 7 x 20 Cathedral Window Sidewall Is Used

Step 1: Attach to the Rope Line

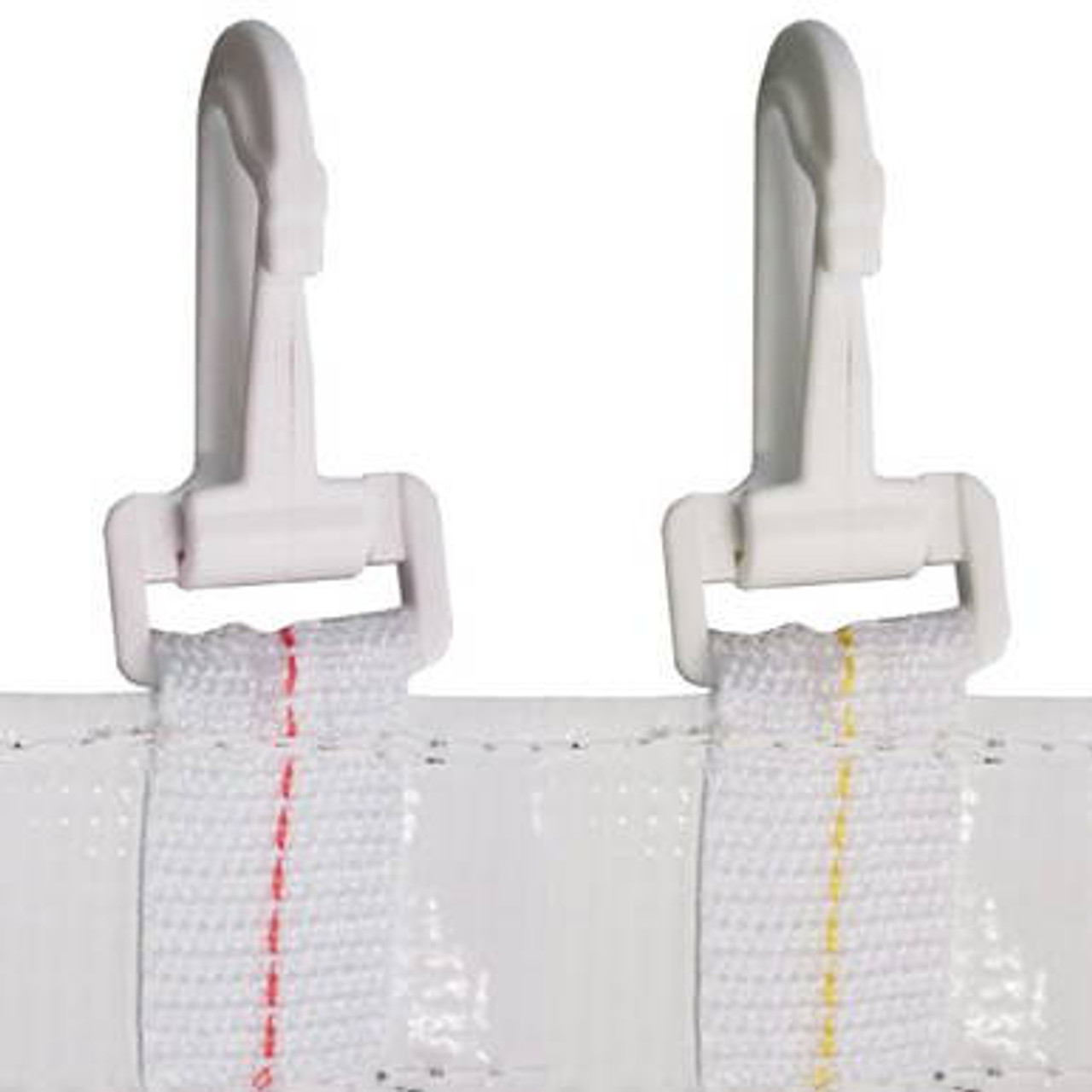

Secure the sidewall to the tent rope line using spring clips attached through the built-in tabs. The tabs are color coded to help crews quickly identify the correct 20 foot panel length.

Step 2: Align the Window Panel

Position the cathedral window section evenly within the tent bay. Proper alignment ensures consistent appearance and effective overlap with adjacent sidewalls.

Step 3: Connect Adjacent Sidewalls

Overlap the vertical edges of adjoining sidewalls and connect them using the side release buckles. This connection improves resistance to wind and rain between panels.

Step 4: Secure the Bottom Edge

Anchor the bottom of the sidewall using compatible staking or weighting methods based on site conditions. Proper bottom anchoring improves stability and overall performance.

Step 5: Final Inspection

Check that all tabs, clips, and buckles are properly secured. Ensure the window panels are clean and seated evenly before the event begins.

Specifications

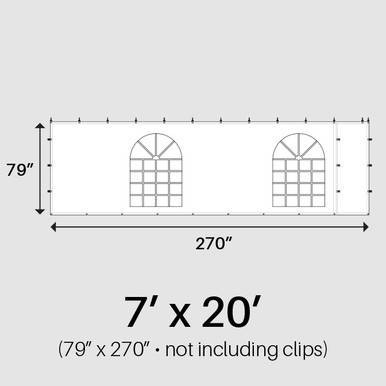

• Size: 7 foot x 20 foot
• Window Material: Double-polish clear PVC vinyl
• Window Protection: Non-scratch window line layer
• Sidewall Material: 16 oz block-out vinyl
• Top Attachment: Color-coded tabs for spring clip connection
• Vertical Connections: Side release buckles

Compatibility

• Frame tents and pole tents with rope line sidewall systems
• Most manufacturers' tent structures
• Sidewall configurations requiring 20 foot bay coverage

What Is Included and What Is Not

• Included: One 7 x 20 cathedral window sidewall with tabs and buckles
• Not Included: Spring clips, stakes, weights, rope line, or additional sidewall panels

Ideal For

• Weddings and formal events requiring natural light
• Receptions and celebrations with scenic surroundings
• Event rental company window sidewall inventory
• Tent layouts combining solid and window sidewalls

Usage Notes

The 7 x 20 Cathedral Window Sidewall is intended for professional tent installations where appearance and weather protection must work together. Always overlap and buckle adjoining sidewalls to improve resistance to wind and rain. While compatible with most tent systems, verify attachment hardware before installation. Regular cleaning and inspection of window panels, tabs, and buckles helps maintain clarity, performance, and appearance across repeated setups and teardowns.
