Frame Tent Liner 20' x 10' Mid

Frame Tent Liner 20 x 10 Mid Section

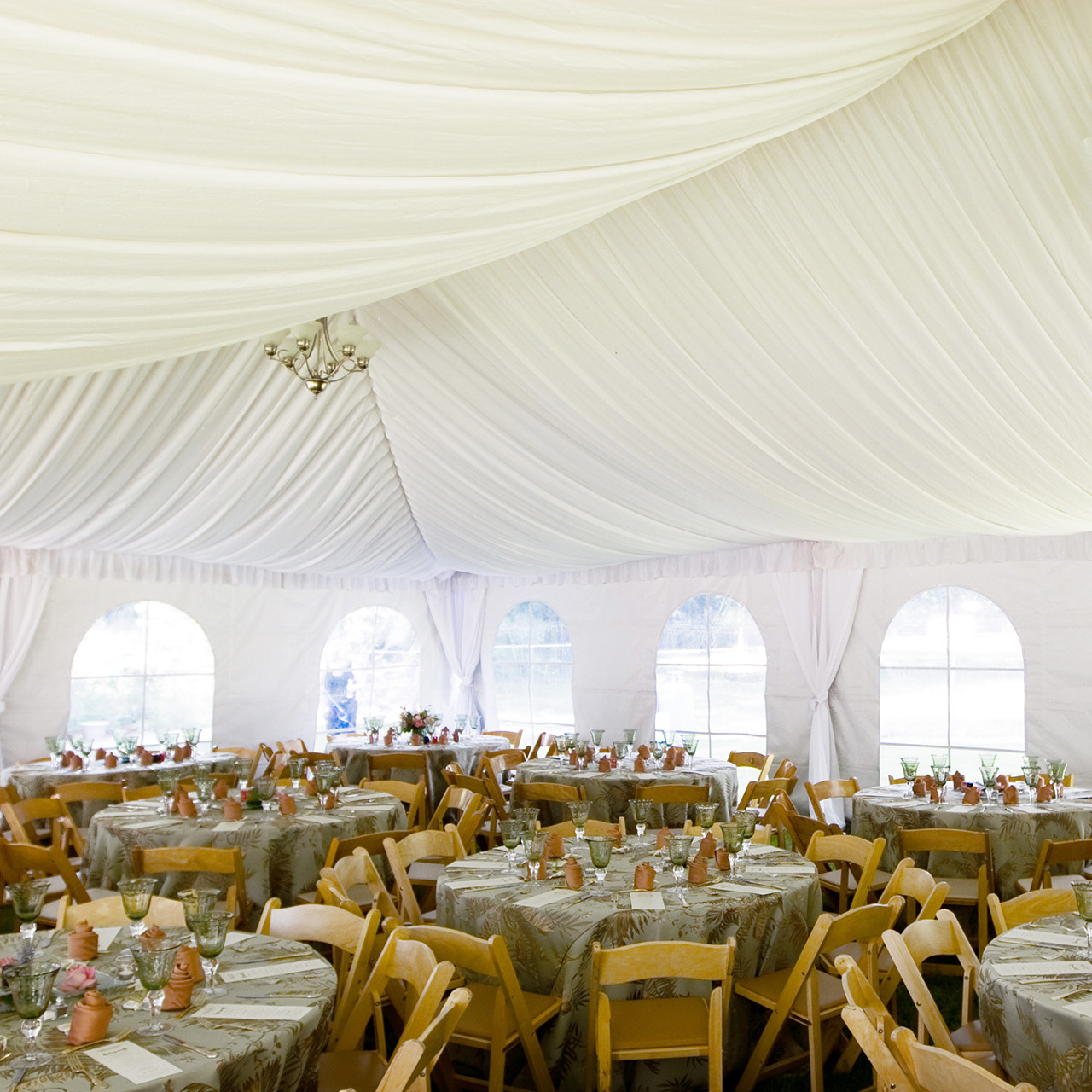

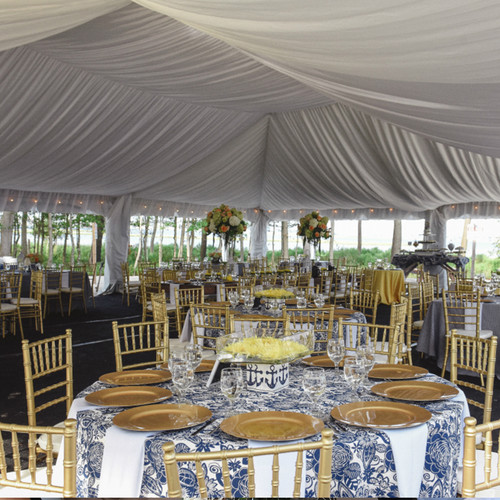

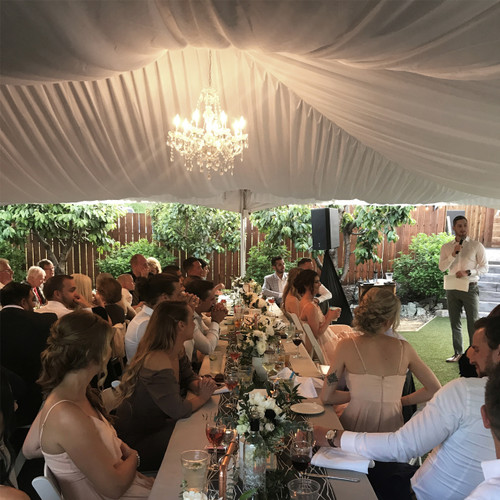

Frame Tent Liner 20 x 10 Mid is a modular liner panel designed to create a continuous, finished ceiling inside 20 foot wide frame tents. Used in combination with 20 x 10 liner end sections, these mid sections allow installers to extend the liner system to match the full length of the tent while maintaining a consistent, elegant appearance throughout the interior.

Part of CELINA's Hi-Pro Tent Liner system, the 20 x 10 mid section is commonly selected by event rental companies and venues looking to upgrade frame tents for weddings, formal receptions, and upscale events. The soft pleated design conceals exposed framework and adds visual depth, transforming a standard tent interior into a refined event space.

Why Frame Tent Liner Mid Sections Matter

Mid sections are the backbone of a modular liner system. They allow a single liner style to scale across different tent lengths without sacrificing symmetry or appearance. By connecting seamlessly between end sections, these panels create a smooth, uninterrupted ceiling that enhances lighting effects, improves acoustics, and elevates the overall guest experience.

Key Features

• Designed for 20 foot wide frame tents
• 10 foot long mid section used to extend liner coverage
• Manufactured from 100 percent flame retardant polyester
• Soft gathered pleats for a finished look right out of the bag
• Neutral white fabric ideal for uplighting and color washes
• Lightweight, washable fabric for repeated professional use
• Compatible with all frame tent systems

How the Frame Tent Liner Mid Sections Are Used

Step 1: Plan the Liner Layout

Determine the full length of the tent and calculate the number of 20 x 10 mid sections needed. Mid sections are used between paired end sections to achieve the desired tent length.

Step 2: Attach to Curtain Rope

Each mid section attaches to the curtain rope along the inside perimeter of the tent frame. This ensures the liner aligns cleanly with the tent structure.

Step 3: Connect Sections Together

Mid sections connect to adjacent liner panels using integrated hook and loop fasteners. This creates a continuous ceiling surface from end to end.

Step 4: Hoist Into Position

Using the provided rope and pulley system, lift the liner into place. Eye bolts and eye nuts built into the system allow for controlled hoisting and proper tensioning.

Step 5: Final Adjustments

Once installed, adjust pleats and alignment as needed. The gathered design typically requires minimal adjustment to achieve a clean, symmetrical finish.

Specifications

• Section Size: 20 foot wide x 10 foot long
• Material: 100 percent flame retardant polyester
• Color: White
• Configuration: Individual mid section panel
• Connection Method: Hook and loop fasteners

Fire Safety and Compliance

• Meets California Fire Marshal Title 19 requirements
• Complies with NFPA 701 flame resistance standards

Compatibility

• Fits all frame tent systems
• Designed for use with 20 x 10 liner end sections
• Compatible with rope and pulley liner installation systems

What Is Included and What Is Not

• Included: One 20 x 10 frame tent liner mid section with required installation hardware
• Not Included: Liner end sections, tent frame, tent top, lighting equipment, or uplighting fixtures

Ideal For

• Weddings and formal receptions
• Corporate events and upscale gatherings
• Event rental company liner packages
• Venues offering enhanced tent interiors
• Installations requiring full-length ceiling coverage

Usage Notes

The Frame Tent Liner 20 x 10 Mid section is intended for professional installation as part of a complete liner system. Always confirm tent dimensions and liner layout before installation. Proper hoisting, secure attachment, and routine fabric inspection help ensure long-term performance and a consistently polished appearance across repeated events.
