Frame Tent Liner 20' x 5' Mid

Frame Tent Liner 20x5 Mid Section ceiling liner for frame tents

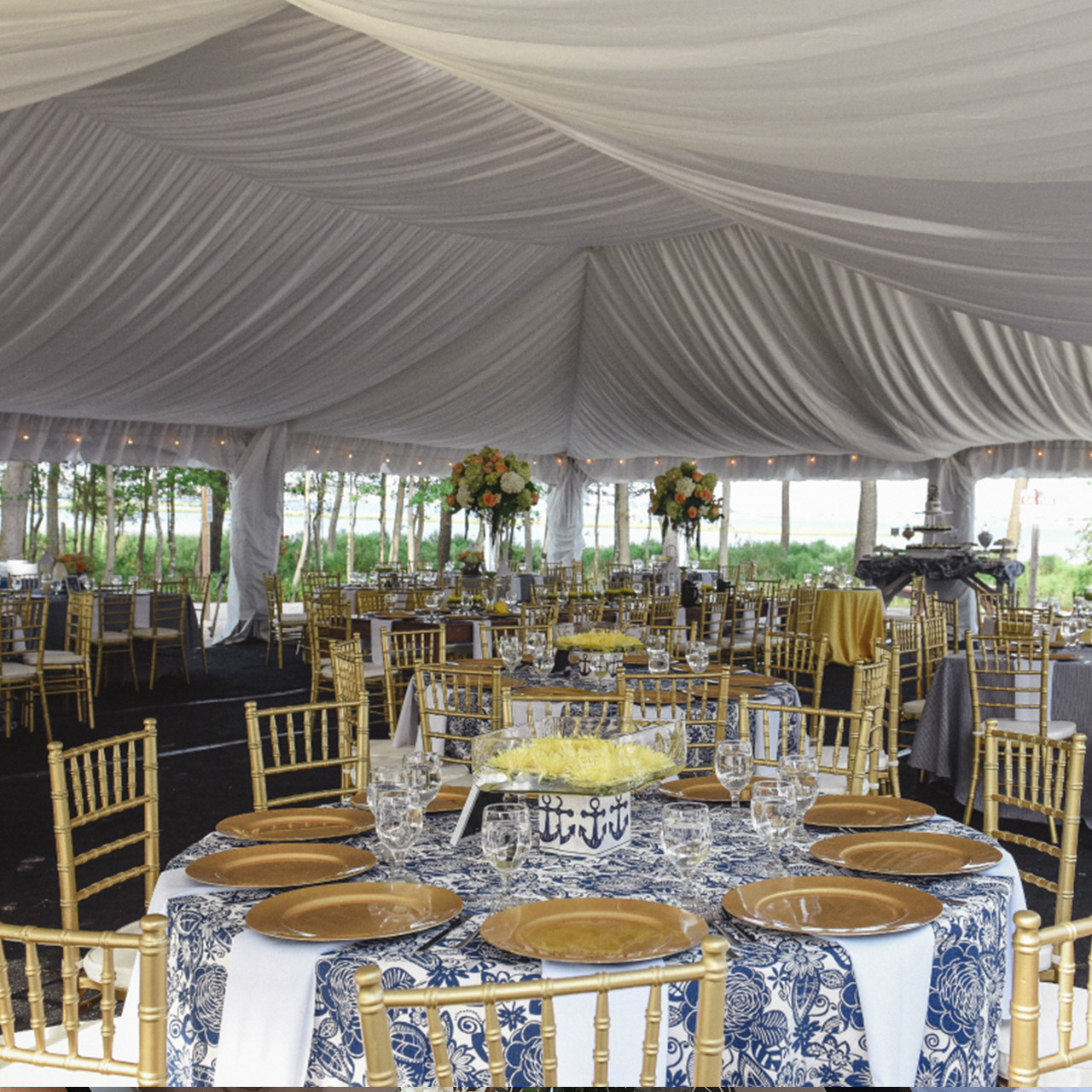

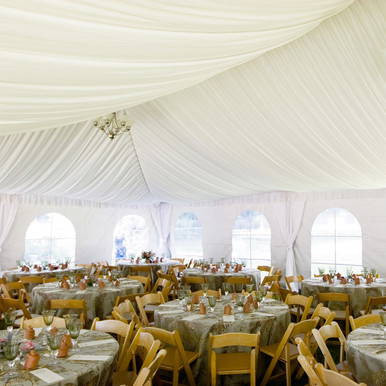

The Frame Tent Liner 20x5 Mid Section is a professional tent liner component designed to enhance the interior appearance of frame tents while covering exposed framework. This mid section liner is used between end sections to achieve the desired tent length, creating a clean, finished ceiling with soft gathered pleats. It is commonly used by event rental companies, installers, and production crews looking to elevate the look of weddings, corporate events, and upscale gatherings.

This white tent liner creates a smooth, continuous ceiling that adds texture and depth without overpowering the space. When paired with uplighting, the fabric can take on a wide range of color washes, making it easy to adapt the tent interior to different event themes and design palettes.

Why this liner matters

Exposed tent frames can distract from an otherwise polished event setup. This 20x5 mid section liner helps hide structural elements while softening the overall atmosphere. It improves visual impact, supports lighting design, and delivers a more refined guest experience with minimal added setup time.

Key features

• Manufactured from 100 percent flame retardant polyester
• Liners and drapes meet California Fire Marshal Title 19 and NFPA 701 standards
• Soft gathered pleats provide a clean, elegant look right out of the bag
• Designed to connect seamlessly with end sections and additional mid sections
• Sections connect using hook and loop fasteners for efficient installation
• Eye bolts and eye nuts allow for hoisting lighting using the liner system
• Attach to the curtain rope along the inside tent perimeter
• Lift into place using a rope and pulley system
• All necessary hardware is provided for installation
• Compatible with any type of tent frame system
• Lightweight, washable fabric in neutral white

How to use and install

Step 1: Prepare the tent interior

Ensure the frame tent is fully installed and that the curtain rope is properly secured along the inside perimeter. This creates the attachment point for the liner system.

Step 2: Attach the mid section

Connect the 20x5 mid section liner to adjacent mid sections or end sections using the integrated hook and loop fasteners. This allows you to build out the liner length based on the tent size.

Step 3: Hoist into position

Use the included eye bolts, eye nuts, rope, and pulley system to lift the liner into place. Once hoisted, adjust the pleats to achieve a smooth and balanced ceiling appearance.

Step 4: Add lighting if needed

The liner system allows for hoisting lighting through the eye bolt hardware, supporting uplighting or overhead lighting designs commonly used in event setups.

Specifications

• Section type: Mid section liner
• Finished size: 20 ft x 5 ft
• Material: 100 percent flame retardant polyester
• Color: White
• Fire compliance: California Fire Marshal Title 19 and NFPA 701
• Connection method: Hook and loop fasteners
• Installation method: Curtain rope with rope and pulley system
• Hardware: Included
• Care: Washable, lightweight fabric

Compatibility and notes

• Designed to work with any tent frame system
• Mid sections are used between end sections to achieve the required tent length
• End sections are sold separately and may be hip or gable style
• This product is a liner section only; tent, lighting, and pulley equipment are not included unless specified elsewhere

Ideal for

• Event rental companies upgrading tent interiors
• Wedding and reception tent installations
• Corporate events and formal gatherings
• Design-focused setups using uplighting and ceiling treatments
