Pinnacle Corner Fitting

The Pinnacle Corner Fitting connects frame legs with the perimeter tubing that forms the edges of the eaves. Hooks on the interior and exterior of the fitting are used for securing cross cables within the tent and for anchoring on the outside. Each...

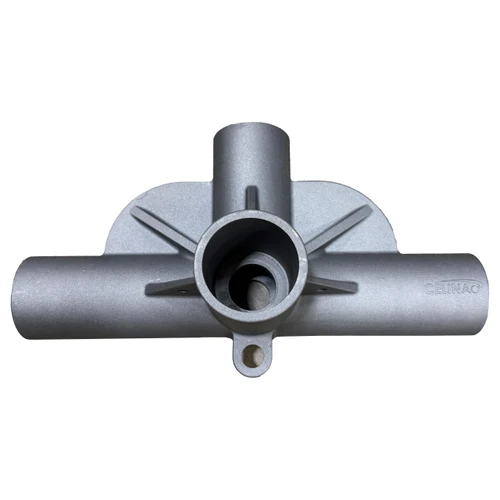

Pinnacle Side T Fitting

Pinnacle Base Plate

Base Plates for a Pinnacle Series Cross Cable Tent are cast aluminum plates to be placed at the bottom of each leg. The leg is inserted into the largest opening, with the hook facing toward the exterior of the tent. Ratchet straps are connected to the...

9'' Pinnacle Spreader Insert

The 9” Pinnacle Spreader Insert is used on 15’ and 20’ Pinnacle Series tents in order to achieve the right length for each side of the tent. One insert is required for every two perimeter tubes; once it is inserted into both tubes, the...

Center Mast Plastic Base

Located at the base of the center mast, the Center Mast Plastic Base has ridges to allow it to be seated securely on the cross cables connected to the frame. Compatible with all sizes and styles of Pinnacle Series Cross Cable Tents, the Center...

10'/15' Pinnacle Mast Bottom

Identical for both 10’ and 15’ Pinnacle Series Cross Cable Tents, the Center Mast Bottom Tube for 10' and 15' Tents are the bottom portion of the mast tubing used in Pinnacle Tents. Having a separated mast bottom allows you to adjust the...

20' Pinnacle Mast Bottom

The Center Mast Bottom Tube for 20’ Pinnacle Series High Peak Frame Tents can't be used on other sizes of Pinnacle tents, as they won't provide enough length to properly tension the tent top. Each bottom tube has a set of holes at each...

10' Pinnacle Mast Top

The Center Mast Top Tube for 10’ Pinnacle Series Cross Cable Tents is one third of the complete center mast. Each Mast portion is fitted into the connecting mast pieces and secured using shoulder pins. Multiple holes in the tube allow for variable...

15' Pinnacle Mast Top

The Center Mast Top Tube for 15’ Pinnacle Series Cross Cable Tents is one third of the complete center mast. Each Mast portion is fitted into the connecting mast pieces and secured using shoulder pins. Multiple holes in the tube allow for variable...

20' Pinnacle Mast Top

The Center Mast Top Tube for 20’ Pinnacle Series Cross Cable Tents is one third of the complete center mast. Each Mast portion is fitted into the connecting mast pieces and secured using shoulder pins. Multiple holes in the tube allow for variable...

Pinnacle Pole Pin

Pole Pin for Pinnacle Series Cross Cable Tent. This pin is compatible with all sizes. This pin measures 1.125'' diameter by 14'' long. This is the pin that protrudes through the top of the tent top and is attached to the end of the center mast.

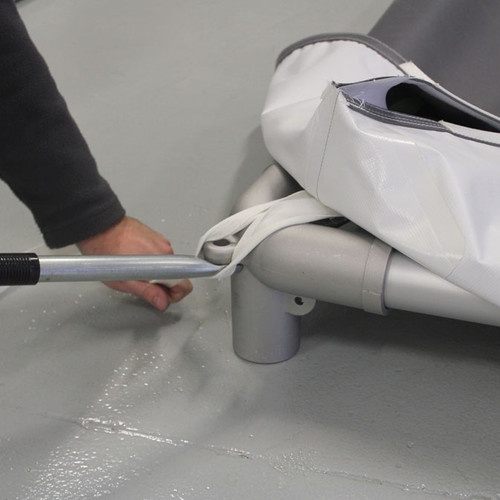

Pinnacle Tent Pry Bar

The Pinnacle Tent Pry Bar aids in tent top installation by giving you a lever with which to slide the final corner loop onto the tent frame. The bar’s end is curved to fit snugly over the pinnacle tent’s corner fitting without endangering...
