Pinnacle Corner Fitting

Write a Review

View Description & Specifications

sku: CC01COR

SKU:: CC01COR
UPC:
Weight:: 6.00 LBS
Tent Series:: Pinnacle Tents

Choose Options

Current Stock:

Quantity:

Adding to cart… The item has been added

$43.11

24/7 Support

Day or night, our team is just a chat away.

easy installation

Get ready fast with step-by-step instructions!

fast shipping

Most orders ready to ship in 1-2 business days.

Extensive Warranty

Extensive warranty available on most products.

24/7 Support

Day or night, our team is just a chat away.

easy installation

Get ready fast with step-by-step instructions!

fast shipping

Most orders ready to ship in 1-2 business days.

Extensive Warranty

Extensive warranty available on most products.

Overview

Overview

Product Description

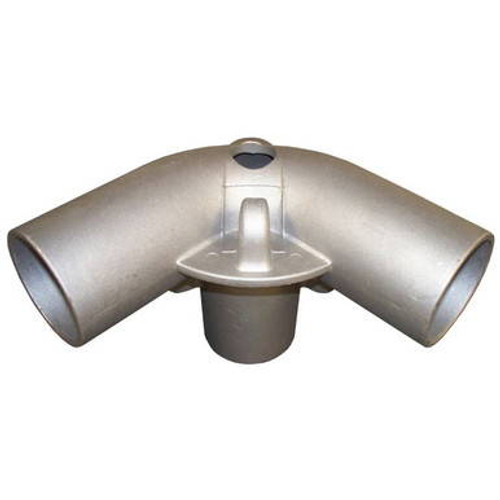

The Pinnacle Corner Fitting connects frame legs with the perimeter tubing that forms the edges of the eaves. Hooks on the interior and exterior of the fitting are used for securing cross cables within the tent and for anchoring on the outside. Each corner fitting is cast from aluminum, and angled according to the style of Pinnacle Series Cross Cable Tent it is meant for. All Pinnacle Series Cross Cable Tent fittings are interchangeable with Pinnacle Tent fittings from other manufacturers.

Aluminum Specifications
Outside Diameter	3.06"	7.77 cm
Inside Diameter	2.56"	6.5 cm
Wall Thickness	0.25"	6.35 mm
Weight	6.0 lbs.	2.72 kg

Specifications

Width

15ft. / 4.5m

Length

15ft. / 4.5m

Area

225 ft² / 20 m²

Eave Height

7' / 2.13m | 8' / 2.4m

Overall Height

11'4" / 3.45m | 12'4" / 3.8m

Pitch

3'6" / 1.07m

Complete Weight Aluminum

210 Lbs. / 95 Kg. | 215 Lbs. / 98 Kg.

Complete Weight Galvanized

232 Lbs. / 105 Kg. | 238 Lbs. / 108 Kg.

Series / Brand

Classic

Class

Pole

Center Pole

Yes

Style / Shape

Traditional

Expandable

Custom Printing Available

Yes

Fabric Material

PVC Coated Polyester

Fabric Material Weight

16 oz. / yd2 / 540 gsm

Fabric Translucency

Blockout

Water Repellency

Waterproof

Flame Resistant

Yes

UV Resistant

Yes

Mold and Mildew Resistant

Yes

Frame / Pole Material

Aluminum OR Galvanized

Longest Component

7'10"/ 2.4m | 8'10" / 2.7m

Persons required for setup

Occupancy

23 Sit Down Dinner - 38 Cathedral Seating

Literature

Warranty

CELINA guarantees this product to be free from defects in materials and workmanship 1 year from the date of purchase. Limitations apply. Review the Product Manual for more information on the warranty.

If a printing option is chosen. The following warranty will apply to printing:

Inks used in CELINA’s manufacturing processes are made with commercial grade pigments designed to resist color fading for 2 years. Colorfastness will vary depending on the products exposure to direct sunlight.
