1'' x 42'' Ratchet Bottom

1'' x 42'' Ratchet Assembly Bottom for Pinnacle Series Cross Cable Tents

The 1'' x 42'' Ratchet Assembly Bottom is a dedicated anchoring component used with Pinnacle Series Cross Cable Tents. This assembly secures the tent top to the base plates, providing controlled tension and a reliable connection point during installation.

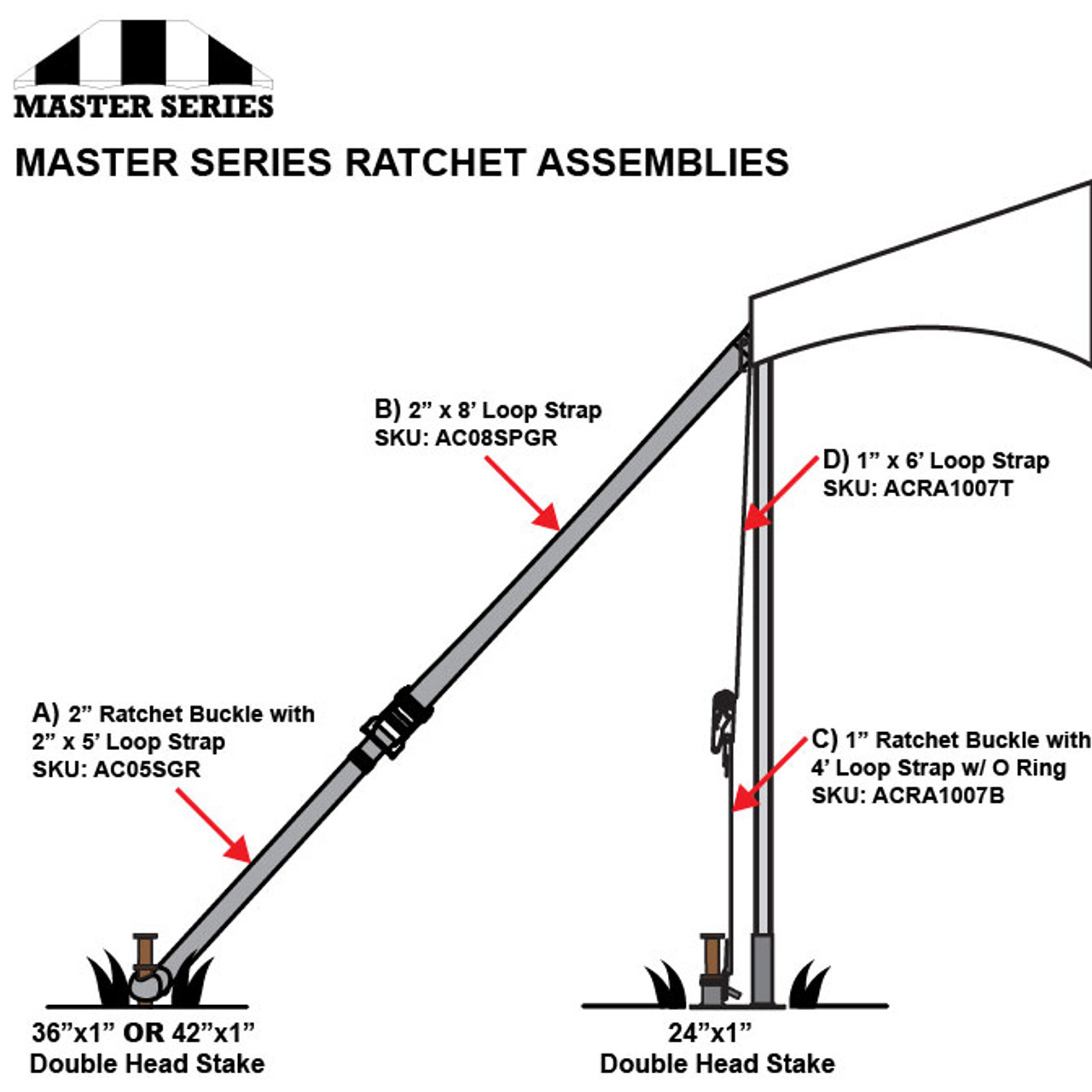

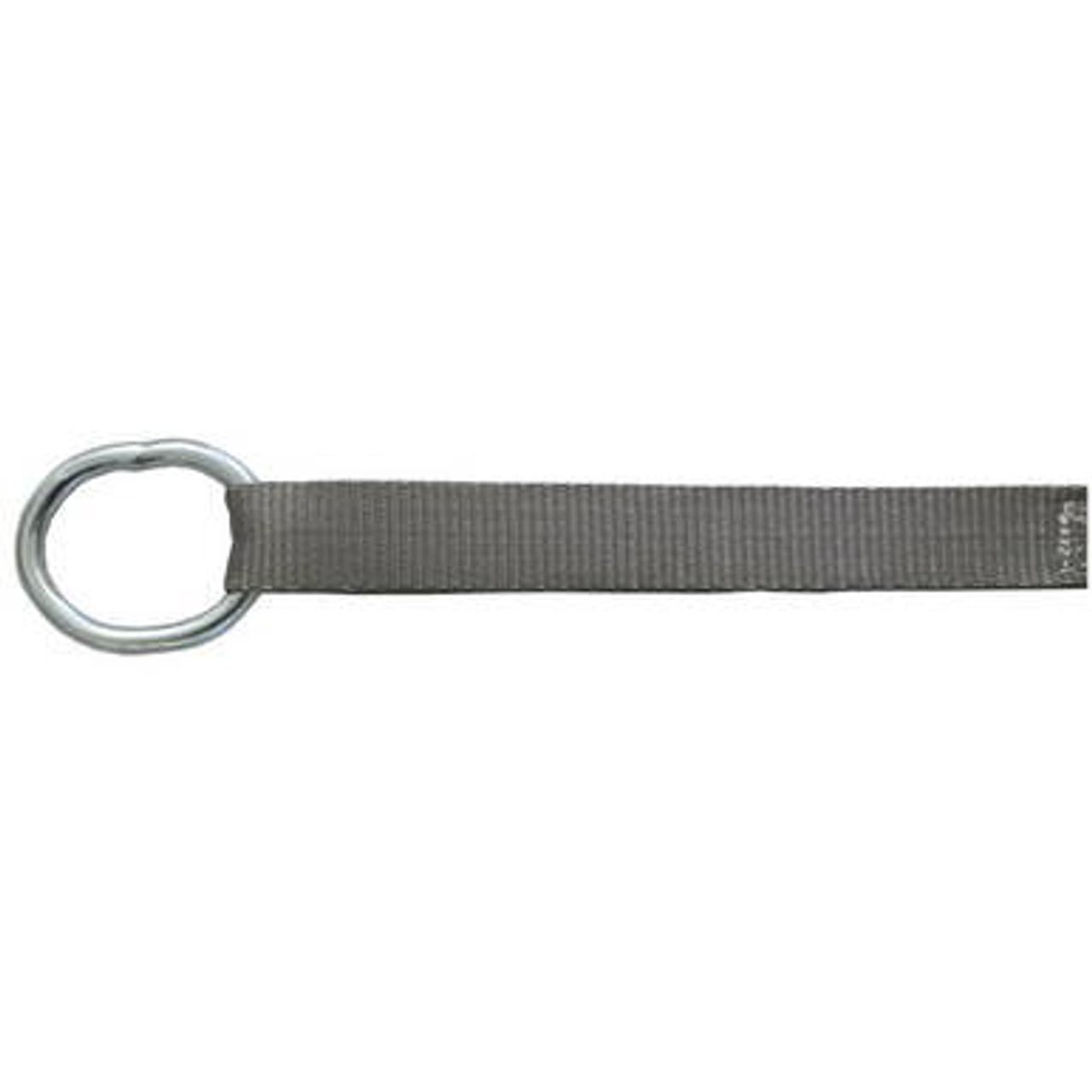

Constructed from durable 1'' gray webbing, this ratchet bottom features a 1'' ratchet buckle on one end and a 1.5'' O-ring on the opposite end. The O-ring end connects directly to the base plate, while the ratchet end interfaces with the plain strap from the top portion of the assembly. All hardware is finished in silver for consistent appearance and weather resistance.

Purpose and Function

On Pinnacle Series Cross Cable Tent systems, precise tensioning is critical for maintaining structural alignment and fabric security. This ratchet bottom serves as the lower half of the anchoring assembly, allowing installers to draw the tent top down evenly and lock it into position at the base plate.

The compact 42'' length is designed specifically for this application, helping ensure proper geometry between the tent top, cables, and base plates without excess slack.

Key Features

• Designed specifically for Pinnacle Series Cross Cable Tents
• 1'' ratchet buckle for controlled, secure tensioning
• Integrated 1.5'' O-ring for direct base plate attachment
• Durable 1'' gray webbing for professional use
• Silver-finished hardware for corrosion resistance
• Purpose-built length for correct system geometry

Specifications

• Strap Width: 1'' (25.4 mm)

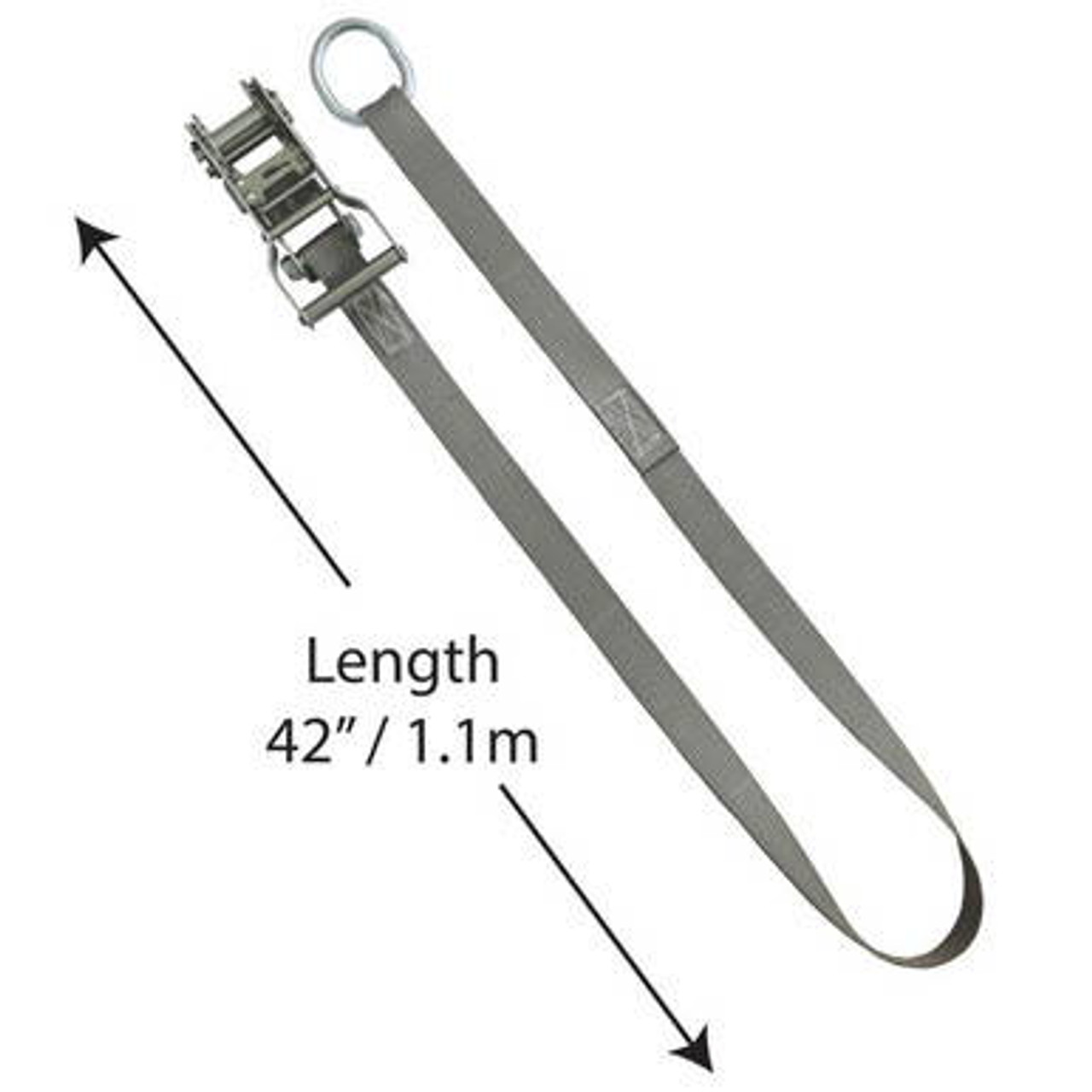

• Overall Length: 42'' (1,066.8 mm)
• Ratchet Size: 1''
• O-Ring Size: 1.5''
• Weight Rating: 4,000 lbs (1,814.37 kg)
• Hardware Finish: Silver

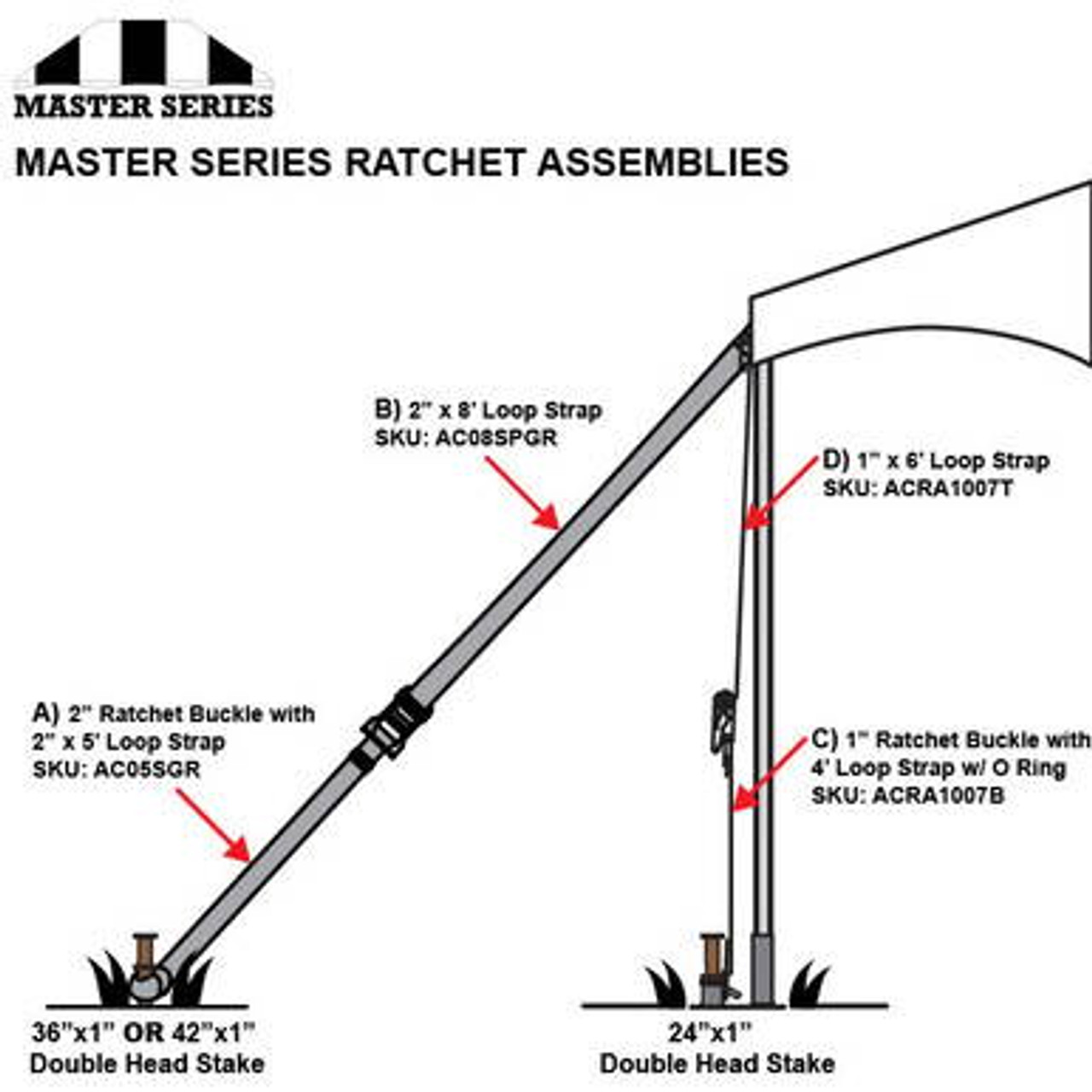

How It Is Used

Step 1: Attach to Base Plate

Hook the 1.5'' O-ring end of the ratchet assembly bottom onto the designated base plate connection point.

Step 2: Connect to Top Strap

Thread the plain strap from the top portion of the anchoring assembly through the 1'' ratchet.

Step 3: Apply Tension

Operate the ratchet to draw the tent top down and secure it firmly to the base plate.

Step 4: Final Adjustment

Confirm even tension across all connection points before completing the installation.

Ideal For

• Pinnacle Series Cross Cable Tent installations
• Professional tent rental and installation crews
• Applications requiring precise base plate anchoring
• Systems where controlled ratchet tension is required

Compatibility Notes

• Designed for use with Pinnacle Series Cross Cable Tent systems
• Functions as the bottom portion of a two-part ratchet assembly
• Not intended for use as a standalone anchoring solution

What Is Included

• One 1'' x 42'' Ratchet Assembly Bottom with O-ring

The 1'' x 42'' Ratchet Assembly Bottom is a critical component for securing Pinnacle Series Cross Cable Tents. Its purpose-built design, durable materials, and controlled tensioning capability help ensure stable, professional-grade installations.
