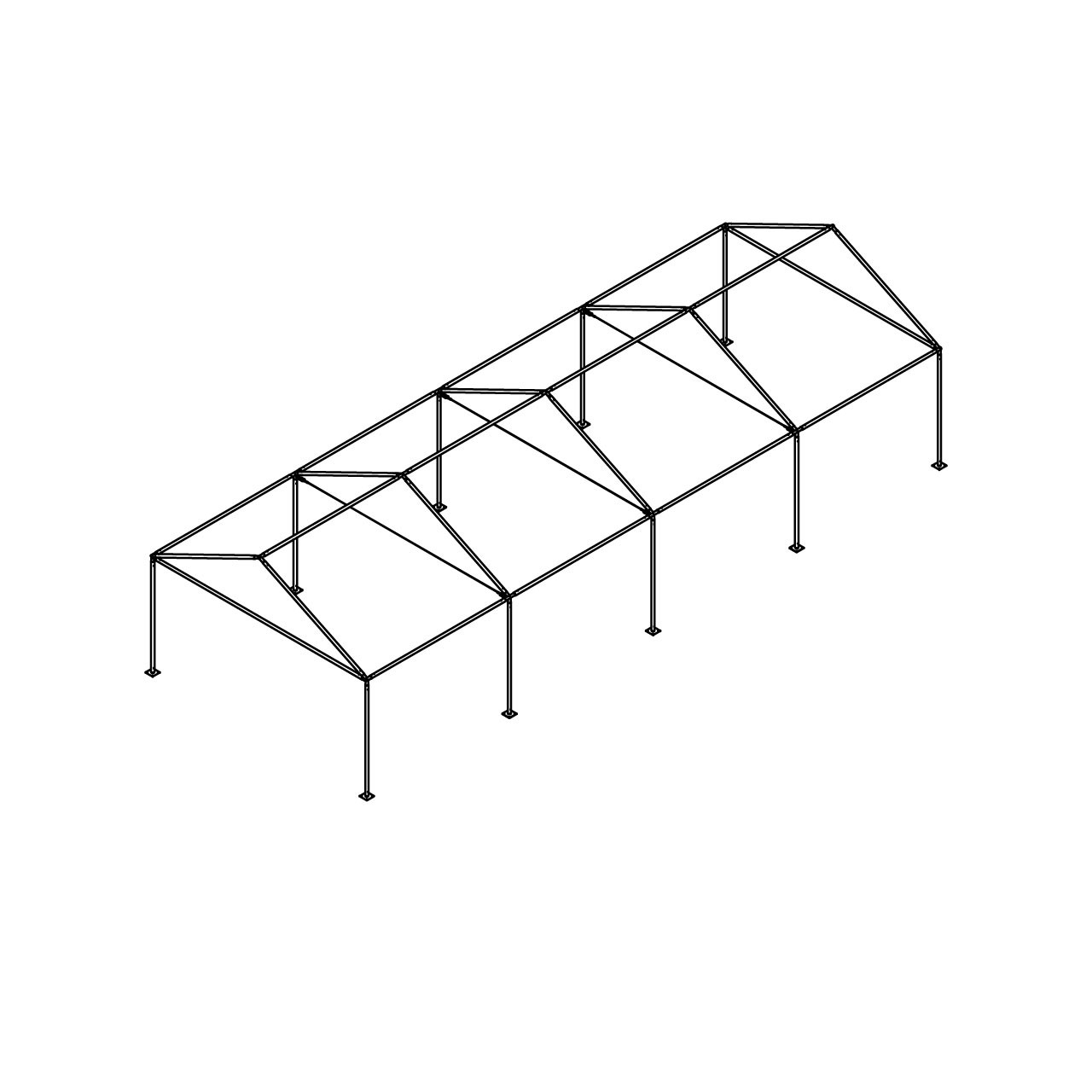

15' x 40' Gable Series Frame

15' x 40' Gable Series Frame

The 15' x 40' Gable Series Frame is a specialized commercial-grade hardware system designed to create a distinct, elongated "house-style" architectural profile. For rental companies and event planners, this frame provides the essential structural skeleton required to support a 600-square-foot gable-ended canopy. Unlike traditional hip-roof frames that slope on all four sides, the Gable Series features vertical triangular end-caps. This design provides a flat, prominent surface at each end, making it the premier choice for high-visibility branding, custom signage, or creating a professional, sheltered corridor. This kit includes all the necessary aluminum rafters, spreaders, and heavy-duty steel fittings required to maintain a rigid 40-foot span, providing a stable and professional event setup.

The Gable Series is engineered to provide an open, airy feel with a consistent ridge height across the entire 40-foot length. Because this is a frame-supported system, it does not require center poles, maximizing the 600 square feet of usable space for banquet seating, vendor rows, or sheltered walkways. This hardware is optimized for tent installation on various surfaces, including concrete, decks, and asphalt, where staking may be limited. This frame is precisely calibrated to ensure the correct pitch for water runoff while maintaining the sharp, clean lines required for modern logistics and rental operations.

Why the 15' x 40' Gable Series Frame Matters

The 15' x 40' Gable Series Frame matters because it offers a unique functional and visual alternative to the standard "pyramid" look of traditional event tents. For businesses and rental companies, the vertical gable ends provide a superior canvas for high-impact graphics or customized maintenance-friendly vinyl. Structurally, the 15-foot width provides extra depth compared to standard walkway tents, making it ideal for double-sided vendor rows or wider pedestrian paths. For logistics teams, the standardized West Coast Style tubing lengths ensure that the frame can be easily integrated into existing inventories, simplifying warehouse workflows and ensuring rapid deployment for specialized events.

Key Features

• Clear-Span Elongated Design: Provides a completely open 15' x 40' interior with no center poles, maximizing space for equipment and guest flow.
• Gable-End Architecture: Features vertical end-caps that offer a unique aesthetic and a prime surface for custom branding and signage.
• High-Strength Aluminum Tubing: Manufactured from corrosion-resistant, structural-grade 6061-T6 aluminum for long-term durability in the rental industry.
• Interchangeable Components: Designed to work with standard West Coast Style fittings, allowing for easy teardown and component replacement.
• Heavy-Duty Steel Fittings: Features welded steel joints with a zinc-plated finish to prevent rust and ensure structural integrity over a 40-foot length.
• Versatile Mounting Options: Can be secured with stakes, water barrels, or concrete weights, making it suitable for almost any urban or rural venue.

Specifications

Ideal for / Best Uses

• Upscale Walkways: Perfect for creating wide, weather-protected paths for guests between event buildings or parking areas.
• Double-Sided Vendor Rows: The 15-foot depth is ideal for festivals where stalls need more interior workspace.
• Sidewalk Hospitality: Provides a professional, "built-in" look for hotels or restaurants looking to expand outdoor lounge spaces.
• Branded Exhibition Tunnels: The gable ends and elongated shape create a high-impact "walk-through" experience for corporate brand activations.

Compatibility and Inclusions

The 15' x 40' Gable Series Frame is specifically engineered for Gable Series vinyl tops. It utilizes standard 2" diameter aluminum tubing and is compatible with most standard West Coast Style base plates and anchoring hardware. Please note that this product includes the metal frame only; it does NOT include the vinyl tent top, side curtains, or anchoring equipment. For a secure event setup, proper anchoring is mandatory regardless of surface type to prevent wind lift. During maintenance, inspect all spring buttons and welded joints to ensure the continued safety and structural longevity of your 40-foot gable inventory.
