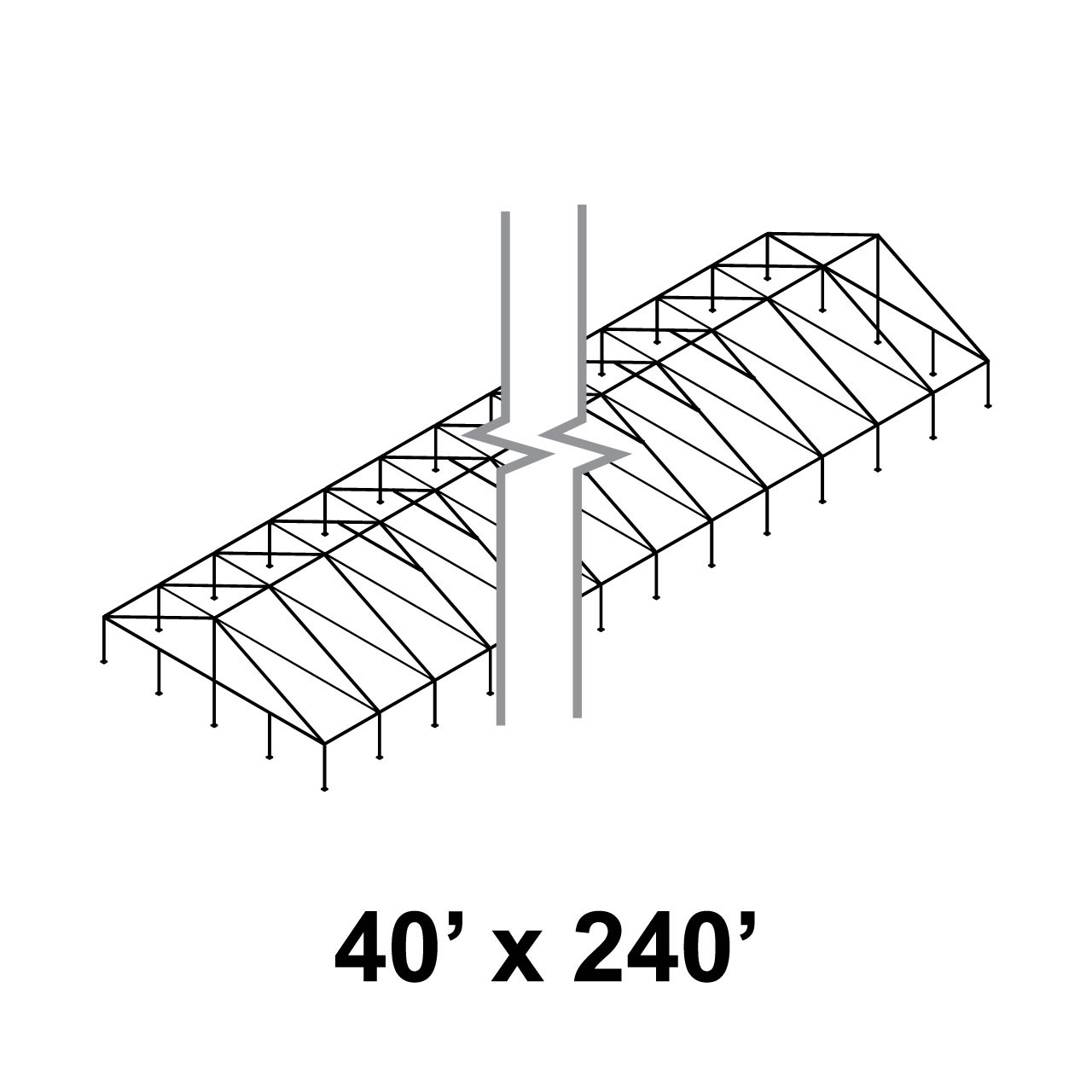

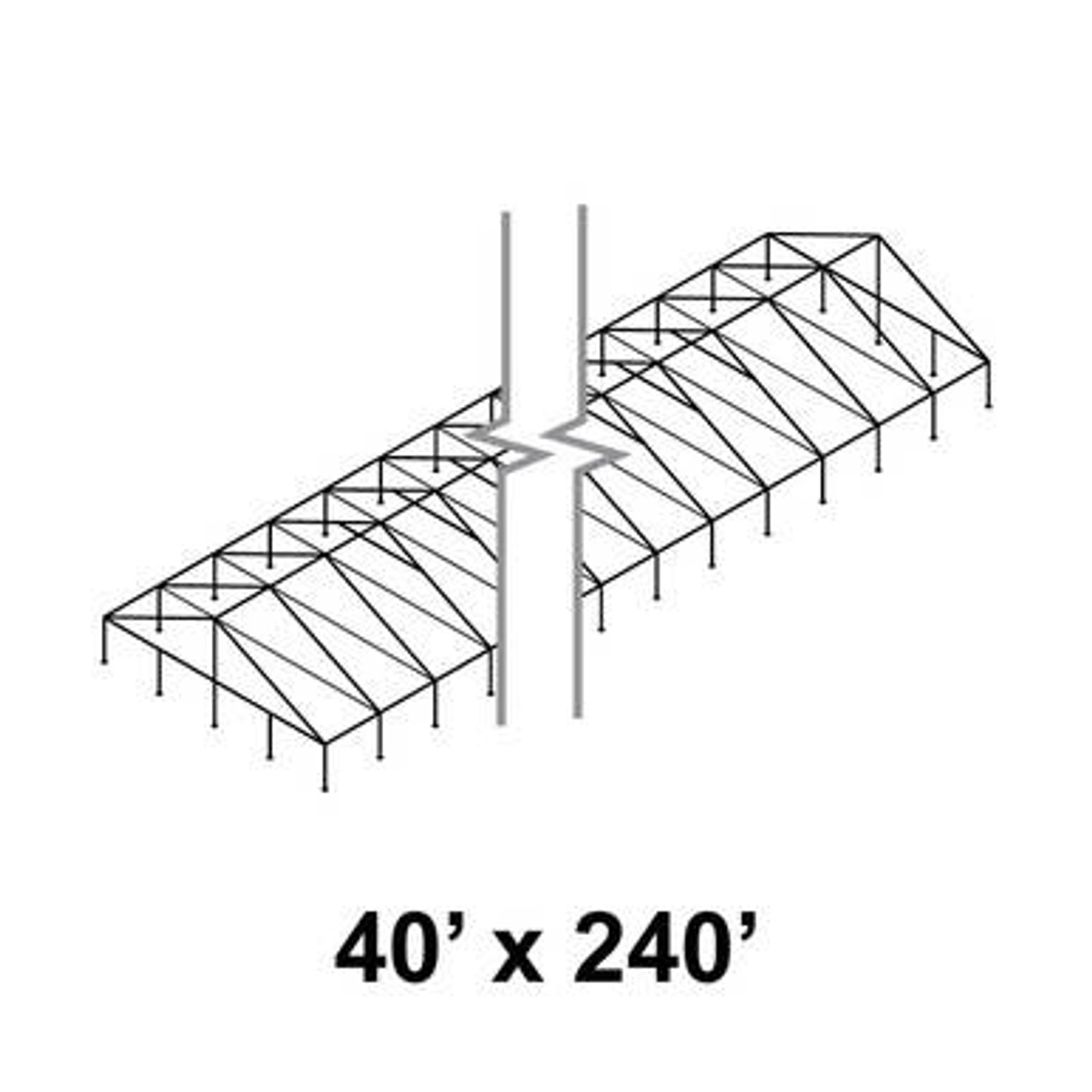

40' x 240' Gable Series Frame

40' x 240' Gable Series Frame

The 40' x 240' Gable Series Frame is an ultra-industrial, clear-span hardware system designed to support a massive 9,600-square-foot "house-style" architectural canopy. For rental companies and large-scale event planners, this frame provides the essential structural skeleton required to create an expansive, gable-ended shelter with a professional profile. Unlike traditional hip-roof frames that slope downward on all four sides, the Gable Series features vertical triangular end-caps. This design provides a massive, flat surface at each end, making it the premier choice for high-visibility branding, custom signage, or creating a seamless, flush connection against building facades. This kit includes all the necessary heavy-duty aluminum rafters, spreaders, and reinforced steel fittings required to maintain a rigid 240-foot span, providing a stable and professional event setup.

The Gable Series is engineered to provide an open, airy feel with a consistent ridge height across the entire 240-foot length, offering significantly more interior volume at the ends than standard frame tents. Because this is a frame-supported system, it does not require center poles, maximizing the 9,600 square feet of usable space for massive banquet seating, elongated retail showrooms, or sheltered industrial walkways. This hardware is optimized for tent installation on various surfaces, including concrete, decks, and asphalt, where staking may be limited. This frame is precisely calibrated to ensure the correct pitch for water runoff while maintaining the sharp, clean lines required for modern logistics and high-capacity rental operations.

Why the 40' x 240' Gable Series Frame Matters

The 40' x 240' Gable Series Frame matters because it provides a professional, structural solution for high-capacity events requiring a specific visual aesthetic and immense clear-span coverage. For businesses and rental companies, the vertical gable ends offer a superior canvas for high-impact graphics or customized maintenance-friendly vinyl. Structurally, the 40-foot width provides a substantial footprint that can accommodate large crowds and complex floor plans, while the 240-foot length makes it ideal for major regional festivals or creating weather-protected corridors between distant permanent structures. For logistics teams, the standardized West Coast Style tubing lengths ensure that the frame can be easily integrated into existing inventories, simplifying warehouse workflows and ensuring rapid deployment for massive linear events.

Key Features

• Clear-Span Architecture: Provides a completely open 40' x 240' interior with no center poles, maximizing space for furniture, staging, and guest movement.
• Gable-End Design: Features vertical end-caps that offer a unique architectural look and a prime surface for custom branding and signage.
• High-Strength Aluminum Tubing: Manufactured from corrosion-resistant, structural-grade 6061-T6 aluminum for long-term durability in the rental industry.
• Interchangeable Components: Designed to work with standard West Coast Style fittings, allowing for easy teardown and component replacement.
• Heavy-Duty Steel Fittings: Features reinforced, welded steel joints with a zinc-plated finish to prevent rust and ensure structural integrity over an immense 240-foot length.
• Versatile Mounting: Can be secured with stakes, water barrels, or concrete weights, making it suitable for almost any urban or rural venue.

Specifications

Ideal for / Best Uses

• Major Regional Festivals: Provides the necessary structural support for massive hospitality zones or community dining halls.
• Massive Corporate Galas: The gable end provides a natural "backdrop" look for speakers, stages, and high-end AV equipment in a wide-span space.
• Branded Trade Show Pavilions: The vertical ends allow for nearly 10,000 square feet of coverage with maximum visibility for corporate logos at entry points.
• Industrial Sheltered Walkways: Provides an open, high-volume space for premium guest experiences or protected equipment transit at major venues.

Compatibility and Inclusions

The 40' x 240' Gable Series Frame is specifically engineered for Gable Series vinyl tops. It utilizes standard 2" diameter aluminum tubing (or larger reinforced sections) and is compatible with most standard West Coast Style base plates and anchoring hardware. Please note that this product includes the metal frame only; it does NOT include the vinyl tent top, side curtains, or anchoring equipment. For a secure event setup, proper anchoring is mandatory regardless of surface type to prevent wind lift. During maintenance, inspect all spring buttons and welded joints to ensure the continued safety and structural longevity of your 240-foot gable inventory.
