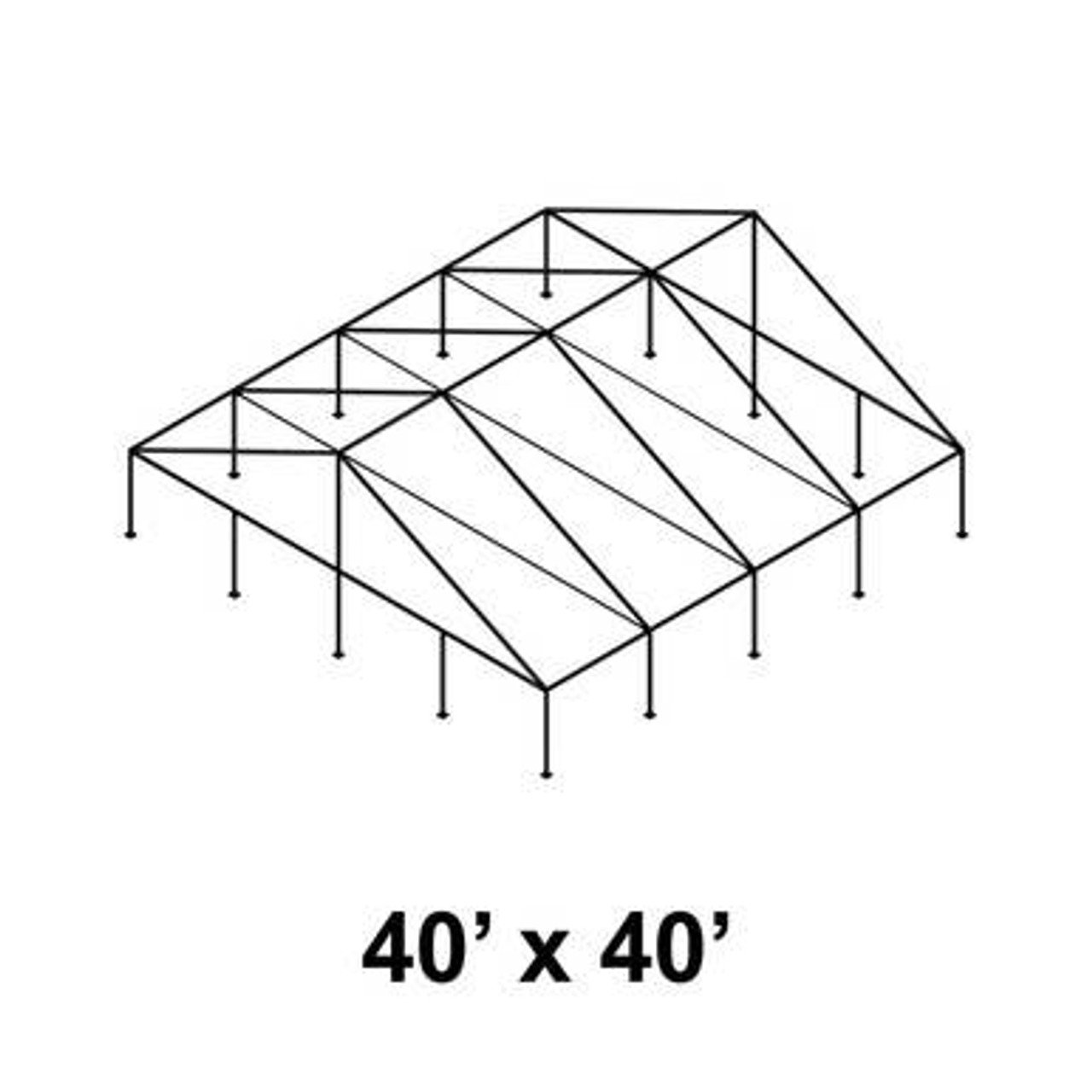

40' x 40' Gable Series Frame

40' x 40' Gable Series Frame

The 40' x 40' Gable Series Frame is a heavy-duty commercial hardware system designed to support a 1,600-square-foot "house-style" event structure. For rental companies and professional event planners, this frame serves as the essential structural skeleton required to create a wide-span, gable-ended canopy. Unlike standard hip-roof frames that slope downward on all four sides, the Gable Series features vertical triangular end-caps. This architectural design provides a flat, prominent vertical surface at each end, making it the premier choice for high-visibility branding, custom signage, or creating a seamless, flush connection against existing buildings. This kit includes all the necessary 2" diameter aluminum rafters, spreaders, and reinforced steel fittings required to maintain a rigid 40-foot square footprint, providing a stable and professional event setup.

The Gable Series is engineered to provide an open, airy feel with a consistent ridge height across the structure. Because this is a frame-supported system, it does not require center poles, maximizing the 1,600 square feet of usable space for unobstructed banquet seating, large-scale vendor displays, or sheltered stage areas. This hardware is optimized for tent installation on various surfaces, including concrete, decks, and asphalt, where traditional staking may be limited. This frame is precisely calibrated to ensure the correct pitch for efficient water runoff while maintaining the sharp, modern aesthetic required for high-end logistics and rental operations.

Why the 40' x 40' Gable Series Frame Matters

The 40' x 40' Gable Series Frame matters because it offers a unique functional and visual alternative to the standard "pyramid" look of traditional 40-wide frame tents. For businesses and rental companies, the vertical gable ends provide a superior canvas for high-impact graphics or customized maintenance-friendly vinyl. Structurally, the 40-foot width provides a substantial "room" feel, making it ideal for patio extensions or temporary showrooms where a standard tent might feel too temporary. For logistics teams, the standardized West Coast Style tubing lengths ensure that the frame can be easily integrated into existing inventories, simplifying warehouse workflows and ensuring rapid deployment for corporate or private events.

Key Features

• Clear-Span Wide Design: Provides a completely open 40' x 40' interior with no center poles, maximizing floor space for guests and equipment.
• Gable-End Architecture: Features vertical end-caps that offer a distinct architectural look and a prime surface for custom branding and signage.
• High-Strength Aluminum Tubing: Manufactured from corrosion-resistant, structural-grade 6061-T6 aluminum for long-term durability in the rental industry.
• Interchangeable Components: Designed to work with standard West Coast Style fittings, allowing for easy teardown and component replacement.
• Heavy-Duty Steel Fittings: Features welded steel joints with a zinc-plated finish to prevent rust and ensure structural integrity.
• Versatile Mounting Options: Can be secured with stakes, water barrels, or concrete weights, making it suitable for almost any urban or rural venue.

Specifications

Ideal for / Best Uses

• VIP Reception Halls: Creates a sophisticated, house-like environment for high-end galas and corporate mixers.
• Building Extensions: The vertical gable ends allow the tent to be placed flush against a permanent structure for seamless transitions.
• Branded Showrooms: Perfect for automotive displays or product launches where large vertical graphics are required at the entrance.
• Upscale Dining Tents: Provides a professional, "room-like" feel for restaurant patio expansions or wedding catering zones.

Compatibility and Inclusions

The 40' x 40' Gable Series Frame is specifically engineered for Gable Series vinyl tops. It utilizes standard 2" diameter aluminum tubing and is compatible with most standard West Coast Style base plates and anchoring hardware. Please note that this product includes the metal frame only; it does NOT include the vinyl tent top, side curtains, or anchoring equipment. For a secure event setup, proper anchoring is mandatory regardless of surface type to prevent wind lift. During maintenance, inspect all spring buttons and welded joints to ensure the continued safety and structural longevity of your 40-foot gable inventory.
