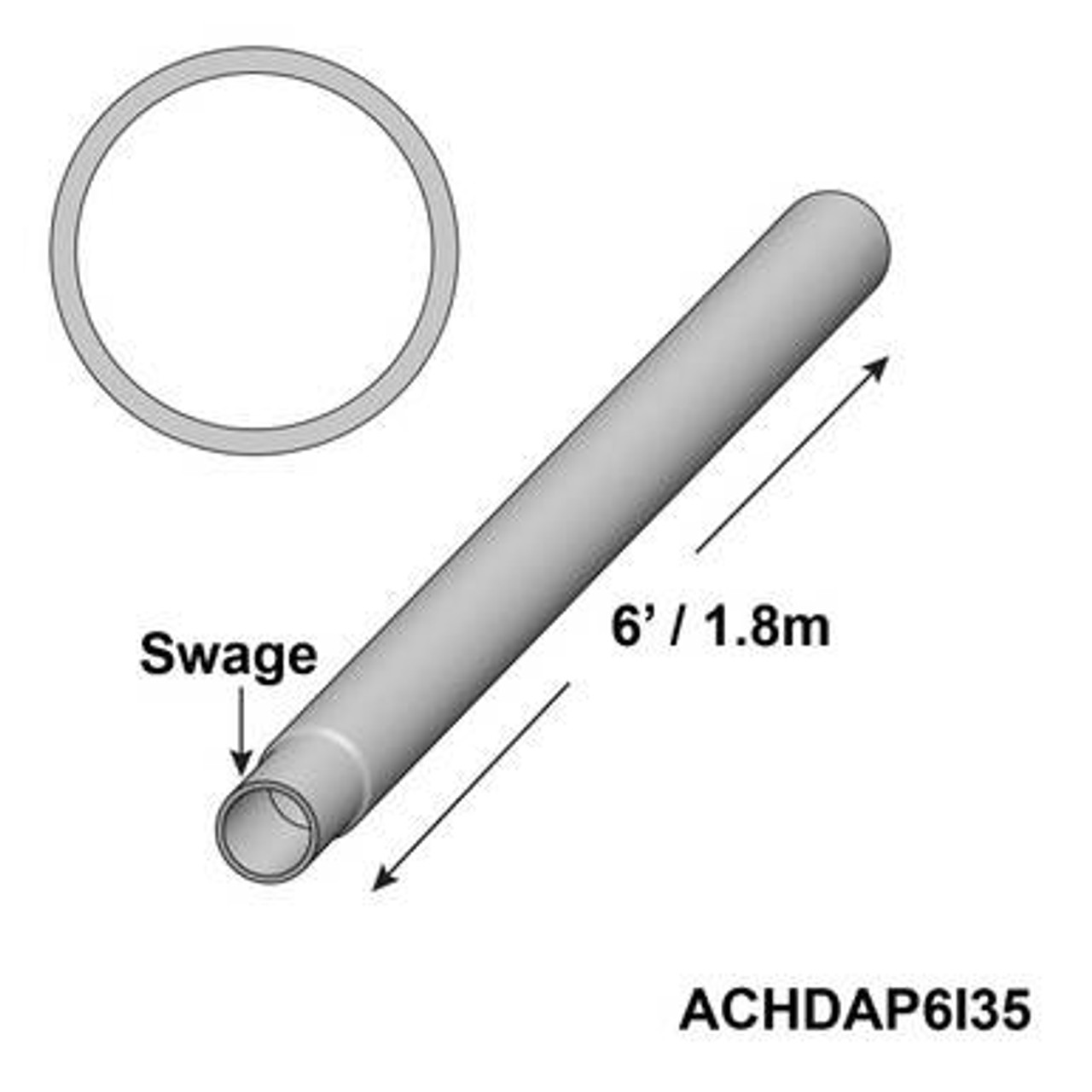

6' Heavy Duty Aluminum Insert
The 6' Heavy Duty Aluminum Insert is used to expand the length of a sectional center pole. This insert is compatible with CELINA's 3 1/5"O.D. Center Poles. All inserts have a 6" swaged end that fits within the top piece, similar to the swage on the bottom piece. Having sectional, swaged poles eliminates the hassles and dangers associated with transporting long single-piece poles.
This piece is the center of a heavy duty pole:
- Pole Top: 8' - with 10" top pin
- Pole Insert: 1' - with 6" swaged top
- Pole Bottom: 8' - with 6" swaged top
- Total Height of Pole: 17' (3 1/2" diameter)
This insert is used with the 60' and 80' wide Classic Series Pole Tents that have the standard 7' leg height, and the 40' wide Premiere I & Premiere II Series Pole Tents that have an 8' leg height.
|Aluminum Pole Specifications|
