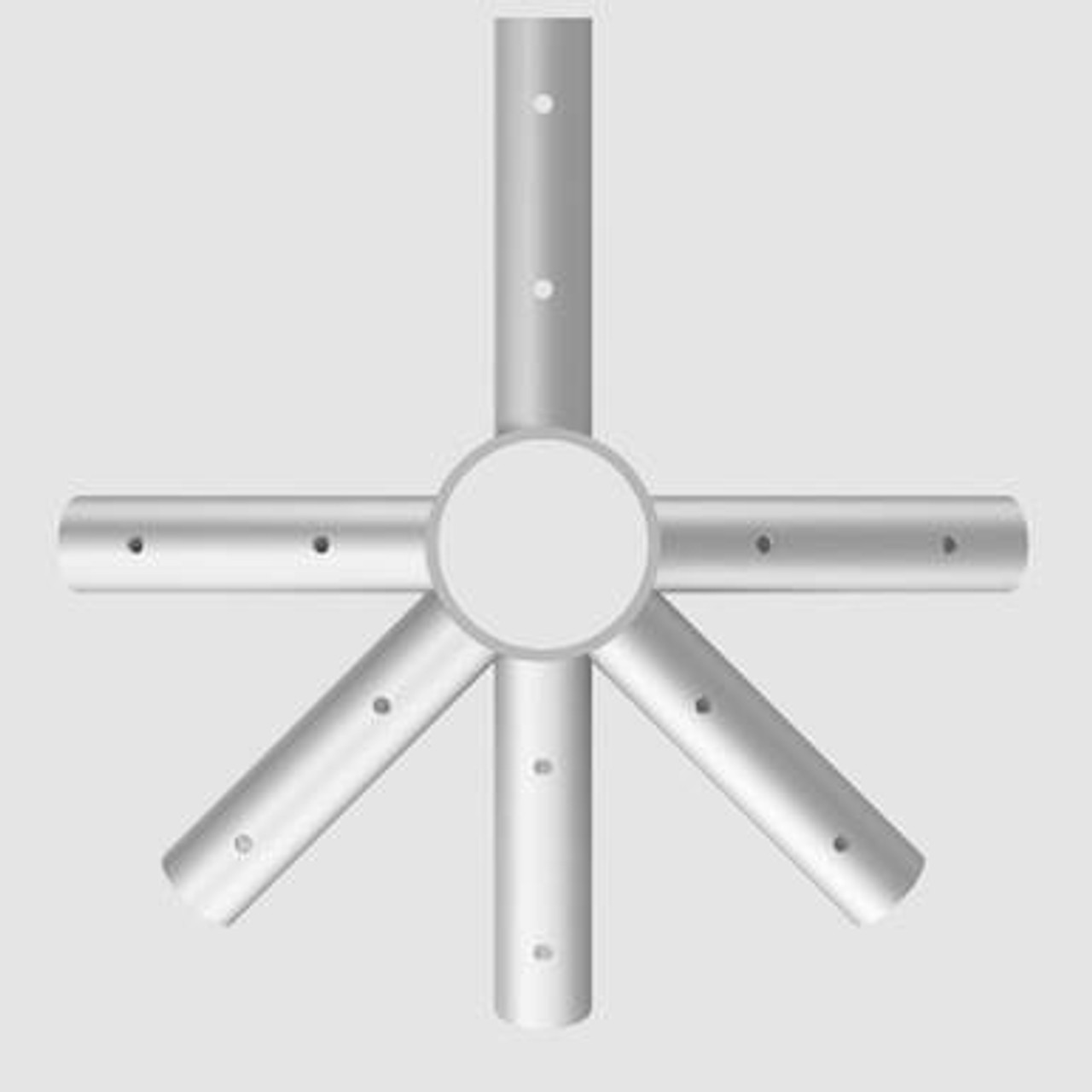

6 Way Crown

6 Way Crown Frame Tent Fitting

The 6 Way Crown is a critical frame tent fitting used in West Coast style frame tent systems to connect multiple structural components at the peak of the tent. Designed for professional tent installation, this fitting serves as a central connection point that links rafters and ridge components, helping form the overall shape and stability of the structure.

Commonly used in 20', 30', and 40' wide rectangular frame tents, the 6 way crown plays a key role in maintaining alignment across the frame. For event rental companies and install crews, having reliable crown fittings ensures consistent setup, proper load distribution, and long-term durability across repeated installations.

Why This Crown Fitting Matters

In frame tent systems, the crown fitting is where structural forces converge. A properly manufactured 6 way crown ensures that rafters and ridge connections remain secure and aligned, reducing stress on the frame and improving overall performance during use. This is especially important in large-scale tent installation where structural consistency directly impacts safety and efficiency.

Using the correct crown fitting also helps streamline setup and teardown workflows, allowing crews to assemble frames quickly without misalignment or connection issues.

Key Features

• Designed for West Coast style frame tent systems
• Used in 20', 30', and 40' wide rectangular frame tents
• Six connection points allow multiple frame components to join at the crown
• Connects rafters and ridge components to form the tent peak
• Constructed from 1.25" schedule 40 steel pipe for strength and durability
• Zinc-plated finish helps resist corrosion in outdoor environments
• Designed for repeat use in rental and event applications
• Supports consistent alignment and structural integrity during setup

How to Use and Install

1. Position the Crown Fitting

Place the 6 way crown at the designated peak location within the frame layout. Ensure the fitting is oriented correctly so each protrusion aligns with the corresponding rafters and ridge direction.

2. Connect Rafters

Slide the rafter tubing onto the crown protrusions and secure each connection using appropriate pins. Proper alignment is essential to maintain frame integrity during tent installation.

3. Attach Ridge Components

Connect the ridge pole or spreader components to the designated protrusion on the crown. This connection helps maintain the tent's structural shape across its length.

4. Secure All Connections

Ensure all connection points are properly pinned and tightened. Double-check alignment before proceeding with additional frame assembly.

5. Continue Frame Assembly

Once the crown is secured, continue assembling the remaining frame components following standard tent setup procedures.

Specifications

• Product Type: 6 way crown fitting
• Compatibility: West Coast style frame tent systems
• Tent Sizes: 20', 30', and 40' wide rectangular tents
• Material: 1.25" schedule 40 steel pipe
• Finish: Zinc plated
• Outside Diameter: 1.656"
• Inside Diameter: 1.38"
• Wall Thickness: 0.14"
• Strength: 45,000 PSI
• Weight: 8.20 lbs
• SKU: F056WC

Compatibility and Important Notes

• Designed specifically for frame tent systems, not pole tents
• Used in pairs within most frame tent configurations
• Must match the tubing size and system type for proper fit
• This is a replacement or component part only, not a complete frame system
• Ensure all connections are properly secured during installation for safety

Ideal For

• Event rental companies replacing worn or damaged crown fittings
• Frame tent installation and repair projects
• Crews maintaining large tent inventories
• Custom tent builds requiring reliable connection components
• Operations focused on efficient, repeatable tent setup workflows
