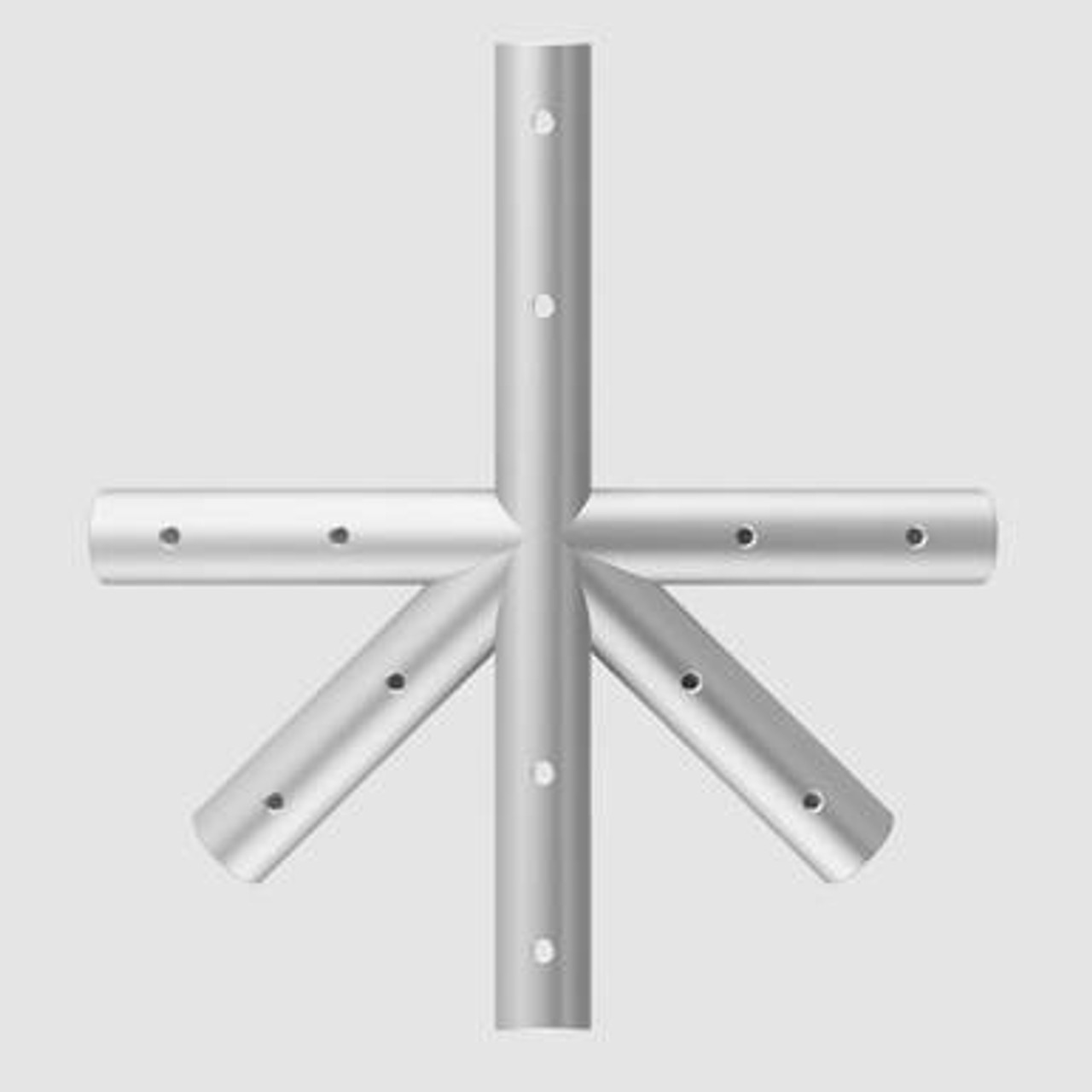

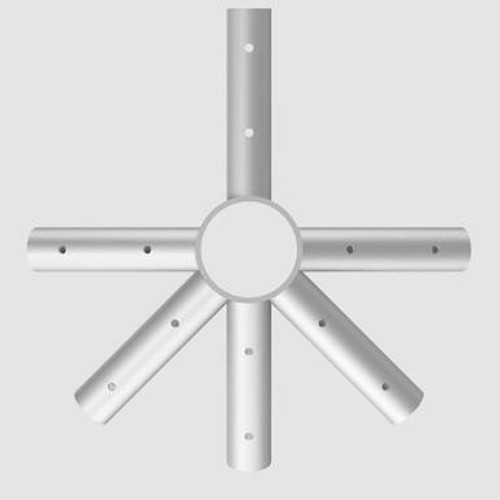

6 Way Hip Joint

6 Way Hip Joint Frame Tent Fitting

The 6 Way Hip Joint is a critical structural fitting used in 40-foot wide Classic Frame tent systems to connect key frame components along the hip rafters. Designed for professional event rental companies and installation crews, this fitting ensures proper alignment between the crown, rafters, and perimeter frame, supporting a stable and efficient tent installation.

Positioned at the midpoint of the hip rafters, the 6 way hip joint connects tubing that runs from the crown fittings down to the corner and side tee fittings along the tent perimeter. This connection point plays a key role in maintaining structural continuity across the entire frame, especially in larger event setups where consistent load distribution is essential.

Why This Hip Joint Matters

In a frame tent system, the hip rafters carry load from the peak down toward the perimeter. The 6 way hip joint ensures these connections are secure and properly aligned, helping distribute weight evenly across the structure. This reduces stress on individual frame components and improves overall stability during both setup and use.

For crews focused on efficiency and repeatable builds, using the correct hip joint fitting minimizes installation issues, improves frame alignment, and supports long-term durability in high-demand rental environments.

Key Features

• Designed for 40' wide Classic Frame tent systems
• Connects tubing between crown fittings and perimeter frame components
• Located at the midpoint of hip rafters for structural support
• Features six connection points for multi-directional frame integration
• Constructed from 1.25" schedule 40 steel pipe for durability
• Zinc-plated finish helps resist corrosion in outdoor environments
• Supports even load distribution across the tent frame
• Designed for repeated use in rental and event applications

How to Use and Install

1. Identify Hip Rafter Position

Locate the midpoint along the hip rafters where the joint will be installed. Proper placement is critical for maintaining structural alignment.

2. Connect Frame Tubing

Attach the frame tubing from the crown and perimeter sections into the six connection points. Ensure each section is aligned correctly before securing.

3. Secure All Connections

Use appropriate pins or fasteners to lock each connection point into place. This ensures the joint remains stable during installation and use.

4. Complete Frame Assembly

Once all hip joints are installed, continue assembling the remaining frame structure. Verify alignment across all sections before raising the tent.

Specifications

• SKU: F106WHJ
• Weight: 9.00 lbs
• Material: 1.25" schedule 40 steel pipe
• Finish: Zinc plated
• Outside Diameter: 1.656"
• Inside Diameter: 1.38"
• Wall Thickness: 0.14"
• Strength: 45,000 PSI
• Compatibility: 40' wide Classic Frame tent systems

Compatibility and Important Notes

• Designed specifically for Classic Frame tent systems
• Used in 40' wide frame tent configurations
• Installed at the midpoint of hip rafters
• Functions as a connection component only, not a standalone structure
• Requires compatible frame tubing and pins for proper installation

Ideal For

• Event rental companies maintaining frame tent inventory
• Install crews performing large-scale tent installation and teardown
• Replacement of worn or damaged hip joint fittings
• Frame tent systems requiring consistent alignment and load distribution
• Operations focused on durability, safety, and efficient setup workflows
