7' x 20' White Royalty Sidewall

7 x 20 White Royalty Sidewall for Premium Tent Enclosures

7 x 20 White Royalty Sidewall is a premium tent sidewall designed to deliver maximum coverage, privacy, and weather protection for professional event installations. Constructed from 16 oz block-out vinyl, this sidewall does not allow light to pass through, creating a clean, enclosed perimeter that enhances presentation and comfort for guests.

Designed for event rental companies, venues, and install crews, the Royalty Sidewall is built for efficiency and compatibility. Its solid white finish pairs seamlessly with Classic and other tent styles, while the construction details support fast setup, reliable connections, and improved performance in wind and rain.

Why Block-Out Royalty Sidewalls Matter

Standard sidewalls can allow light bleed and visual distractions from outside the tent. Block-out vinyl sidewalls solve this by fully enclosing the space, which is especially important for formal events, controlled lighting environments, and situations where privacy is required. As a premium-grade option, Royalty Sidewalls also help elevate the overall look of the tent installation.

Key Features

• Premium 16 oz block-out vinyl construction
• Does not allow light to pass through for full enclosure
• Clean white finish for formal and professional events
• Compatible with most manufacturers' tent systems
• Color-coded attachment tabs for efficient installation
• Side release buckles along vertical edges for wall-to-wall connection
• Designed to reduce wind and rain intrusion when connected properly

How the 7 x 20 Royalty Sidewall Is Used

Step 1: Attach to the Rope Line

Secure the sidewall to the tent rope line using spring clips attached through the built-in tabs. The tabs are color coded based on sidewall length to help crews quickly identify correct placement.

Step 2: Align the Panel

Position the 7 x 20 panel evenly along the tent bay. Proper alignment helps ensure a smooth appearance and effective overlap with adjacent sidewalls.

Step 3: Connect Adjacent Sidewalls

Use the side release buckles along the vertical edges to connect this sidewall to neighboring panels. This connection creates a tighter seal that improves resistance to wind and rain.

Step 4: Secure the Bottom Edge

Anchor the bottom edge according to the installation requirements using compatible staking or weighting methods. Proper bottom anchoring improves stability and overall performance.

Step 5: Final Inspection

Check that all clips, buckles, and attachment points are secure. Adjust as needed to ensure the sidewall hangs evenly and maintains a consistent seal.

Specifications

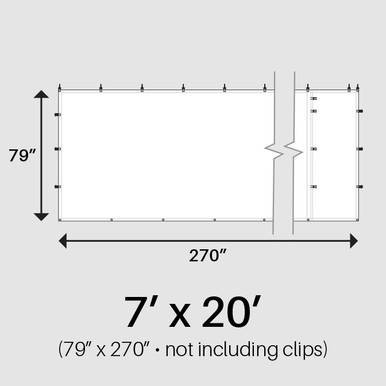

• Size: 7 foot x 20 foot
• Material: 16 oz block-out vinyl
• Color: White
• Light Transmission: None
• Top Attachment: Tabs for spring clip connection
• Vertical Connections: Side release buckles

Compatibility

• Frame tents and pole tents with rope line sidewall systems
• Most manufacturers' tent structures
• Sidewall configurations requiring 20 foot bay coverage

Customization Options

• Available to match existing tent colors when ordered together
• Can be custom printed with logos, branding, or graphics
• Supports unified tent appearance across large installations

What Is Included and What Is Not

• Included: One 7 x 20 white royalty sidewall with tabs and buckles
• Not Included: Spring clips, stakes, weights, rope line, or additional sidewall panels

Ideal For

• Weddings and formal events requiring full enclosure
• Corporate functions and branded environments
• Event rental company premium sidewall inventory
• Installations where light control and privacy are priorities

Usage Notes

The 7 x 20 White Royalty Sidewall is intended for professional tent installations where appearance, enclosure, and weather resistance are critical. Always connect adjacent sidewalls using the built-in buckles to improve performance against wind and rain. While compatible with most tent systems, verify attachment methods before installation. Regular inspection of tabs and buckles helps maintain reliable performance across repeated setups and teardowns.
