Ridge Support Bracket

Ridge Support Bracket for West Coast Style Frame Tent Systems

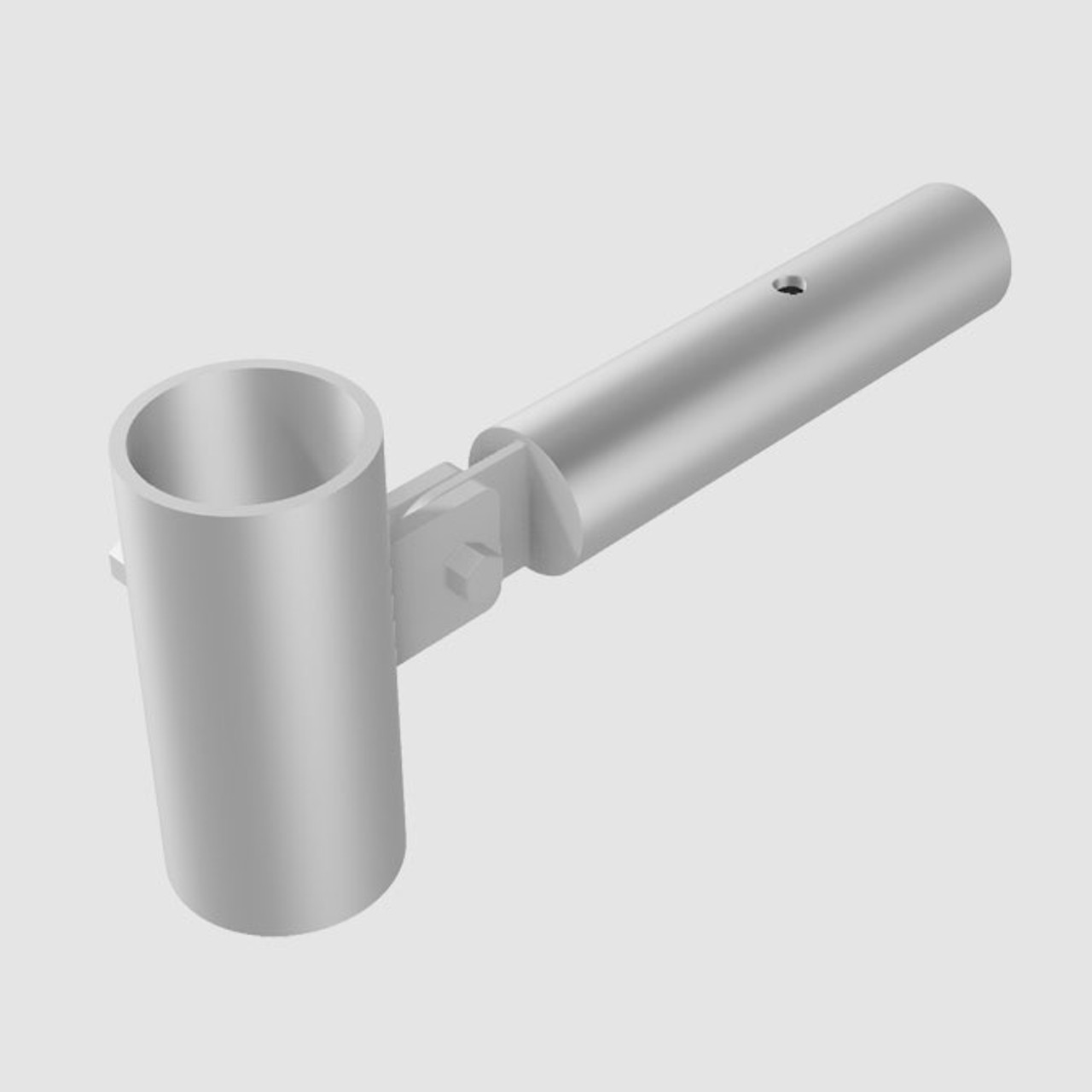

The Ridge Support Bracket is a specialized frame tent fitting designed to provide additional structural support along the ridge line of West Coast Style frame tent systems. Built for professional event rental companies and installation crews, this component reinforces long-span tent setups by stabilizing the connection between rafters and ridge spreaders.

Used in pairs, this bracket slides over larger diameter tubing and connects to support rafters using a hinged mechanism. This design allows for controlled positioning during tent installation while ensuring the frame maintains proper alignment and tension across the structure. Whether you are working on extended frame tents or reinforcing high-load areas, this fitting plays a key role in maintaining structural consistency.

Why This Ridge Support Bracket Matters

As tent spans increase, maintaining rigidity across the ridge becomes more important. The Ridge Support Bracket helps distribute load and reduce flex in the frame, improving overall stability during both setup and use. This is especially critical in large event setups where multiple ridge sections must remain aligned under tension.

For rental operations, adding ridge support brackets enhances the durability of your frame system and helps reduce wear on primary structural components over time.

Key Features

• Designed for West Coast Style frame tent systems
• Used in pairs to provide additional ridge support
• Slides over 1.75 inch to 2 inch diameter tubing for flexible positioning
• Hinged connection attaches to support rafters and secures with bolts
• Free-floating base allows easy adjustment during installation
• Constructed from 1.25 inch schedule 40 steel pipe for strength
• Zinc plated finish provides corrosion resistance
• Supports improved alignment and load distribution across the frame

How to Use and Install

1. Position the Brackets on Ridge Tubing

Slide each ridge support bracket onto the appropriate ridge or rafter tubing. The larger opening allows the bracket to move freely until properly positioned.

2. Align with Support Rafters

Rotate the hinged portion of the bracket toward the support rafter tubing. Proper alignment ensures the bracket will reinforce the frame without creating stress points.

3. Secure the Connection

Attach the hinged portion to the rafter using bolts or standard fastening hardware. Ensure all connections are tight and properly seated.

4. Install in Pairs

Use two brackets connected by a spreader or positioned across the ridge to provide balanced support. This pairing helps maintain even load distribution across the structure.

5. Complete Tent Assembly

Continue with standard tent installation procedures, ensuring all frame components are aligned and secured before raising and tensioning the structure.

Specifications

• Fitting Type: Ridge Support Bracket
• Application: West Coast Style frame tent systems
• Material: Steel construction
• Pipe Type: 1.25 inch schedule 40 steel pipe
• Compatible Tubing Diameter: 1.75 inch to 2 inch
• Finish: Zinc plated for corrosion resistance
• Installation: Free-floating slide with hinged connection

Compatibility and Important Notes

• Designed specifically for West Coast Style frame tents
• Used in pairs for proper structural reinforcement
• Compatible with standard ridge and rafter tubing sizes
• Not a standalone component, must be used within a complete frame system
• Ensure proper alignment and secure fastening during installation

Ideal For

• Event rental companies reinforcing long-span tent structures
• Install crews working on large or extended frame tent setups
• Maintenance and repair of existing tent inventory
• Applications requiring additional ridge support and stability
• Operations focused on durability, safety, and efficient tent installation
