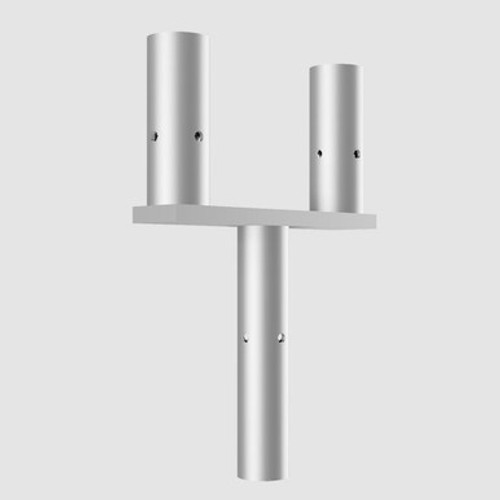

Water Gutter Fitting

Water Gutter Fitting for Frame Tent Connection and Drainage

The Water Gutter Fitting is a specialized frame tent hardware component designed to connect two adjacent frame tents while directing water away from the seam between them. Built for professional event rental companies and installation crews, this fitting allows you to create a watertight connection between side-by-side tent setups, improving both functionality and guest comfort during outdoor events.

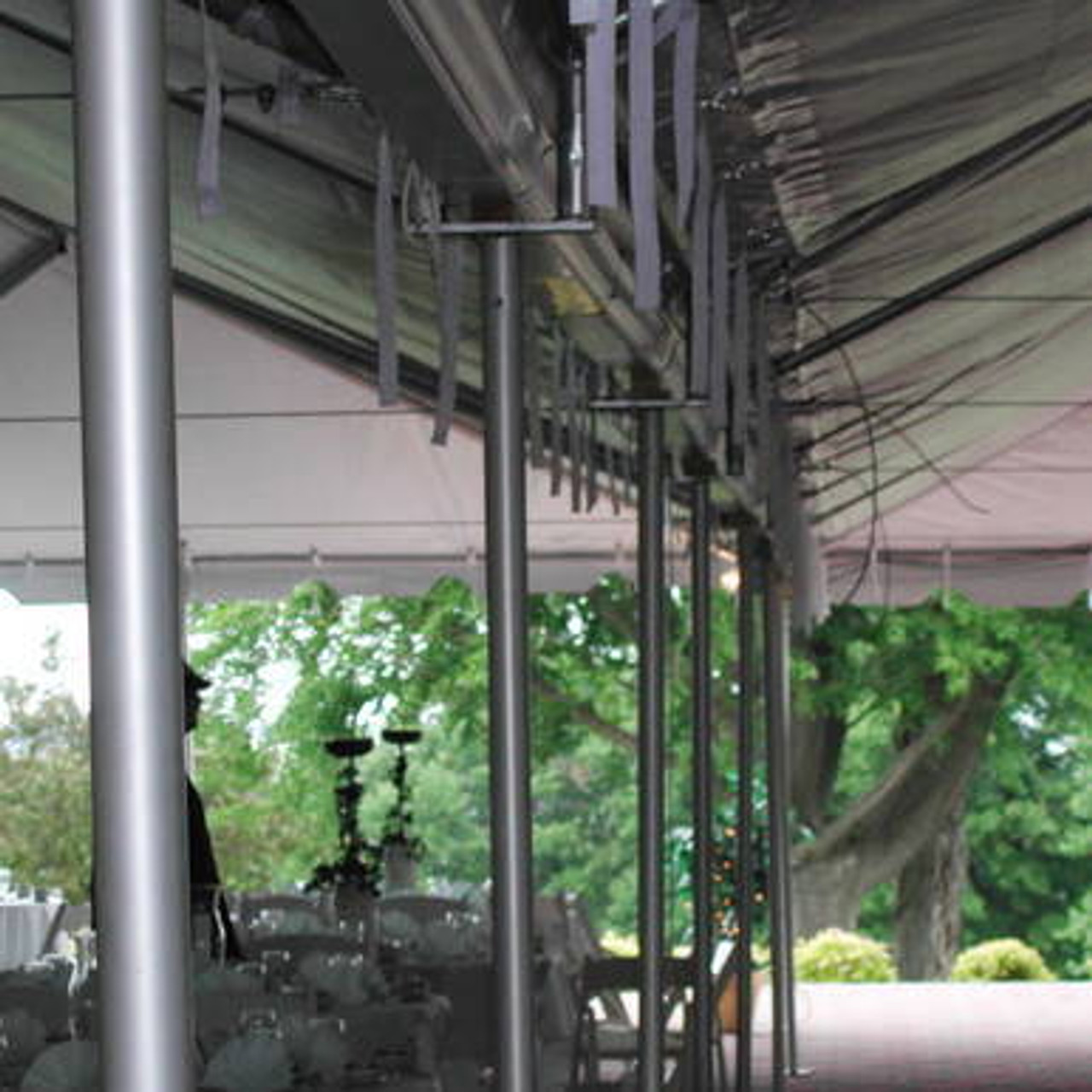

When installing multiple tents next to each other, water runoff between the tent tops can become a major issue. This fitting provides a secure attachment point for a standard water gutter, allowing rainwater to flow away from the connection instead of dripping into the covered space. It integrates directly with compatible frame tent systems, making it a practical solution for multi-tent layouts, large-scale event setups, and extended coverage designs.

Why This Water Gutter Fitting Matters

In event environments where weather conditions can change quickly, controlling water flow is critical. This frame tent water gutter fitting helps prevent water intrusion between connected tents, reducing the risk of pooling, drips, and disruptions during an event. By creating a controlled drainage path, it improves the overall performance of your tent installation while maintaining a clean and professional setup.

For rental operations, this fitting also adds versatility by allowing multiple tents to function as a single continuous structure without compromising weather protection.

Key Features

• Designed to connect two frame tents side by side using a shared gutter system
• Provides a secure attachment point for standard water gutters
• Helps direct water away from the seam between adjacent tents
• Constructed from steel with zinc plating for durability and corrosion resistance
• Fits onto a single tent leg tube while supporting two perimeter frame connections
• Supports efficient tent installation in multi-tent layouts
• Improves drainage control during outdoor event setups
• Designed for repeated use in rental and event environments

How to Use and Install

1. Position Adjacent Tent Frames

Set up the two frame tents side by side, ensuring proper alignment between the structures where the gutter will be installed.

2. Install the Gutter Fitting

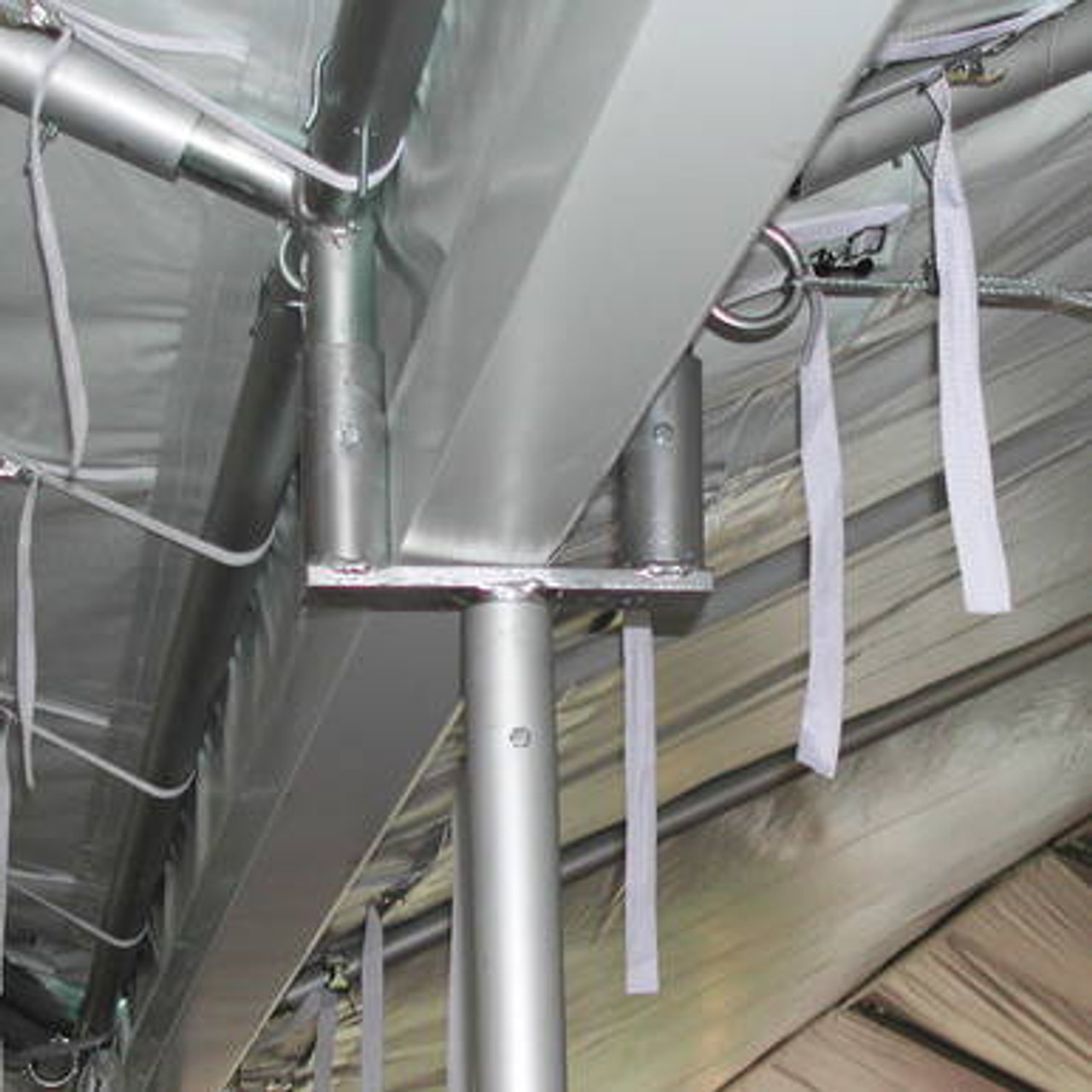

Attach the water gutter fitting to the shared leg position. The fitting branches at the top to connect to both tent frames, creating a stable connection point.

3. Add the Water Gutter

Place a compatible gutter, typically a 5.5-inch standard water gutter, between the connection points. Position the tent valances so they rest inside the gutter to guide water flow.

4. Adjust for Proper Drainage

Ensure the gutter is angled correctly to allow water to flow in the desired direction. Shims can be used beneath the fittings to control water runoff if needed.

5. Complete Tent Setup

Finish the tent installation by securing all frame components and anchoring the structures. Verify that the gutter system is properly positioned before the event begins.

Specifications

• Material: Steel construction with zinc plating
• Pipe Type: 1.25 inch schedule 40 steel pipe
• Outside Diameter: 1.656 in
• Inside Diameter: 1.38 in
• Wall Thickness: 0.14 in
• Weight: 5.0 lbs
• Strength: 45000 PSI
• Gutter Compatibility: Designed for use with 5.5 inch standard water gutter

Compatibility and Important Notes

• Designed for use with Classic Frame tent systems
• Requires a compatible water gutter (not included)
• Fitting extends lower than standard fittings and may require a shorter leg tube
• Recommended to use a leg approximately 7 inches shorter than standard for proper fit
• Intended for connecting two tents, not for standalone use

Ideal For

• Event rental companies connecting multiple frame tents
• Outdoor events requiring water management between tent seams
• Festivals, weddings, and large-scale event layouts
• Install crews focused on efficient tent installation and drainage control
• Applications where weather protection and clean presentation are critical
