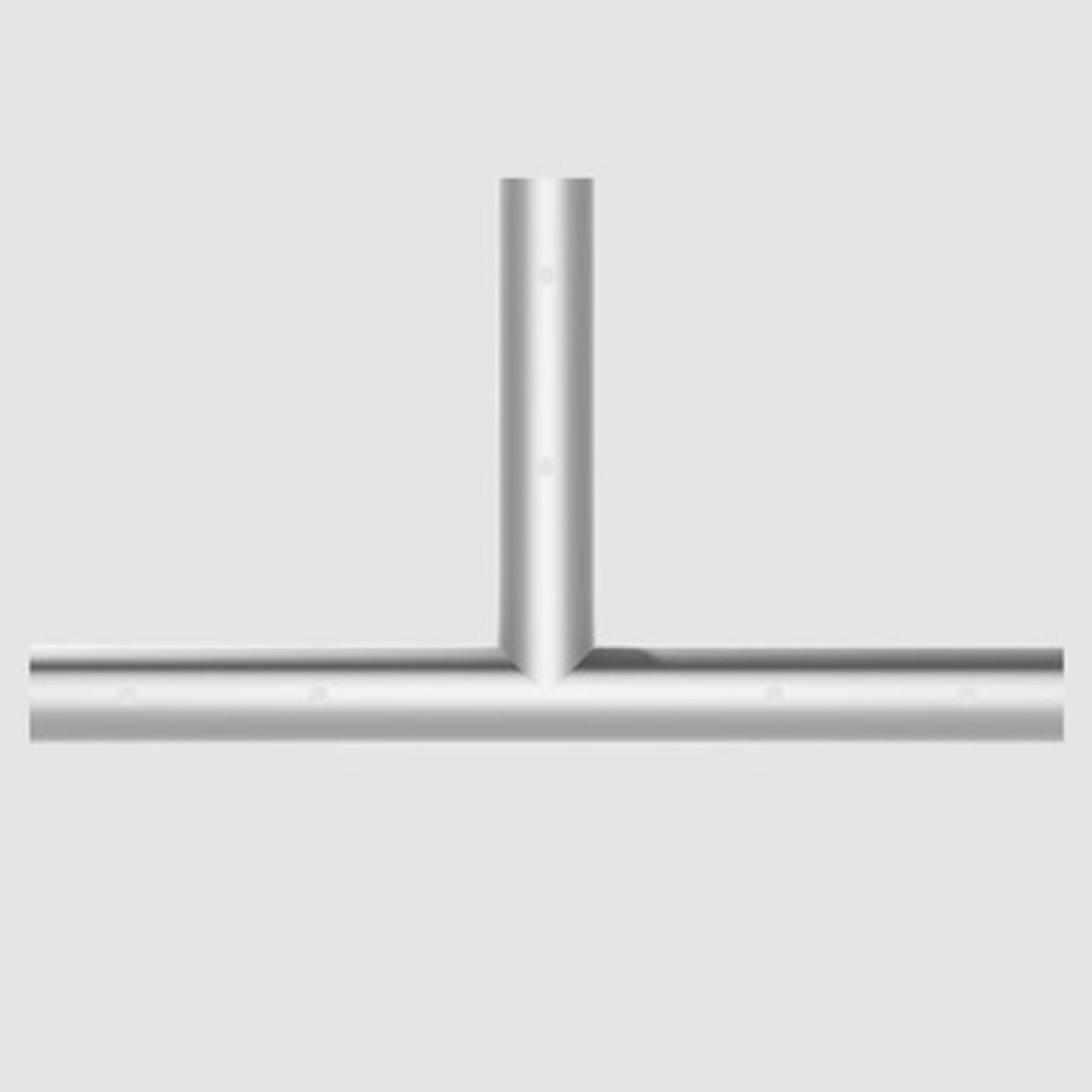

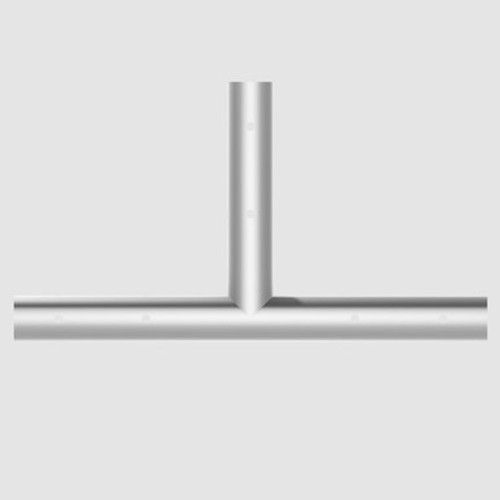

3 Way Flat Tee

3 Way Flat Tee Frame Tent Fitting

The 3 Way Flat Tee is a specialty frame tent fitting designed to add additional support to frame tent systems and offset leg tube positions during installation. Built for professional event rental companies and install crews, this component helps improve structural flexibility while maintaining alignment across the frame.

Commonly used in larger Classic Series and Gable Frame tent configurations, the 3 way flat tee connects spreaders and support tubing in a flat plane. This allows crews to reinforce sections of the frame or adjust layout configurations without compromising structural integrity. It is also frequently used in custom applications such as banner supports, signage frames, or additional bracing systems.

Why This Flat Tee Matters

In complex tent installations, standard fittings do not always provide the flexibility needed for reinforcement or layout adjustments. The 3 way flat tee allows crews to introduce additional support points exactly where needed, helping distribute loads more evenly and maintain frame stability.

For rental operations and install teams, this fitting improves efficiency by enabling modular adjustments without requiring major changes to the overall structure. It is especially valuable in large-scale setups where added bracing or offset connections are necessary.

Key Features

• Designed as a flat three-way connection fitting for frame tent systems
• Used to add additional supports and reinforce frame structures
• Allows for offset leg tube positioning in complex layouts
• Compatible with West Coast style frame tent fittings and tubing
• Constructed from 1.25" schedule 40 steel pipe for durability
• Zinc-plated finish helps resist corrosion in outdoor environments
• Designed for repeated use in rental and event applications
• Supports custom builds such as banner frames and structural add-ons

How to Use and Install

1. Identify Support Location

Determine where additional support or offset connections are needed within the frame tent structure. This is typically along spreaders or perimeter tubing.

2. Connect Frame Tubing

Insert the appropriate frame tubing into each of the three connection points. Ensure all tubing aligns correctly within the same plane.

3. Secure Connections

Use compatible pins or fasteners to secure each connection point. Proper fastening is critical for maintaining structural integrity during tent installation.

4. Continue Frame Assembly

Once installed, proceed with the remaining frame assembly. Verify alignment and stability before raising the structure.

Specifications

• SKU: F173WFT
• Weight: 4.00 lbs
• Material: 1.25" schedule 40 steel pipe
• Finish: Zinc plated
• Outside Diameter: 1.656"
• Inside Diameter: 1.38"
• Wall Thickness: 0.14"
• Strength: 45,000 PSI
• Compatibility: West Coast style frame tent systems

Compatibility and Important Notes

• Compatible with Classic Series and Gable Frame tent systems
• Designed for use with West Coast style tubing and fittings
• Functions as a support and connection component only
• Used in larger tent setups and custom structural applications
• Pins or fasteners required for installation are not included

Ideal For

• Event rental companies managing large frame tent systems
• Install crews adding reinforcement or custom support points
• Large gable frame tent installations
• Banner frames, signage structures, and custom builds
• Operations requiring flexible and durable frame tent components
