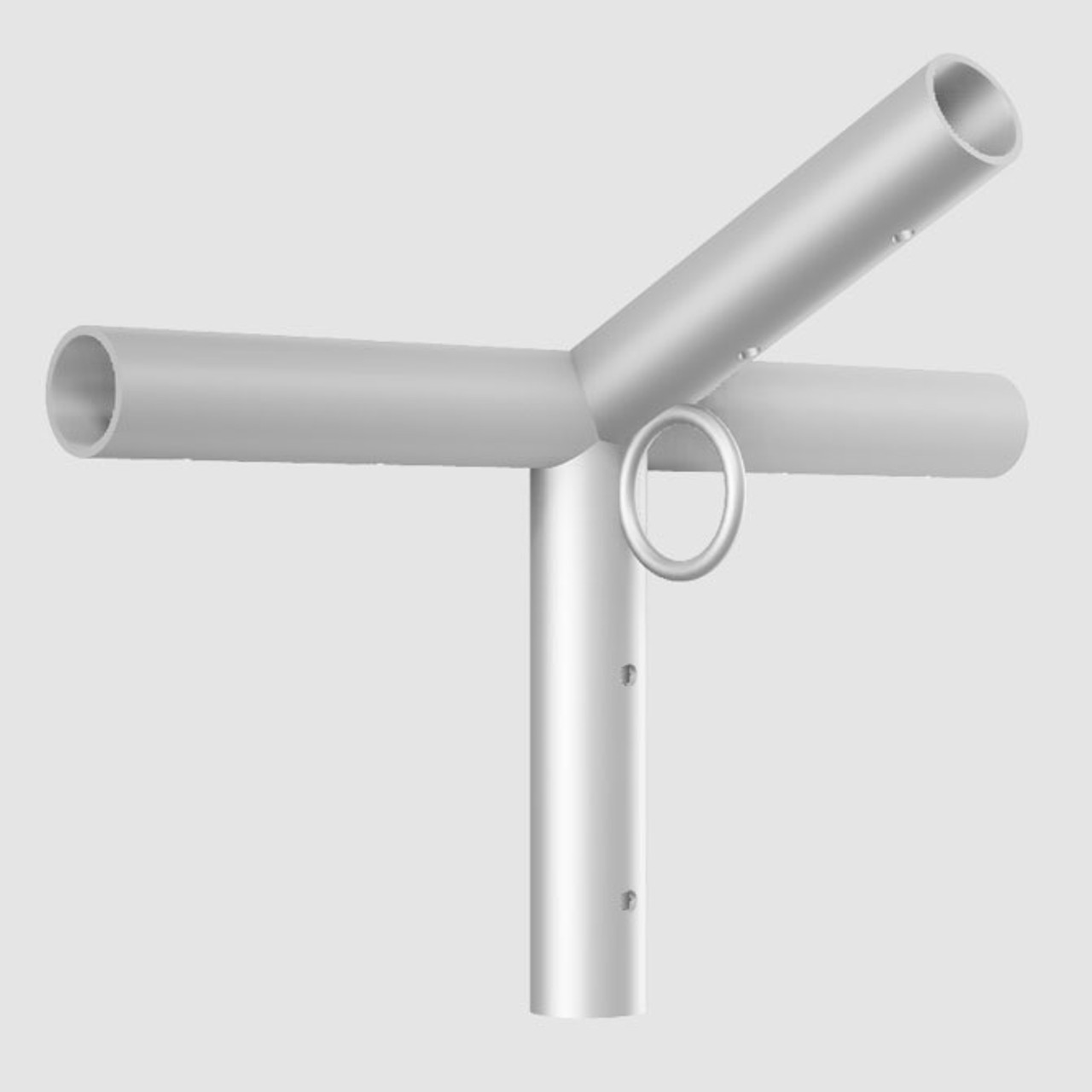

Side Tee with Ring

Side Tee with Ring for Classic Frame Tent Systems

The Side Tee with Ring is a critical frame tent fitting used in Classic Frame tent systems to connect perimeter tubing, rafters, and support components while providing an attachment point for tent cables. Designed for professional event rental companies and installation crews, this fitting plays a key role in maintaining structural alignment and overall frame integrity during tent installation and teardown.

Manufactured from 1.25 inch schedule 40 steel pipe and finished with a zinc coating, this side tee fitting is built for durability and repeated use in demanding environments. The integrated ring allows for secure cable connections, helping stabilize the structure and improve tension distribution across the tent frame. Whether you are assembling a new frame or replacing worn components, this fitting supports efficient, reliable setup in the field.

Why This Fitting Matters

In frame tent systems, connection points determine how well the structure performs under load. The Side Tee with Ring ensures that perimeter pipes and rafters remain properly aligned while also providing a secure anchor point for frame cables. This helps maintain consistent tension across the tent, reducing stress on individual components and improving overall stability during use.

For installation crews, using the correct fittings reduces setup time and minimizes the risk of misalignment or structural issues. It also ensures compatibility within West Coast style frame systems, making it easier to maintain and scale tent inventory.

Key Features

• Connects perimeter tubing, rafters, and frame components in Classic Frame tent systems
• Integrated steel ring for cable attachment to improve structural stability
• Constructed from 1.25 inch schedule 40 steel pipe for strength and durability
• Zinc-plated finish helps resist corrosion and extend service life
• Supports proper alignment and tension distribution across the frame
• Designed for repeated use in rental and event environments
• Compatible with standard West Coast style frame tent systems

How to Use and Install

1. Position the Fitting

Place the side tee fitting at the appropriate location along the tent frame perimeter where rafters and spreaders intersect. Ensure proper orientation for all connecting components.

2. Connect Frame Tubing

Slide perimeter tubing and rafter poles onto the fitting ends. Align the holes and secure with appropriate pins to lock components in place.

3. Attach Tent Cable

Use the integrated ring to connect frame cables or tensioning systems. This helps stabilize the structure and maintain proper tension during setup.

4. Verify Alignment

Check that all connected components are properly aligned and securely fastened before continuing with the rest of the tent installation.

Specifications

• Material: 1.25 inch schedule 40 steel pipe
• Finish: Zinc plated
• Outside Diameter: 1.656 in
• Inside Diameter: 1.38 in
• Wall Thickness: 0.14 in
• Weight: 5.8 lbs
• Strength: 45,000 PSI
• SKU: F02STRING

Compatibility and Important Notes

• Designed for use with Classic Frame and West Coast style tent systems
• Functions as a connection fitting, not a standalone structural component
• Used along the perimeter to connect rafters, spreaders, and cables
• Ensure compatibility with matching pipe size and frame system before installation
• Pins, poles, and cables are not included unless specified separately

Ideal For

• Event rental companies maintaining frame tent inventory
• Replacement or repair of worn or damaged tent fittings
• Professional tent installation and teardown operations
• Large frame tent systems requiring cable-supported stability
• Crews focused on safe, efficient, and repeatable setup workflows
